MH2-Series
Horizontal Motorized Test Stand MH2 series is standard type with 500N to 2500N capacity. It is functional yet user-friendly model with easy operation. The horizontal design allows applying force horizontally. Its rugged design provides solutions for complex testing.
Feature
- Achieves high repeatability with constant testing speed and position, high rigidity, and allows applying force horizontally due to horizontal design
- Handles various testing such as durability or compression testing with digital setting of speed, counter function (number of tests to repeat), and timer function (pausing time)
- Handles a wide range of testing applications to meet your testing requirements with options such as -FA (inner linear scale)
- Enhances testing efficiency and safety with option -CN (I/O for external signals), allowing for communication for interlock and starting operation, etc.
| Special Features | |
|
High Repeatability - Constant testing speed and direction for applying compression and tensile force - Rugged design minimizes influence of deformation (0.5mm or less) |
Easy Operation - Inclined control panel for easy operation - Easy dial operation for digital value - Three testing modes to meet testing requirements |
|
High Versatility for various testing. - Ideal for durability test by setting the number of test cycles to repeat - Useful timer function for compression testing allows pausing at a set force value. (*) - The table is able to fix various attachments. - Optional functions for various purposes - Convenient frame for fixing a table and attachment. |
Functions for efficient testing - Easy setting of travel distance according to the sample size. - Automatically changes traveling and measuring speed at a set force value. (*) - Software records automatically according to stand operation.(*) |
Specifications
| Model | MH2-500N | MH2-2500N |
| Capacity | 500N | 2500N |
| Speed | Digital 10 to
300mm/min [10 - 20mm/min: by 0.5mm/min] [20 - 100mm/min: by 5mm/min] [100 - 300mm/min: by 10mm/min] |
|
| Max. height of a sample (*1) | Approx. 245mm | Approx. 340mm |

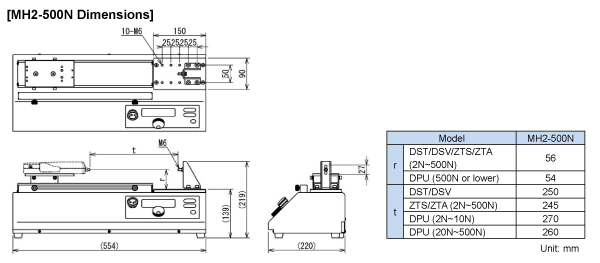

| Dimensions | Approx. W554 x D220 x H219 | Approx. W666 x D340 x H261 |
| Weight | Approx. 14kg | Approx. 27kg |
*1 Max. sample height refers to the distance between the table and the tip of force gauge measuring shaft when the head is at the top. (With up to 1000N model of ZTS/ZTA series)
| แบรนด์สินค้า | IMADA |
|---|---|
| Order No. | MH2-Series |
