MHRZ (Long Metric Threads)
Product Features
- Torque reduction is achieved from the new design and specifications.
- Tool life is dramatically improved with superb tool materials and coatings offering excellent wear resistance.
- Stable screw thread tapping in thermal refined material up to 35 HRC.
- The MHRZ roll taps can be used with water soluble cutting fluid.

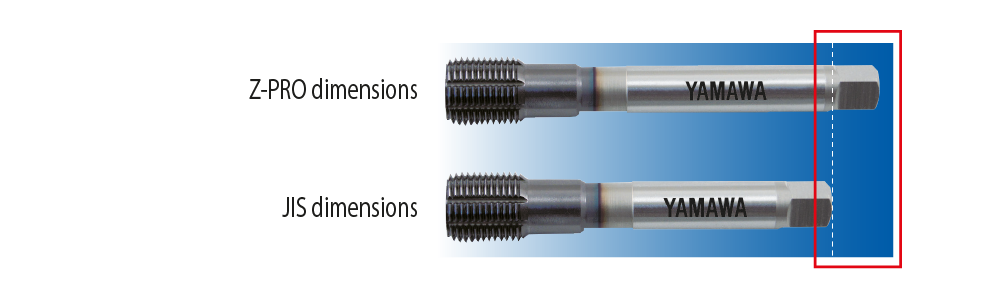

Benefits of Z-PRO dimensions
- A longer overall length enables a better supply of cutting fluid, resulting in excellent finish of internal threads.

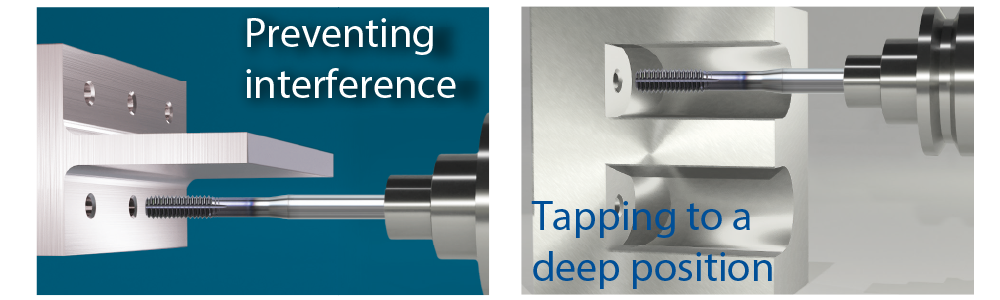

- Secures appropriate tool projection length to prevent interference with workpieces
Specification
Tapping Speeds depending on Materials
25〜35HRC
Recommended class
Segment：1J
|

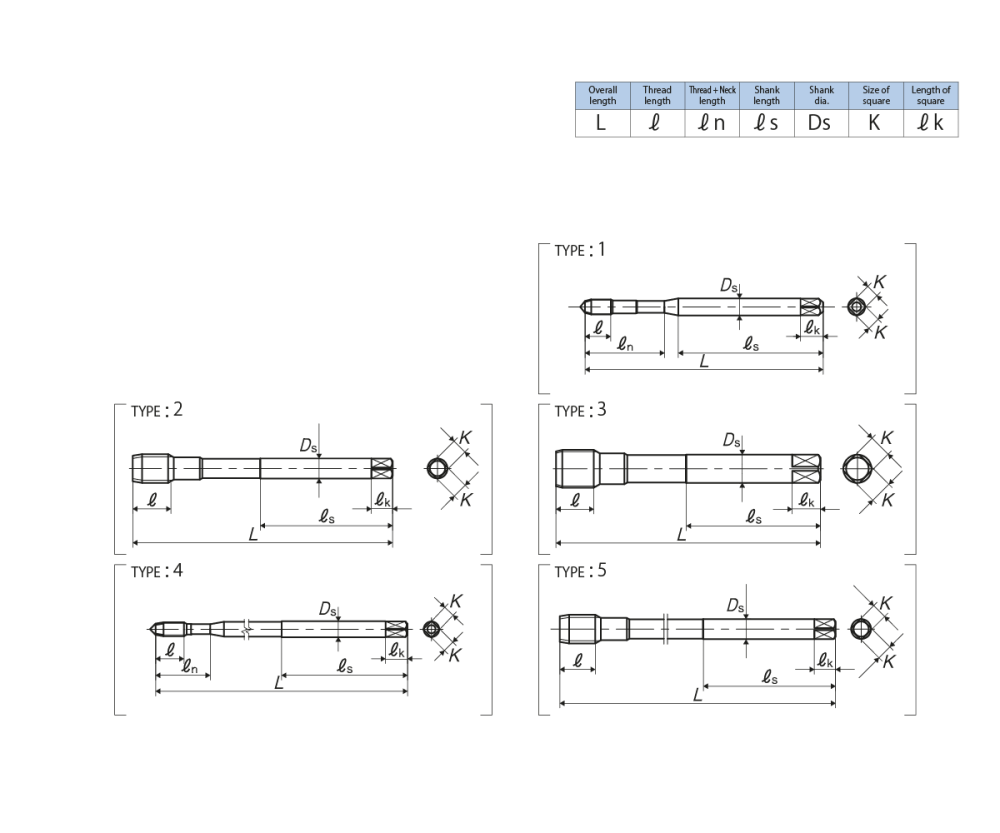

Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
Lobe |
TYPE |
|
For Long Metric Threads |
||||||||||||
|
M6×1 |
G8 |
2110101055 |
4P |
100 |
11 |
30 |
45 |
6 |
4.5 |
7 |
5 |
4 |
|
M6×1 |
G8 |
2310101055 |
4P |
150 |
11 |
30 |
45 |
6 |
4.5 |
7 |
5 |
4 |
|
M6×1 |
G8 |
2111101055 |
2P |
100 |
11 |
30 |
45 |
6 |
4.5 |
7 |
5 |
4 |
|
M6×1 |
G8 |
2311101055 |
2P |
150 |
11 |
30 |
45 |
6 |
4.5 |
7 |
5 |
4 |
|
M8×1.25 |
G8 |
2110101064 |
4P |
150 |
12 |
- |
46 |
6.2 |
5 |
8 |
6 |
5 |
|
M8×1.25 |
G8 |
2111101064 |
2P |
150 |
12 |
- |
46 |
6.2 |
5 |
8 |
6 |
5 |
|
M10×1.5 |
G8 |
2110101078 |
4P |
150 |
13 |
- |
51 |
7 |
5.5 |
8 |
8 |
5 |
|
M10×1.5 |
G8 |
2111101078 |
2P |
150 |
13 |
- |
51 |
7 |
5.5 |
8 |
8 |
5 |
|
M10×1.25 |
G8 |
2110101079 |
4P |
150 |
13 |
- |
51 |
7 |
5.5 |
8 |
8 |
5 |
|
M10×1.25 |
G8 |
2111101079 |
2P |
150 |
13 |
- |
51 |
7 |
5.5 |
8 |
8 |
5 |
|
M12×1.75 |
G8 |
2110101088 |
4P |
150 |
15 |
- |
56 |
8.5 |
6.5 |
9 |
8 |
5 |
|
M12×1.75 |
G8 |
2111101088 |
2P |
150 |
15 |
- |
56 |
8.5 |
6.5 |
9 |
8 |
5 |
|
M12×1.5 |
G8 |
2110101089 |
4P |
150 |
15 |
- |
56 |
8.5 |
6.5 |
9 |
8 |
5 |
|
M12×1.5 |
G8 |
2111101089 |
2P |
150 |
15 |
- |
56 |
8.5 |
6.5 |
9 |
8 |
5 |
|
M12×1.25 |
G8 |
2110101090 |
4P |
150 |
15 |
- |
56 |
8.5 |
6.5 |
9 |
8 |
5 |
|
M12×1.25 |
G8 |
2111101090 |
2P |
150 |
15 |
- |
56 |
8.5 |
6.5 |
9 |
8 |
5 |
|
M14×1.5 |
G9 |
2110101102 |
4P |
150 |
18 |
- |
56 |
10.5 |
8 |
11 |
8 |
5 |
|
M14×1.5 |
G9 |
2111101102 |
2P |
150 |
18 |
- |
56 |
10.5 |
8 |
11 |
8 |
5 |
|
M16×1.5 |
G9 |
2110101116 |
4P |
150 |
18 |
- |
56 |
12.5 |
10 |
13 |
8 |
5 |
|
M16×1.5 |
G9 |
2111101116 |
2P |
150 |
18 |
- |
56 |
12.5 |
10 |
13 |
8 |
5 |
Number of oil grooves: M6 = 5, M8 = 6, M10 and larger = 8
For M6 and smaller, external centers of 2 thread chamfer taps are removed.
