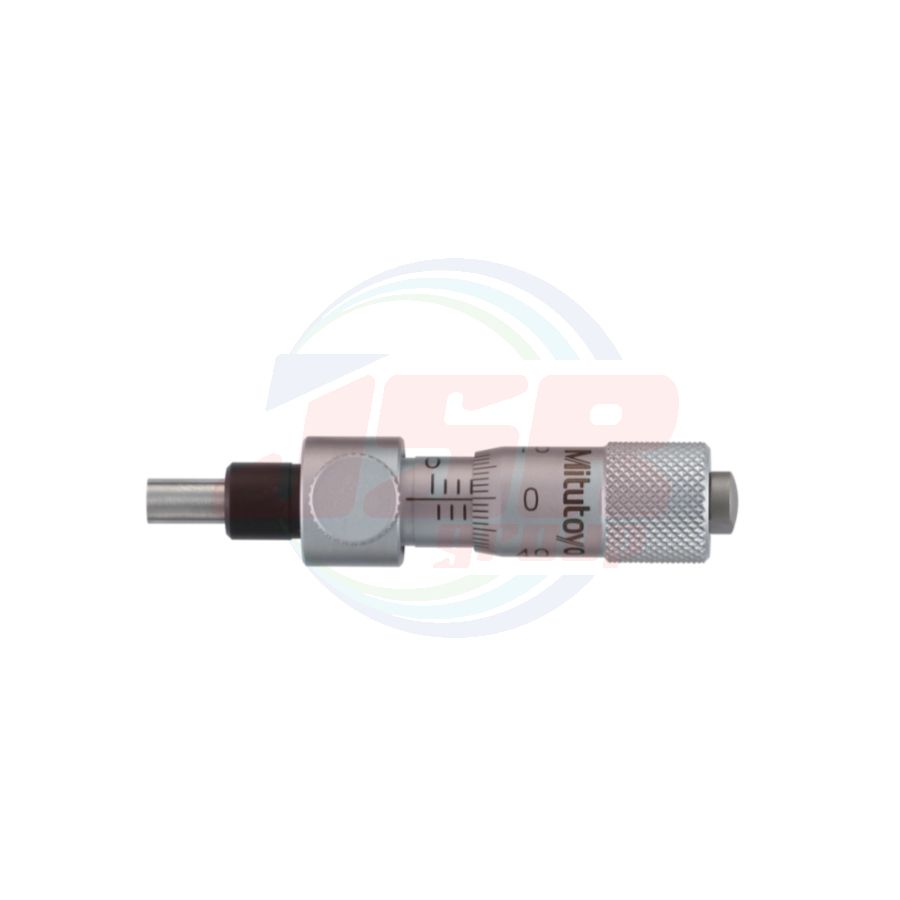

Micrometer Heads SERIES 148 — Locking-screw Type | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 1,502.28
พร้อมส่ง
SKU
1MIT-148-Locking
• This model with enhanced clamping force created by a locking screw can be reliably used on positioning equipment or instruments constantly exposed to vibration.
• Position of the locking screw is the same as the sleeve index line.
SPECIFICATIONS
Metric

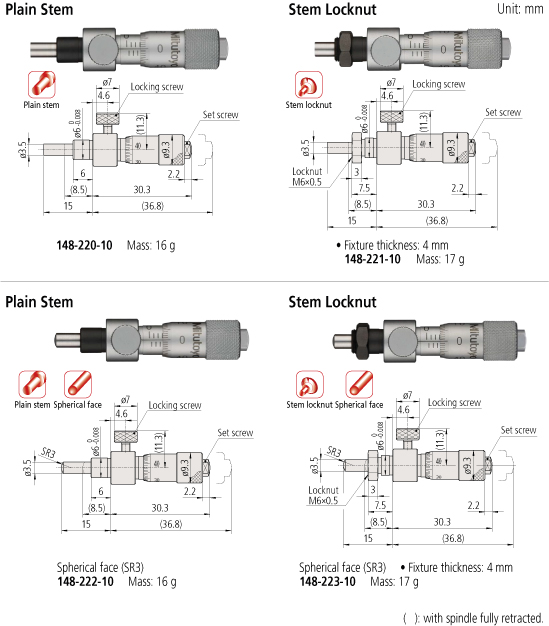

| Order No. | Range (mm) |
Graduation (mm) |
Stem dia. (mm) |
Stem | Spindle end | Graduation features |
Maximum permissible error J MPE (μm) |
| 148-220-10 | 0 - 6.5 | 0.01 | 6 | Plain | Flat | Standard | ±5 |
| 148-221-10 | W/clamp nut | ||||||
| 148-222-10 | Plain | Spherical (SR3) | |||||
| 148-223-10 | W/clamp nut | ||||||

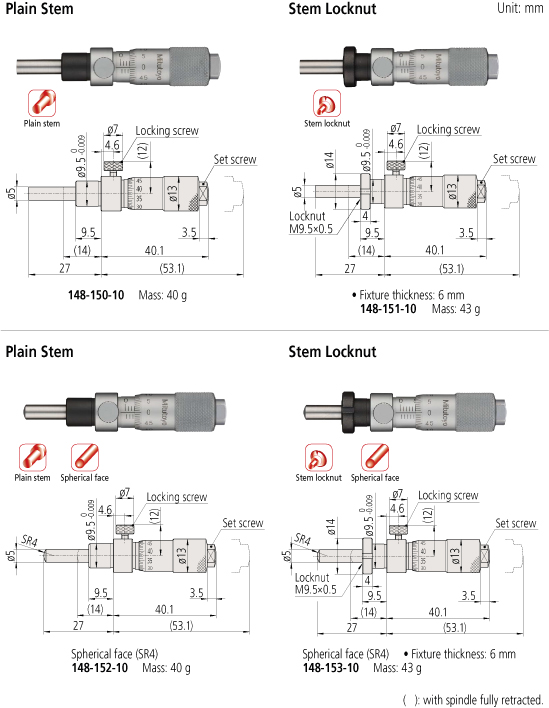

| 148-150-10 | 0 - 13 | 9.5 | Plain | Flat | ±2 | ||
| 148-151-10 | W/clamp nut | ||||||
| 148-152-10 | Plain | Spherical (SR4) | |||||
| 148-153-10 | W/clamp nut | ||||||

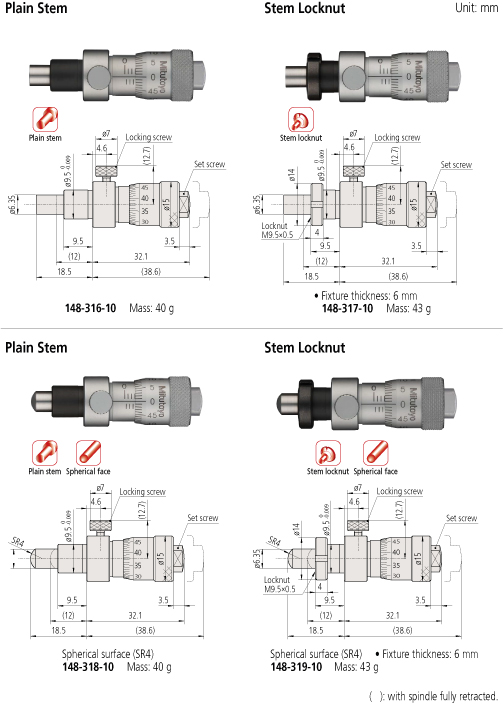

| 148-316-10 | 0 - 6.5 | Plain | Flat | ||||
| 148-317-10 | W/clamp nut | ||||||
| 148-318-10 | Plain | Spherical (SR4) | |||||
| 148-319-10 | W/clamp nut |
• Measuring face: Material / Alloy tool steel, Hardness / 60 HRC or more, Lapped
• Scale finishing: Satin-chrome plated
| แบรนด์สินค้า | MITUTOYO |
|---|
