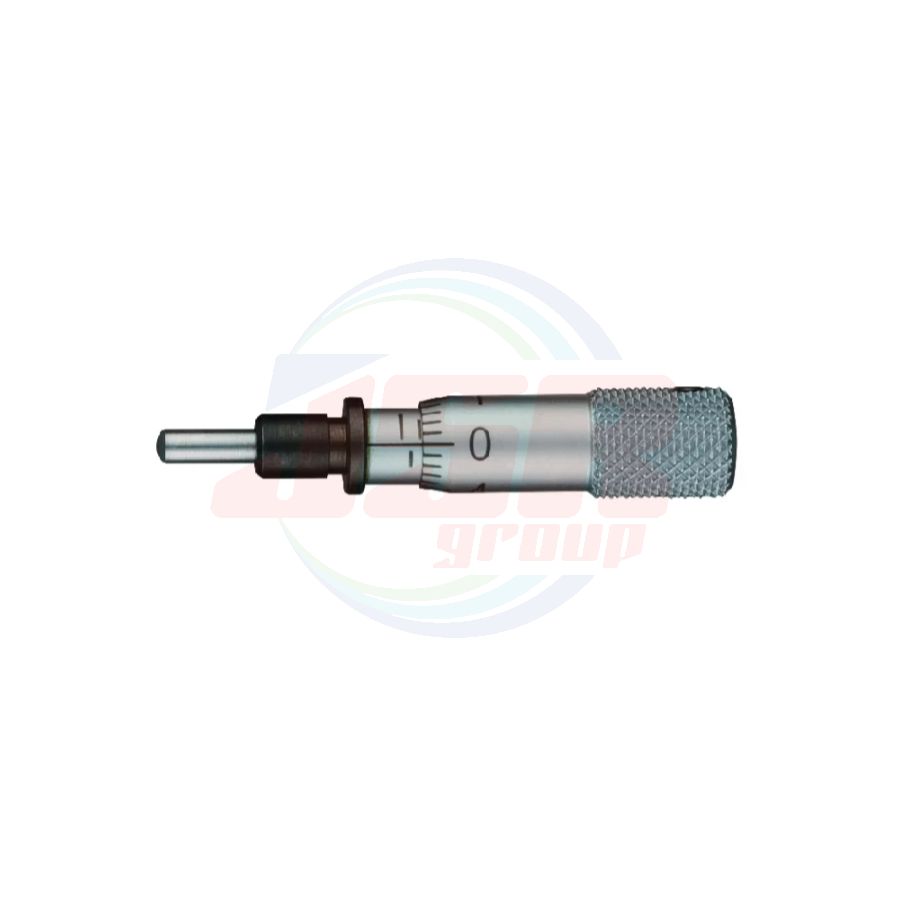

Micrometer Heads SERIES 148 — Small/Ultra-small Type | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 1,970.94
พร้อมส่ง
SKU
1MIT-148-SU
• Miniature and light-weight micrometer heads for easier incorporation into machines, jigs and fixtures.
SPECIFICATIONS
Metric

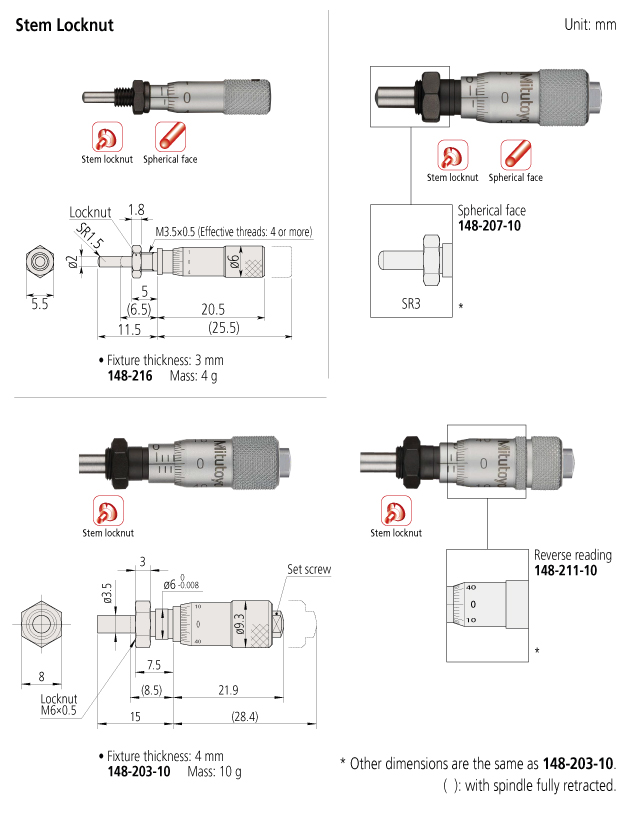

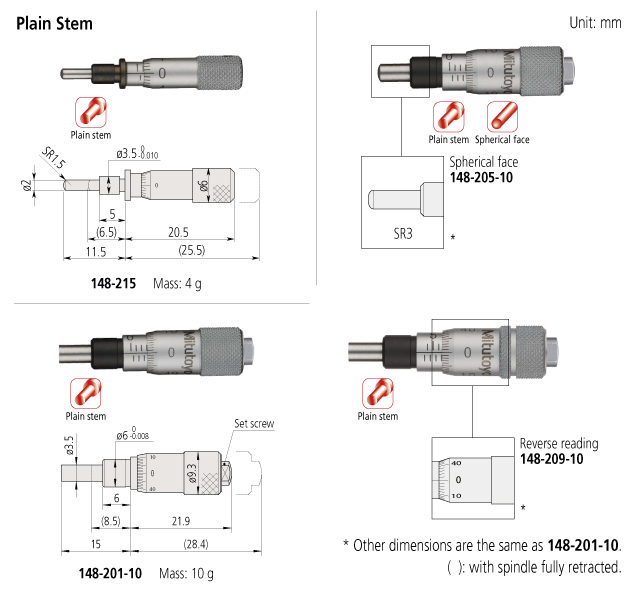

| Order No. | Range (mm) | Stem dia. (mm) | Stem | Spindle end | Graduation | Maximum permissible error J MPE (μm) |
| 148-215 | 0 - 5 | 3.5 | Plain | Spherical (SR1.5) | Standard | ±5 |
| 148-216 | W/clamp nut | |||||
| 148-201-10 | 0 - 6.5 | 6 | Plain | Flat | ||
| 148-203-10 | W/clamp nut | |||||
| 148-205-10 | Plain | Spherical (SR3) | ||||
| 148-207-10 | W/clamp nut | |||||
| 148-209-10 | Plain | Flat | Reverse reading | |||
| 148-211-10 | W/clamp nut |
• Graduation: 0.02 mm (148-215, 148-216), 0.01 mm or 0.001 in
• Measuring face: Material / Alloy tool steel, Hardness /60 HRC or more, Lapped
• Scale finishing: Satin-chrome plated
| แบรนด์สินค้า | MITUTOYO |
|---|
