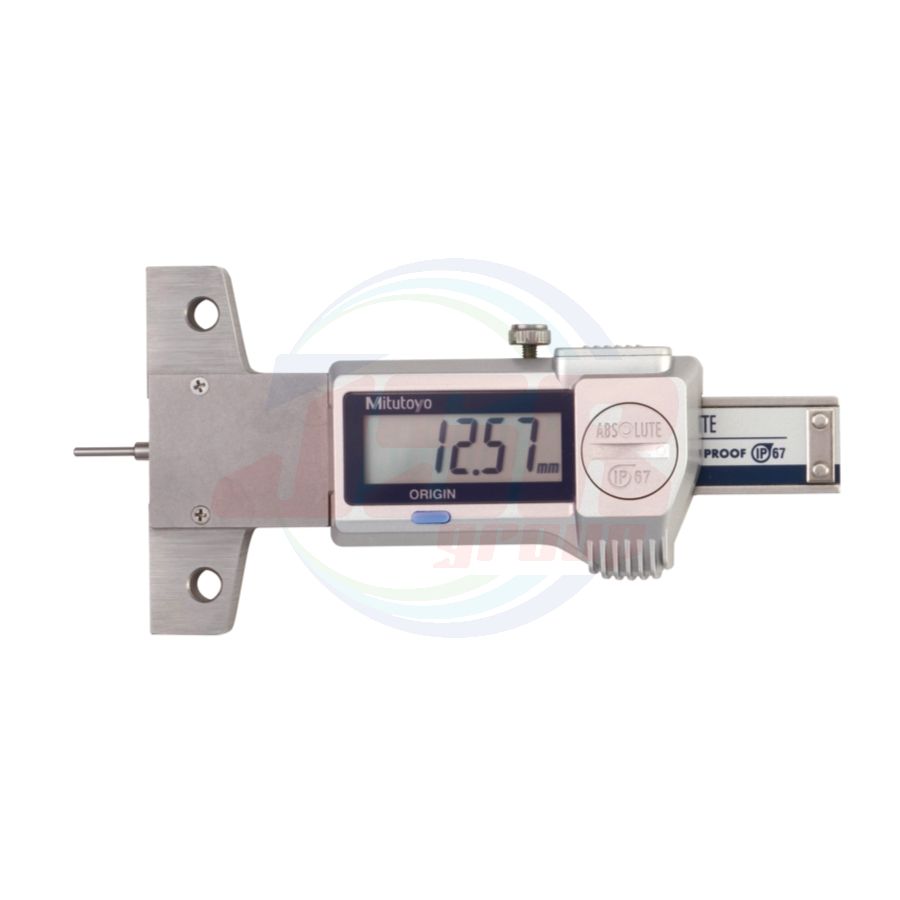

Mini Depth Gage SERIES 571 | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 8,782.56
พร้อมส่ง
SKU
1MIT-NTD
• Digital display with 0.01 mm resolution.
• Enables measurement of tread depth.
• ABSOLUTE Digimatic Depth Gage.
• Data output function allows integration into statistical process control and measurement systems.
• Coolant proof type IP67 rated.
SPECIFICATIONS
Metric
| Order No. | Range (mm) | Resolution (mm) | Base (mm) | Maximum permissible error E MPE (mm)*1 |
| 571-100-20 | 0 - 25 | 0.01 | 60 (thickness 6.65) | ±0.02 |
Inch / Metric
| Order No. | Range (mm) | Resolution (mm) | Base (mm) | Maximum permissible error E MPE (mm)*1 |
| 571-200-20 | 0 - 1 | 0.0005 | 2.36 | ±0.001 |
• Dust / Water protection level: IP67*2
• Power source: SR44 battery (1 pc.), 938882 included as standard (for operational checks)
• Position detection method: ABSOLUTE electromagnetic inductive linear encoder
• Battery life: Approx. 5 years under normal use.
• Response speed: Unlimited
*1 Maximum permissible error, E MPE, is the term defined by ISO 13385-2:2011.
*2 Rustproofing shall be applied after use if caliper was in contact with coolant.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Digital |
| Inch-Metric | Metric |
