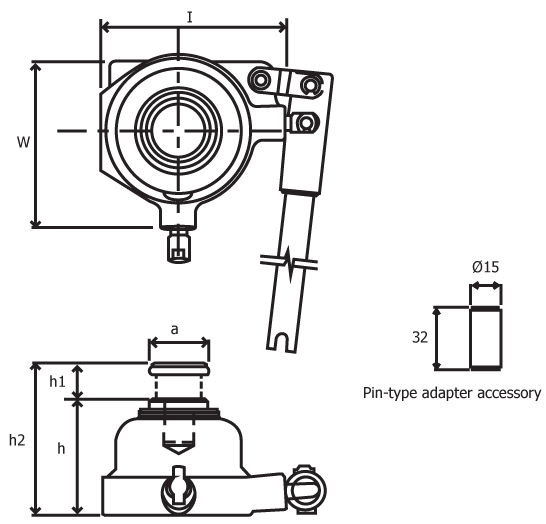

| Order No. | Capacity | Min. Height h | Ligting Height h1 | Max. Screw H | Saddle Dimensions a | Base Dimensions l x w | Handle Dimensions | Operating Power | No. of Operation | Required Oil | Gross mass |
| KN (ton) | mm | mm | mm | mm | mm | mm | N | CC | kg | ||

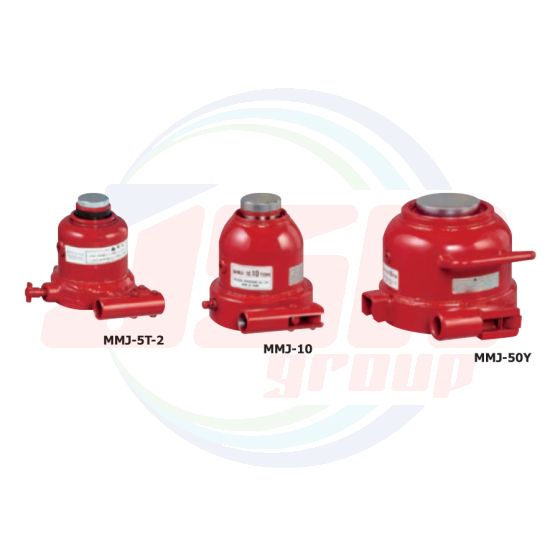

| MMJ-5C-2 | 50(5) | 60 | 20 | 80 | Ø28 | 94x89 | Ø14x240 | 255 | 36 | 25 | 1.7 |
| MMJ-5T-2 | 50(5) | 85 | 40 | 125 | Ø8 | 94x89 | Ø14x240 | 255 | 75 | 40 | 2.0 |
| MMJ-10 | 100(10) | 120 | 30 | 150 | Ø42 | 102x108 | Ø18x440 | 274 | 45 | 77 | 4.4 |
| MMJ-20 | 200(20) | 130 | 30 | 160 | Ø53 | 112x119 | Ø22x605 | 343 | 63 | 110 | 7.5 |
| MMJ-50Y | 500(50) | 140 | 30 | 170 | Ø80 | 174x178 | Ø22x680 | 382 | 97 | 370 | 18.0 |
*Minimum height is the figure when a flat adaptor attached.
| แบรนด์สินค้า | MASADA JACK |
|---|
