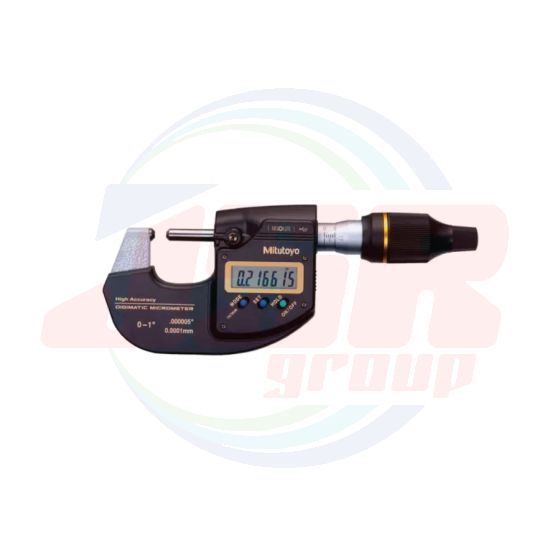

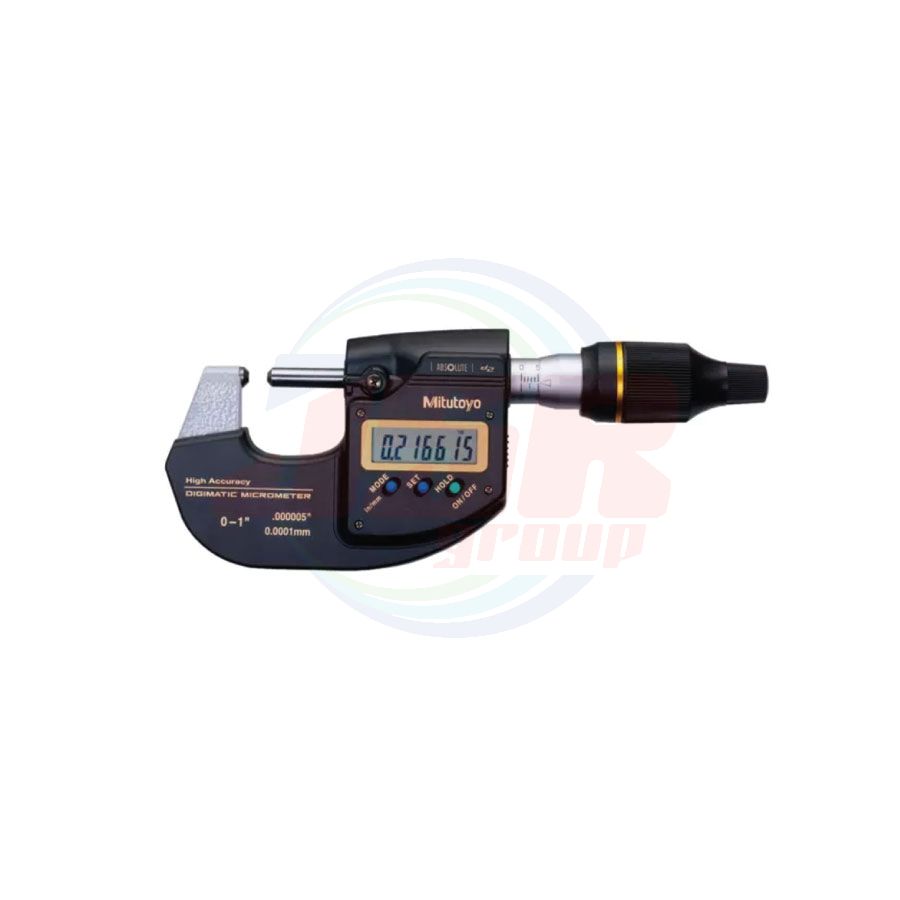

293-130-20 |Ultra-high Accuracy Digimatic Micrometer | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 29,649.53
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
293-130-20
QTY:
1
• The flagship model, featuring unparalleled high accuracy and resolution.
• Maximum Permissible Error (J MPE) of ±0.5 μm is achieved with our innovative 0.1 μm resolution ABS (absolute) rotary sensor and screw machining technology.
• A highly rigid frame and high-performance constant-force mechanism allow stable measurements.
• Body heat transferred to the instrument is reduced by a (removable) heat shield, minimizing the error caused by thermal expansion of the frame when performing handheld measurements.

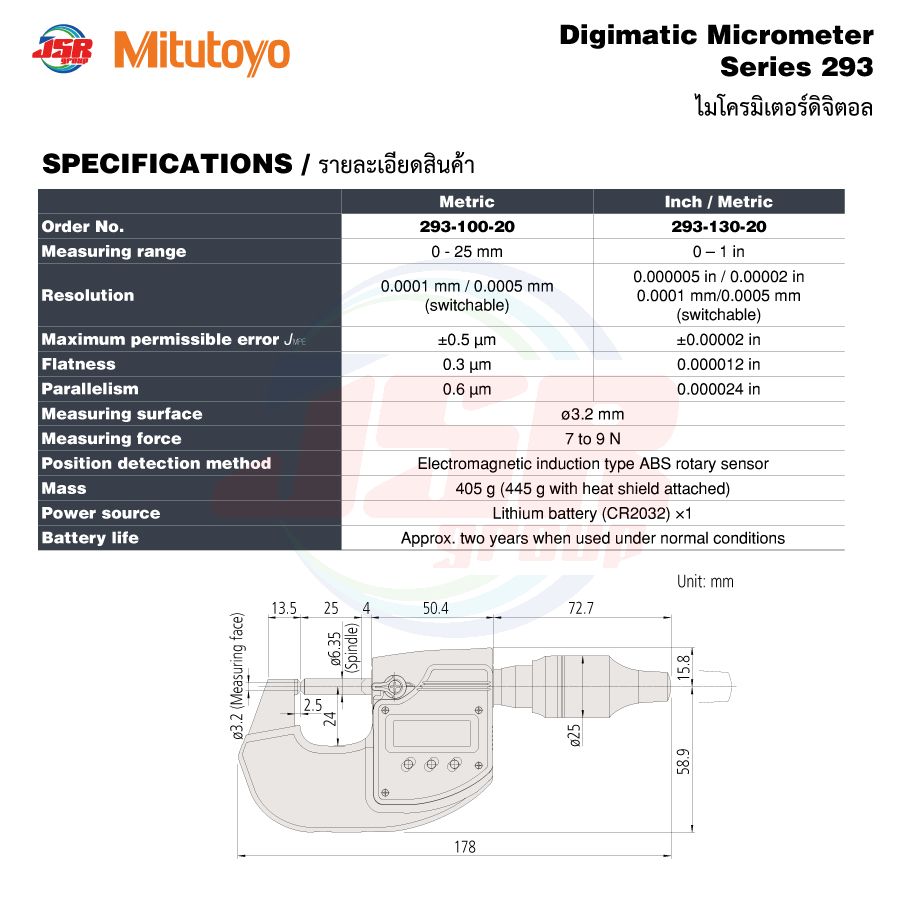

SPECIFICATIONS
| Metric | Inch / Metric | |
| Order No. | 293-100-20 | 293-130-20 |
| Measuring range | 0 – 25 mm | 0 – 1 in |
| Resolution | 0.0001 mm/0.0005 mm (switchable) |
0.000005 in / 0.00002 in 0.0001 mm/0.0005 mm (switchable) |
| Maximum permissible error J MPE |
±0.5 μm | ±0.00002 in |
| Flatness | 0.3 μm | 0.000012 in |
| Parallelism | 0.6 μm | 0.000024 in |
| Measuring surface | ø3.2 mm | |
| Measuring force | 7 to 9 N | |
| Position detection method |
Electromagnetic induction type ABS rotary sensor | |
| Mass | 405 g (445 g with heat shield attached) | |
| Power source | Lithium battery (CR2032) ×1 | |
| Battery life | Approx. two years when used under normal conditions | |
| Order No. | 293-130-20 (MDH-1”MC) |
|---|---|
| Range | 0 - 1 in / 0 - 25 mm |
| แบรนด์สินค้า | MITUTOYO |
| Inch-Metric | Inch/Metric |
| Digital/Analog | Digital |
| Resolution | 0.000005 in / 0.00002 in 0.0001 mm/0.0005 mm (switchable) |
| Measuring force (N) | 7 to 9 N |
| Maximum Permissible Error J MPE | ±0.00002 in |
| Parallelism | 0.000024 in |
| Flatness | 0.000012 in |
| Mass | 405 g (445 g with heat shield attached) |
| Measuring surface | ø3.2 mm |
| Battery life | Approx. two years when used under normal conditions |
| Power source | Lithium battery (CR2032) ×1 |
| Position detection method | Electromagnetic induction type ABS rotary sensor |
