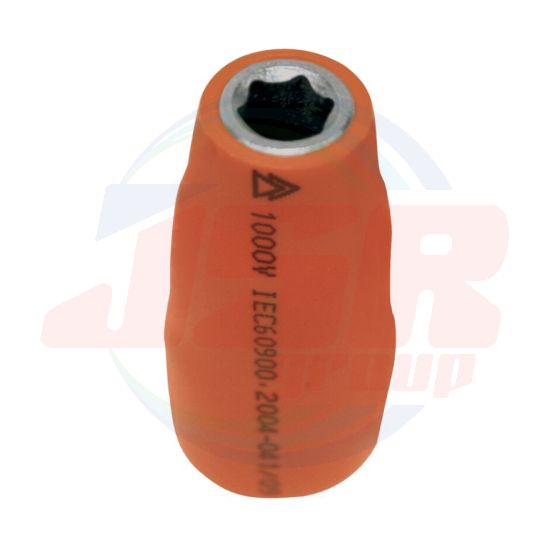

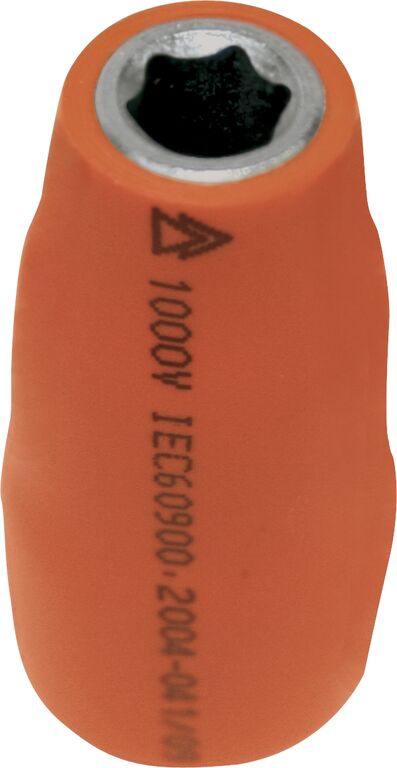

EGA Master offers a wide range of 1000V insulated sockets, both short range and long series offering in turn a large number of additional items, such as adapters, articulated handles, extensions, ratchets, etc.
There are ranges of 1/4”, 3/8” and 1/2” square driver for the most demanding professionals.
1. Sockets with 6 and 12 edges both in mm and in inches to suit user’s needs.
2. Made of chrome-vanadium steel, designed to support high torques with minimum wear out, provi ding greater durability.
3. The insulation provides maximum adherence and safety against unforeseen circumstances.
4. Un-erasable laser marking.
code | AFmm | L(mm) | L1(mm) | A(mm) | B(mm) | C(mm) | Pt | g |
74914 | 6 | 44 | 28 | 11 | 17 | 12 | 6 | 20 |
74915 | 7 | 12 | ||||||
74916 | 8 | 13 | 25 | |||||
74917 | 9 | 14 | ||||||
74918 | 10 | 15 | 31 | |||||
74919 | 11 | 16 | ||||||
74920 | 12 | 17 | 33 | |||||
74921 | 13 | 18 | ||||||
74922 | 14 | 20 | 18 | 14 | ||||
74923 | 15 | 22 | 20 | 35 | ||||
74924 | 16 | 23 | ||||||
74925 | 17 | 24 | 21 | 16 | ||||
74926 | 18 | 26 | 22 | 45 | ||||
74927 | 19 | |||||||
74928 | 20 | 28 | 24 | 18 | 50 | |||
74929 | 21 | 55 | ||||||
74930 | 22 | 30 | 26 | 65 | ||||
74997 | 23 | 48 | 32 | 32 | 28 | 70 | ||
74998 | 24 | 75 | ||||||
36789 | 26 | 75 | 37 | 21 | 80 |
แบรนด์สินค้า | EGA MASTER |
---|---|
EGA_code | 38020 |
