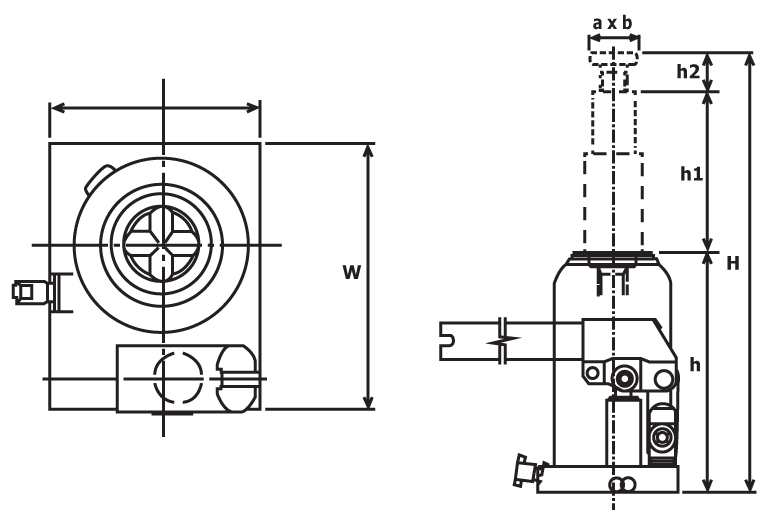

| Order No. | Capacity | Min. Height h | Ligting Height h1 | Extension Screw h2 | Max. Screw H | Saddle Dimensions a x b | Base Dimensions l x w | Handle Dimensions | Operating Power | No. of Operation | Adapter | Required Oil | Gross mass | |
| KN (ton) | mm | mm | mm | mm | mm | mm | mm | N | CC | kg | ||||
| NPD-1.5-5 | 15 (1.5) | 170 | 205 | - | 375 | Ø27 | 90x90 | Ø19.1x380 | 250 | 64 | - | 115 | 2.8 | |
| HFT-3 | 30 (3) | 120 | 150 | - | 270 | Ø34 | 154x167 | Ø21.7x600 | 274 | 108 | - | 330 | 8.2 | |
| HPD-4I | 40 (4) | 150 | 160 | 30 | 340 | 31x32 | 90x110 | Ø21.7x545 | 200 | 102 | - | 189 | 4.4 | |
| HFD-10-3 | 100 (10) | 170 | 180 | 70 | 420 | 45x47 | 118x180 | Ø21.7x605 | 178 | 279 | - | 440 | 8.6 | |
| HFD-10F-3 | Adapter-A | 100 (10) | 120 | 100 | - | 220 | Ø38 | 118x180 | Ø21.7x605 | 178 | 93 |
include A and B |
245 | 7.7 |
| Adapter-B | 100 (10) | 160 | 100 | - | 260 | Ø38 | 8.1 | |||||||
| HFD-10SK-2 | Adapter-A | 100 (10) | 100 | 60 | - | 160 | Ø38 | 118x180 | Ø21.7x605 | 178 | 93 |
include A and B |
180 | 6.8 |
| Adapter-B | 100 (10) | 140 | 60 | - | 200 | Ø38 | 7.2 | |||||||
* Horizontal use is not recommended.
*2 The HFT-3 is a three stage jack.
| แบรนด์สินค้า | MASADA JACK |
|---|
