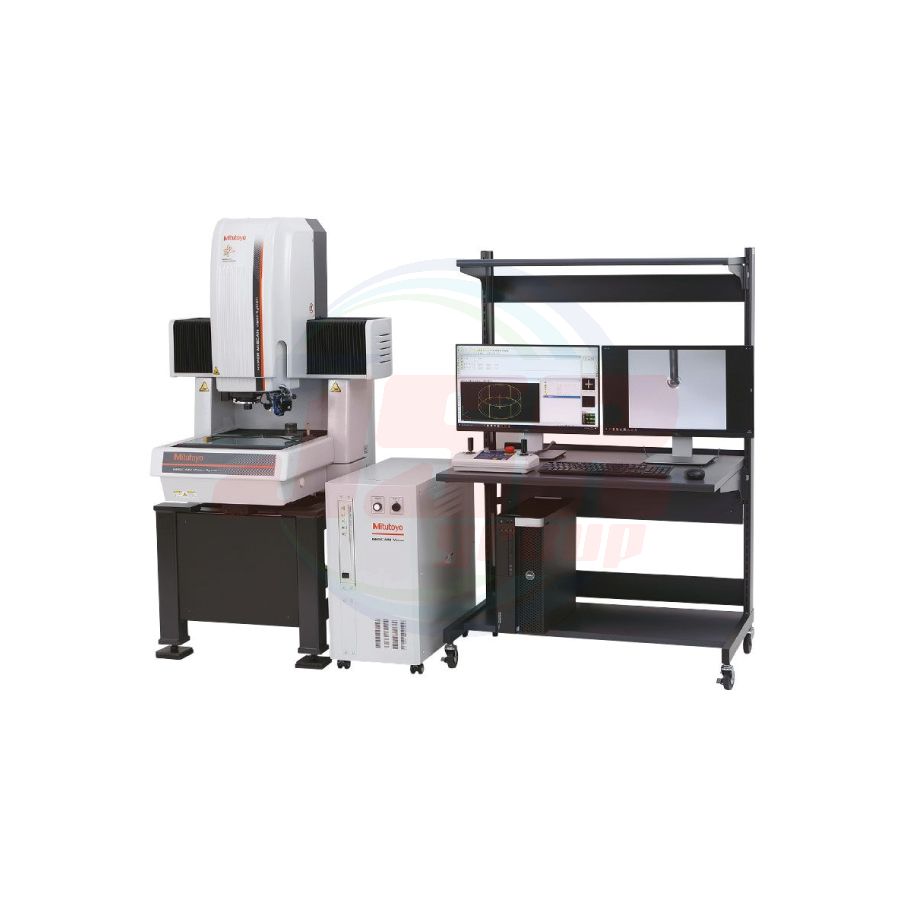

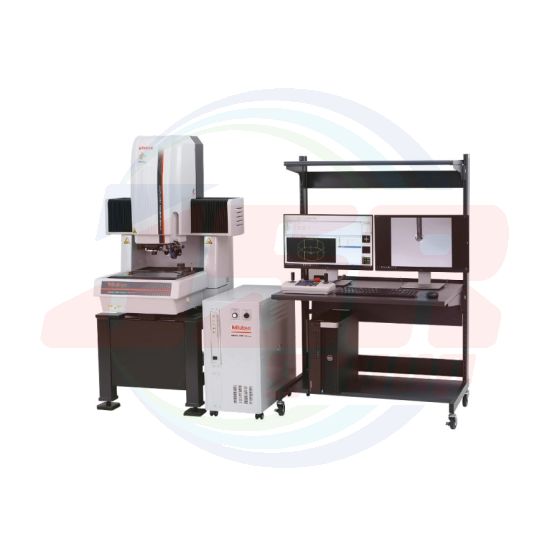

CNC Vision Measuring Machine with Micro-form Scanning Probe
MiSCAN Vision System
A complex measuring system designed for scanning measurements with a stylus ball diameter as small as 125 µm.
SPECIFICATIONS
| Model Name. |
Hyper MVS 302 | Hyper MVS 404 | MVS Apex 404 | ||
| Model |
MVS-H302P1L-D | MVS-H404P1L-D | MVS-X404P1L-D | ||
| Measuring range | Image | 300x200x200 mm | 400x400x250 mm | ||
| MPP-NANO/SP25M | 234×200×200 | 275x400x250 mm | |||
| Minimum reading/Scale unit | 0.02 μm/Linear encoder | 0.1 μm/Linear encoder | |||
| Image sensor | B&W CCD camera | ||||
| Observation unit | Power turret (1X-2X-6X) | ||||
| Illumination unit | Co-axial light, transmitted light, PRL (programmable ring light) | ||||
| Contact type probe | MPP-NANO/SP25M | Only SP25M | |||
| Measurement accuracy [μm] |
Image*¹ | E1X, E1Y | 0.8+2L/1000 | 1.5+3L/1000 | |
| E1Z | 1.5+2L/1000 | 1.5+4L/1000 | |||
| E2XY | 1.4+3L/1000 | 2.0+4L/1000 | |||
| MPP-NANO | E0MPE | 1.9+4 L/1000 | — | ||
| SP25M | E0MPE | 1.9+4L/1000 | 2.5+6L/1000 | ||
| Scanning accuracy [μm] |
MPP-NANO | 0.6 | — | ||
| SP25M | PForm.Sph.Scan:PP:Tact,MPE | 2.5 | 2.7 | ||
| TSph.Scan:PP:Tact,MPL | 50 s | ||||
| Probing accuracy [μm] |
MPP-NANO |
0.6 | — | ||
| SP25M | PForm.Sph.1×25:SS:Tact,MPE | 1.9 | 2.2 | ||
| Repetitive accuracy [μm] | MPP-NANO | 0.05 | — | ||
| Accuracy guaranteed temperature |
Ambient temperature | 18 - 23 ºC | |||
| Temperature variation | 0.5 °C/1 H and 1 °C/24 H | ||||
| Size of stage glass | 399x271 mm | 493x551 mm | |||
| Max. mass of workpiece*² | 15 kg | 30 kg | 40 kg | ||

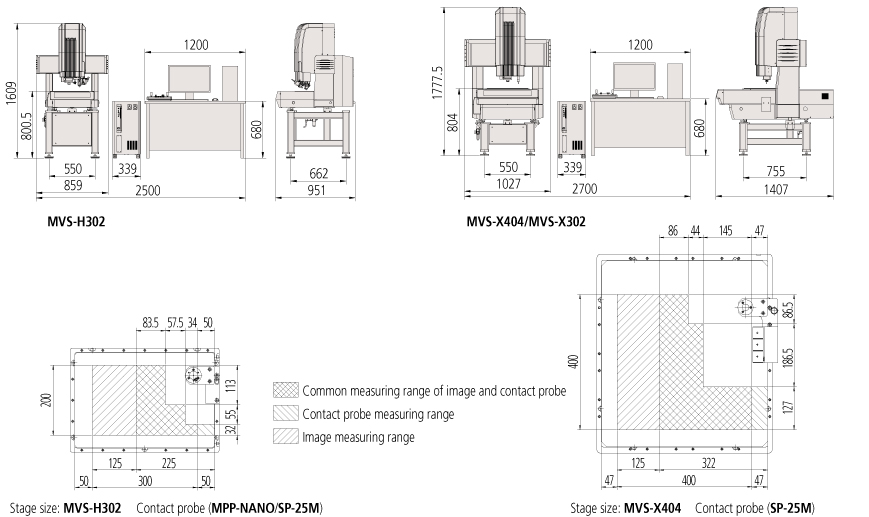

| Dimensions | 859x951x1609 mm | 1407x1027x1778 mm | |||
| Mass (Including machine stand) | 360 kg | 579 kg | |||
*1 Image accuracy using a QV-HR 2.5X objective and 2X tube lens.
*2 Except at limits of stage displacement or concentrated loading.
Note1: Accuracy-guaranteed machines conforming to ISO10360-7:2011 are also supported.
Note2: CNC Vision Measuring Systems in this brochure incorporate a main startup system (relocation detection system) that disables operation when an unexpected vibration occurs or the machine is relocated. Be sure to contact your nearest Mitutoyo Sales Office prior to relocating your machine after initial installation.
