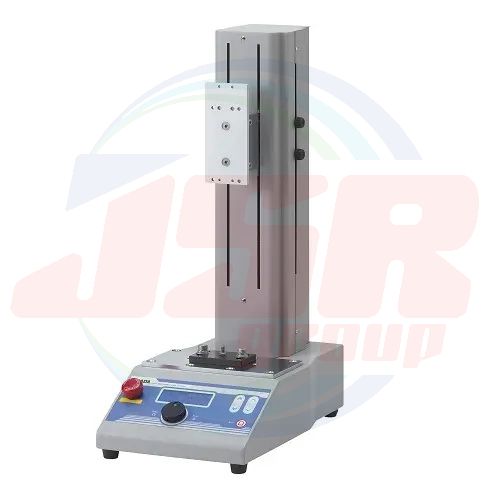

MX2-500N | Standard Type Vertical Motorized Test Stand | IMADA
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 74,887.85
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
MX2-500N
QTY:
2
Standard motorized test stand has capacity of 5000N and is versatile and desktop, providing both the ease of use and functionality. Such functions and performance that enhance measurement repeatability, as digital speed setting and mechanical strength, are standard-equipped. A timer/counter function allows for durability and repetitive test. Strong deflection rigidity enables precise measurement.
Feature
- Achieves high repeatability with constant testing speed and position, high rigidity
- Handles various testing such as durability or compression testing with digital setting of speed, counter function (number of tests to repeat), and timer function (pausing time)
- Handles a wide range of testing applications to meet your testing requirements with options such as -FA (inner linear scale) and -L (long stroke)
- Enhances testing efficiency and safety with option -CN (I/O for external signals), allowing for communication for interlock and starting operation, etc.
| Features | |
|
Improved Repeatability ･Constant testing speed and position for applying compression and tensile force ･Rugged design minimizes influence of deformation (max.0.5mm) |
Easy Operation ･Ergonomically inclined control panel ･Dial operation for digital setting ･Three testing modes to meet testing requirements |
|
Versatility for a wide variety of testing ･Ideal for durability test by setting the number of test cycles to repeat ･Useful timer function for compression testing allows pausing at a set force value. (*) ･Attached table can mount a wide range of grips and fixtures. ･Optional functions for various purposes |
Functions for efficient testing ･Easy setting of travel distance depending on the sample height. ･Automatically changes traveling and measuring speed at a set force value. (*) ･Starts software together with test stand motion.(*) |
Specifications
| Model | MX2-500N |
| Capacity | 500N (50kgf) |
| Speed | 10-300mm/min |
| Max. height of a sample (*1) | Approx. 235mm |
| Dimensions | Approx. W220 x D380 x H562mm |
| Weight | Approx. 18 kg |
*1 Max. sample height refers to the distance between the table and the tip of force gauge measuring shaft when the head is at the top. (MX2-500N/MX2-1000N: up to 1000N model of ZTS/ZTA series, MX2-2500N/MX2-5000N: With over 2500N model of ZTS/ZTA series is mounted.)
| แบรนด์สินค้า | IMADA |
|---|---|
| Order No. | MX2-500N |
