N-CT FC (Metric Thread)

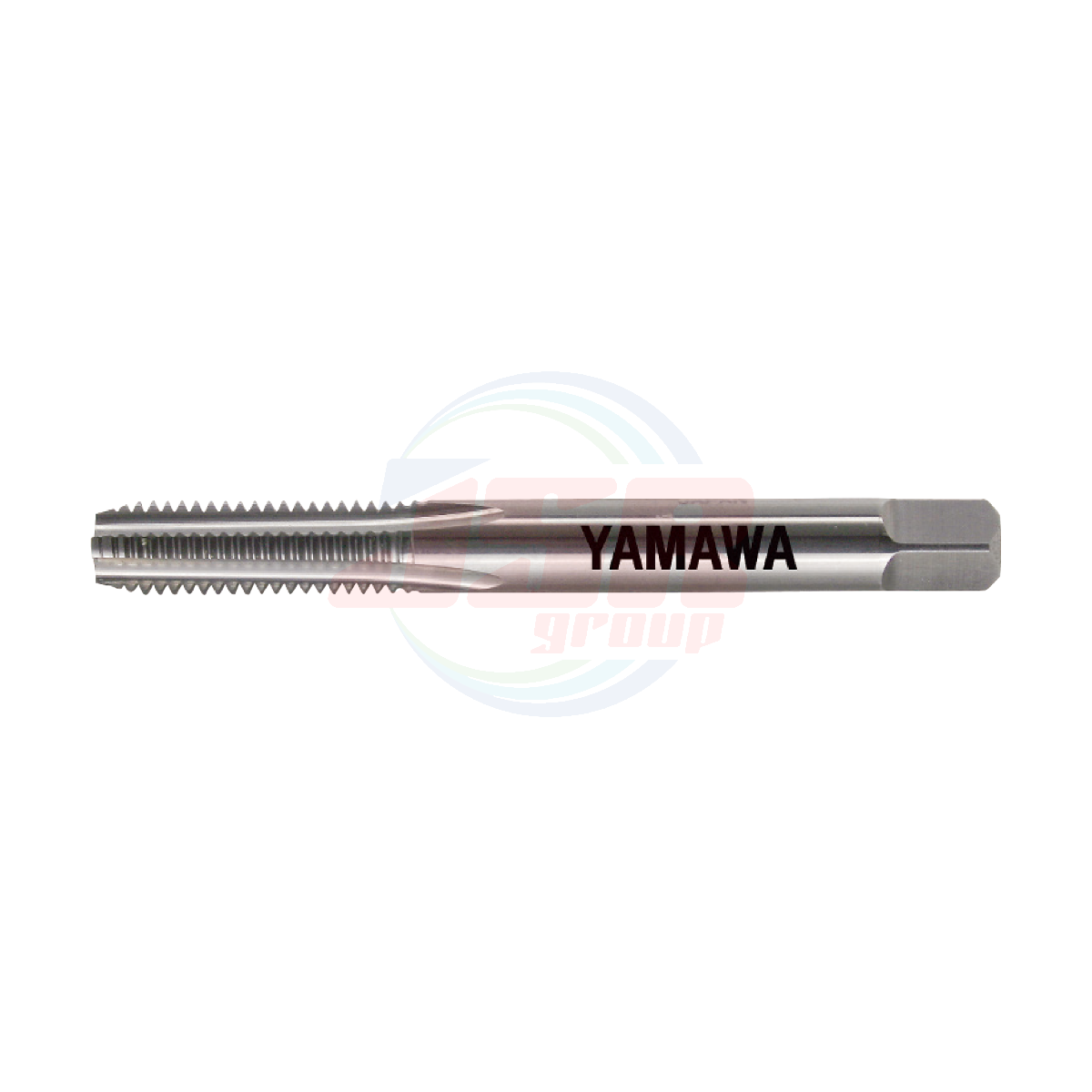

N-CT FC is the carbide tap suitable for hard and abrasive materials such as cast irons. For volume production.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

N-CT FC (Metric Threads) | Carbide Taps for Cast Irons | YAMAWA

Details

Specification

Tapping Speeds depending on Materials

Segment：1L

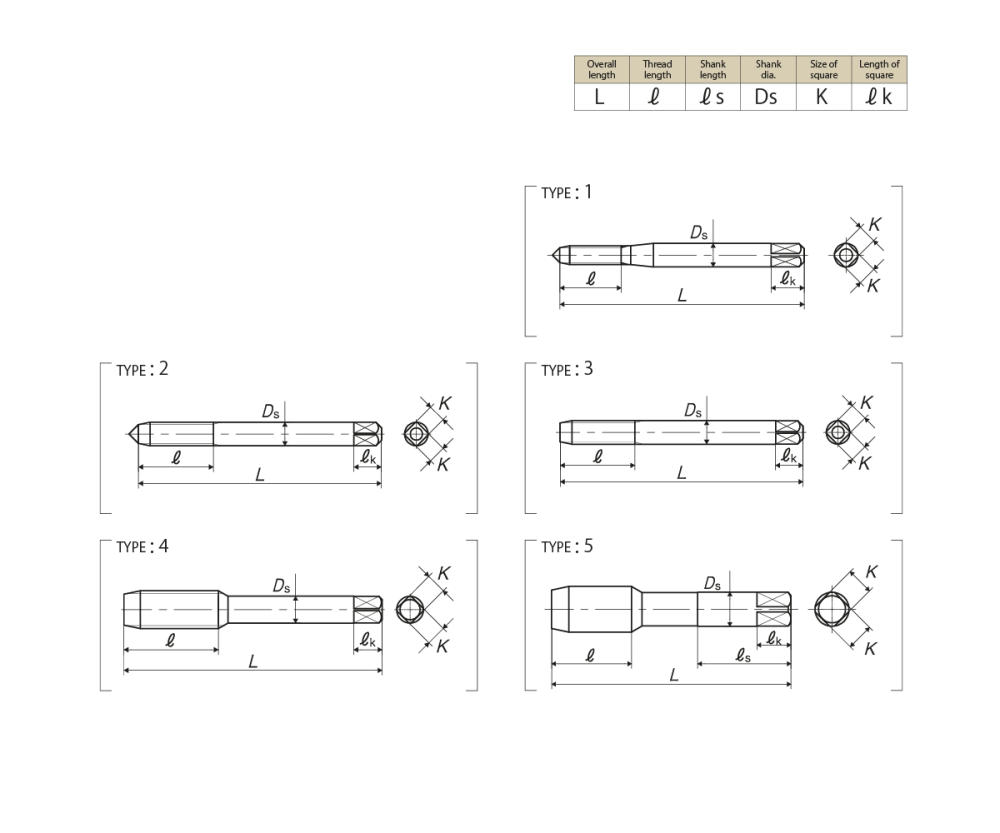

Size	Class	Code	Chamfer	L (mm)	ℓ (mm)	ℓs (mm)	Ds (mm)	K (mm)	ℓk (mm)	No. of flutes	TYPE
For Metric Threads
M1.4×0.3	P3	TCNR1.4C3	3P	34	7	-	3	2.5	5	3	1
M1.4×0.3	P3	TCNR1.4C1	1.5P	34	7	-	3	2.5	5	3	1
M1.6×0.35	P3	TCNR1.6D3	3P	36	8	-	3	2.5	5	3	1
M1.6×0.35	P3	TCNR1.6D1	1.5P	36	8	-	3	2.5	5	3	1
M1.7×0.35	P3	TCNR1.7D3	3P	36	8	-	3	2.5	5	3	1
M1.7×0.35	P3	TCNR1.7D1	1.5P	36	8	-	3	2.5	5	3	1
M2×0.4	P3	TCNR2.0E3	3P	40	8	-	3	2.5	5	3	1
M2×0.4	P3	TCNR2.0E1	1.5P	40	8	-	3	2.5	5	3	1
M2.2×0.45	P3	TCNR2.2F3	3P	42	9.5	-	3	2.5	5	3	1
M2.2×0.45	P3	TCNR2.2F1	1.5P	42	9.5	-	3	2.5	5	3	1
M2.3×0.4	P3	TCNR2.3E3	3P	42	8	-	3	2.5	5	3	1
M2.3×0.4	P3	TCNR2.3E1	1.5P	42	8	-	3	2.5	5	3	1
M2.5×0.45	P3	TCNR2.5F3	3P	44	9.5	-	3	2.5	5	3	1
M2.5×0.45	P3	TCNR2.5F1	1.5P	44	9.5	-	3	2.5	5	3	1
M2.6×0.45	P3	TCNR2.6F3	3P	44	9.5	-	3	2.5	5	3	1
M2.6×0.45	P3	TCNR2.6F1	1.5P	44	9.5	-	3	2.5	5	3	1
M3×0.5	P3	TCNR3.0G3	3P	46	11	-	4	3.2	6	3	1
M3×0.5	P3	TCNR3.0G1	1.5P	46	11	-	4	3.2	6	3	1
M3×0.35	P3	TCNR3.0D3	3P	46	8	-	4	3.2	6	3	1
M3×0.35	P3	TCNR3.0D1	1.5P	46	8	-	4	3.2	6	3	1
M3.5×0.6	P3	TCNR3.5H3	3P	48	11	-	4	3.2	6	3	1
M3.5×0.6	P3	TCNR3.5H1	1.5P	48	11	-	4	3.2	6	3	1
M4×0.7	P3	TCNR4.0I3	3P	52	13	-	5	4	7	4	1
M4×0.7	P3	TCNR4.0I1	1.5P	52	13	-	5	4	7	4	1
M4×0.5	P3	TCNR4.0G3	3P	52	11	-	5	4	7	4	1
M4×0.5	P3	TCNR4.0G1	1.5P	52	11	-	5	4	7	4	1
M5×0.8	P3	TCNR5.0K3	3P	60	16	-	5.5	4.5	7	4	1
M5×0.8	P3	TCNR5.0K1	1.5P	60	16	-	5.5	4.5	7	4	1
M5×0.5	P3	TCNR5.0G3	3P	52	11	-	5.5	4.5	7	4	1
M5×0.5	P3	TCNR5.0G1	1.5P	52	11	-	5.5	4.5	7	4	1
M6×1	P3	TCNR6.0M3	3P	62	19	-	6	4.5	7	4	2
M6×1	P3	TCNR6.0M3F	3P	62	19	-	6	4.5	7	4	3
M6×1	P3	TCNR6.0M1	1.5P	62	19	-	6	4.5	7	4	2
M6×1	P3	TCNR6.0M1F	1.5P	62	19	-	6	4.5	7	4	3
M6×0.75	P3	TCNR6.0J3	3P	62	13	-	6	4.5	7	4	2
M6×0.75	P3	TCNR6.0J1	1.5P	62	13	-	6	4.5	7	4	2
M6×0.5	P3	TCNR6.0G3	3P	55	11	-	6	4.5	7	4	2
M6×0.5	P3	TCNR6.0G1	1.5P	55	11	-	6	4.5	7	4	2
M7×1	P3	TCNR7.0M3	3P	65	19	-	6.2	5	8	4	4
M7×1	P3	TCNR7.0M1	1.5P	65	19	-	6.2	5	8	4	4
M7×0.75	P3	TCNR7.0J3	3P	62	13	-	6.2	5	8	4	4
M7×0.75	P3	TCNR7.0J1	1.5P	62	13	-	6.2	5	8	4	4
M8×1.25	P3	TCNR8.0N3	3P	70	22	-	6.2	5	8	4	4
M8×1.25	P3	TCNR8.0N1	1.5P	70	22	-	6.2	5	8	4	4
M8×1.25	P4	TCNS8.0N3	3P	70	22	-	6.2	5	8	4	4
M8×1.25	P4	TCNS8.0N1	1.5P	70	22	-	6.2	5	8	4	4
M8×1	P3	TCNR8.0M3	3P	70	19	-	6.2	5	8	4	4
M8×1	P3	TCNR8.0M1	1.5P	70	19	-	6.2	5	8	4	4
M8×0.75	P3	TCNR8.0J3	3P	62	13	-	6.2	5	8	4	4
M8×0.75	P3	TCNR8.0J1	1.5P	62	13	-	6.2	5	8	4	4
M10×1.5	P3	TCNR010O3	3P	75	24	-	7	5.5	8	4	4
M10×1.5	P3	TCNR010O1	1.5P	75	24	-	7	5.5	8	4	4
M10×1.5	P4	TCNS010O3	3P	75	24	-	7	5.5	8	4	4
M10×1.5	P4	TCNS010O1	1.5P	75	24	-	7	5.5	8	4	4
M10×1.25	P3	TCNR010N3	3P	75	22	-	7	5.5	8	4	4
M10×1.25	P3	TCNR010N1	1.5P	75	22	-	7	5.5	8	4	4
M10×1.25	P4	TCNS010N3	3P	75	22	-	7	5.5	8	4	4
M10×1.25	P4	TCNS010N1	1.5P	75	22	-	7	5.5	8	4	4
M10×1	P3	TCNR010M3	3P	70	19	-	7	5.5	8	4	4
M10×1	P3	TCNR010M1	1.5P	70	19	-	7	5.5	8	4	4
M10×1	P4	TCNS010M3	3P	70	19	-	7	5.5	8	4	4
M10×1	P4	TCNS010M1	1.5P	70	19	-	7	5.5	8	4	4
M12×1.75	P3	TCNR012P3	3P	82	30	-	8.5	6.5	9	4	4
M12×1.75	P3	TCNR012P1	1.5P	82	30	-	8.5	6.5	9	4	4
M12×1.75	P4	TCNS012P3	3P	82	30	-	8.5	6.5	9	4	4
M12×1.75	P4	TCNS012P1	1.5P	82	30	-	8.5	6.5	9	4	4
M12×1.5	P3	TCNR012O3	3P	82	24	-	8.5	6.5	9	4	4
M12×1.5	P3	TCNR012O1	1.5P	82	24	-	8.5	6.5	9	4	4
M12×1.5	P4	TCNS012O3	3P	82	24	-	8.5	6.5	9	4	4
M12×1.5	P4	TCNS012O1	1.5P	82	24	-	8.5	6.5	9	4	4
M12×1.25	P3	TCNR012N3	3P	80	22	-	8.5	6.5	9	4	4
M12×1.25	P3	TCNR012N1	1.5P	80	22	-	8.5	6.5	9	4	4
M12×1.25	P4	TCNS012N3	3P	80	22	-	8.5	6.5	9	4	4
M12×1.25	P4	TCNS012N1	1.5P	80	22	-	8.5	6.5	9	4	4
M12×1	P3	TCNR012M3	3P	70	19	-	8.5	6.5	9	4	4
M12×1	P3	TCNR012M1	1.5P	70	19	-	8.5	6.5	9	4	4
M12×1	P4	TCNS012M3	3P	70	19	-	8.5	6.5	9	4	4
M12×1	P4	TCNS012M1	1.5P	70	19	-	8.5	6.5	9	4	4
M14×2	P3	TCNR014Q3	3P	88	30	34	10.5	8	11	4	5
M14×2	P3	TCNR014Q1	1.5P	88	30	34	10.5	8	11	4	5
M14×2	P4	TCNS014Q3	3P	88	30	34	10.5	8	11	4	5
M14×2	P4	TCNS014Q1	1.5P	88	30	34	10.5	8	11	4	5
M14×1.5	P3	TCNR014O3	3P	88	24	34	10.5	8	11	4	5
M14×1.5	P3	TCNR014O1	1.5P	88	24	34	10.5	8	11	4	5
M14×1.5	P4	TCNS014O3	3P	88	24	34	10.5	8	11	4	5
M14×1.5	P4	TCNS014O1	1.5P	88	24	34	10.5	8	11	4	5
M14×1.25	P3	TCNR014N3	3P	88	22	34	10.5	8	11	4	5
M14×1.25	P3	TCNR014N1	1.5P	88	22	34	10.5	8	11	4	5
M14×1.25	P4	TCNS014N3	3P	88	22	34	10.5	8	11	4	5
M14×1.25	P4	TCNS014N1	1.5P	88	22	34	10.5	8	11	4	5
M14×1	P3	TCNR014M3	3P	70	19	37	10.5	8	11	4	5
M14×1	P3	TCNR014M1	1.5P	70	19	37	10.5	8	11	4	5
M14×1	P4	TCNS014M3	3P	70	19	37	10.5	8	11	4	5
M14×1	P4	TCNS014M1	1.5P	70	19	37	10.5	8	11	4	5
M16×2	P4	TCNS016Q3	3P	95	30	37	12.5	10	13	4	5
M16×2	P4	TCNS016Q1	1.5P	95	30	37	12.5	10	13	4	5
M16×1.5	P3	TCNR016O3	3P	95	24	37	12.5	10	13	4	5
M16×1.5	P3	TCNR016O1	1.5P	95	24	37	12.5	10	13	4	5
M16×1.5	P4	TCNS016O3	3P	95	24	37	12.5	10	13	4	5
M16×1.5	P4	TCNS016O1	1.5P	95	24	37	12.5	10	13	4	5
M16×1	P4	TCNS016M3	3P	75	19	41	12.5	10	13	4	5
M16×1	P4	TCNS016M1	1.5P	75	19	41	12.5	10	13	4	5
M18×2.5	P4	TCNS018R3	3P	100	35	38	14	11	14	4	5
M18×2.5	P4	TCNS018R1	1.5P	100	35	38	14	11	14	4	5
M18×1.5	P4	TCNS018O3	3P	95	24	43	14	11	14	4	5
M18×1.5	P4	TCNS018O1	1.5P	95	24	43	14	11	14	4	5
M20×2.5	P4	TCNS020R3	3P	105	35	41	15	12	15	4	5
M20×2.5	P4	TCNS020R1	1.5P	105	35	41	15	12	15	4	5
M20×1.5	P4	TCNS020O3	3P	95	24	43	15	12	15	4	5
M20×1.5	P4	TCNS020O1	1.5P	95	24	43	15	12	15	4	5
M22×2.5	P4	TCNS022R3	3P	115	35	45	17	13	16	4	5
M22×2.5	P4	TCNS022R1	1.5P	115	35	45	17	13	16	4	5
M22×1.5	P4	TCNS022O3	3P	95	24	42	17	13	16	4	5
M22×1.5	P4	TCNS022O1	1.5P	95	24	42	17	13	16	4	5
M24×3	P4	TCNS024S3	3P	120	35	47	19	15	18	4	5
M24×3	P4	TCNS024S1	1.5P	120	35	47	19	15	18	4	5
M24×1.5	P4	TCNS024O3	3P	95	24	42	19	15	18	4	5
M24×1.5	P4	TCNS024O1	1.5P	95	24	42	19	15	18	4	5
M30×3.5	P5	TCNT030T3	3P	135	45	53	23	17	20	4	5
M30×3.5	P5	TCNT030T1	1.5P	135	45	53	23	17	20	4	5
