N-CT LA | Carbide Taps for Light Alloys | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 3,135.51
พร้อมส่ง
SKU
N-CT LA
- N-CT LA is the carbide tap suitable for tapping aluminum castings (AC), aluminum die castings (ADC), and zinc diecastings (ZDC). For volume production.
Specification
Tapping Speeds depending on Materials
Segment：1L
|

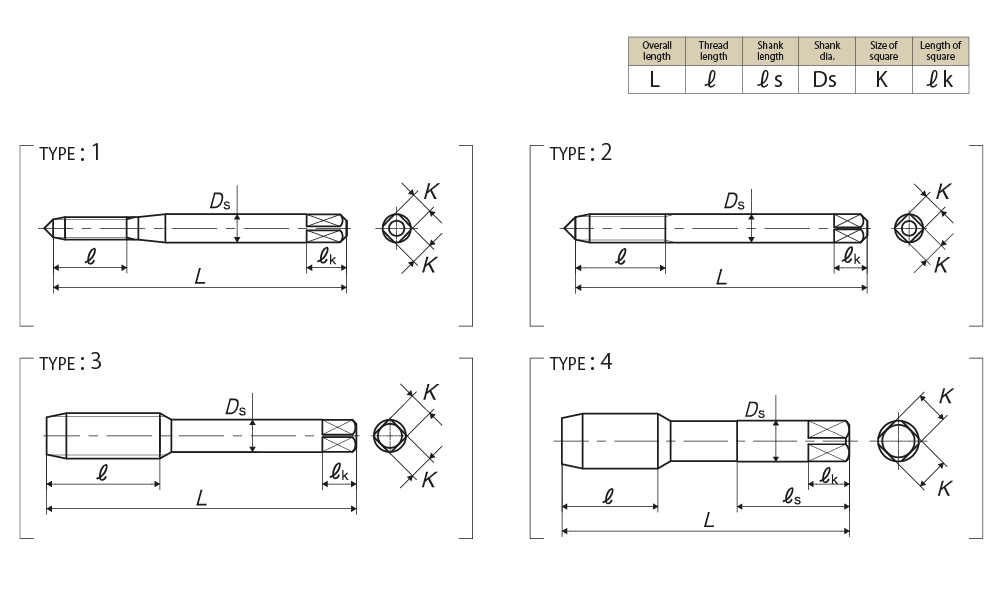

Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Metric Threads |
|||||||||||
|
M1.4×0.3 |
P3 |
TCNR1.4C3A |
3P |
34 |
7 |
- |
3 |
2.5 |
5 |
3 |
1 |
|
M1.4×0.3 |
P3 |
TCNR1.4C1A |
1.5P |
34 |
7 |
- |
3 |
2.5 |
5 |
3 |
1 |
|
M1.6×0.35 |
P3 |
TCNR1.6D3A |
3P |
36 |
8 |
- |
3 |
2.5 |
5 |
3 |
1 |
|
M1.6×0.35 |
P3 |
TCNR1.6D1A |
1.5P |
36 |
8 |
- |
3 |
2.5 |
5 |
3 |
1 |
|
M1.7×0.35 |
P3 |
TCNR1.7D3A |
3P |
36 |
8 |
- |
3 |
2.5 |
5 |
3 |
1 |
|
M1.7×0.35 |
P3 |
TCNR1.7D1A |
1.5P |
36 |
8 |
- |
3 |
2.5 |
5 |
3 |
1 |
|
M2×0.4 |
P3 |
TCNR2.0E3A |
3P |
40 |
8 |
- |
3 |
2.5 |
5 |
3 |
1 |
|
M2×0.4 |
P3 |
TCNR2.0E1A |
1.5P |
40 |
8 |
- |
3 |
2.5 |
5 |
3 |
1 |
|
M2.2×0.45 |
P3 |
TCNR2.2F3A |
3P |
42 |
9.5 |
- |
3 |
2.5 |
5 |
3 |
1 |
|
M2.2×0.45 |
P3 |
TCNR2.2F1A |
1.5P |
42 |
9.5 |
- |
3 |
2.5 |
5 |
3 |
1 |
|
M2.3×0.4 |
P3 |
TCNR2.3E3A |
3P |
42 |
8 |
- |
3 |
2.5 |
5 |
3 |
1 |
|
M2.3×0.4 |
P3 |
TCNR2.3E1A |
1.5P |
42 |
8 |
- |
3 |
2.5 |
5 |
3 |
1 |
|
M2.5×0.45 |
P3 |
TCNR2.5F3A |
3P |
44 |
9.5 |
- |
3 |
2.5 |
5 |
3 |
1 |
|
M2.5×0.45 |
P3 |
TCNR2.5F1A |
1.5P |
44 |
9.5 |
- |
3 |
2.5 |
5 |
3 |
1 |
|
M2.6×0.45 |
P3 |
TCNR2.6F3A |
3P |
44 |
9.5 |
- |
3 |
2.5 |
5 |
3 |
1 |
|
M2.6×0.45 |
P3 |
TCNR2.6F1A |
1.5P |
44 |
9.5 |
- |
3 |
2.5 |
5 |
3 |
1 |
|
M3×0.5 |
P3 |
TCNR3.0G3A |
3P |
46 |
11 |
- |
4 |
3.2 |
6 |
3 |
1 |
|
M3×0.5 |
P3 |
TCNR3.0G1A |
1.5P |
46 |
11 |
- |
4 |
3.2 |
6 |
3 |
1 |
|
M3.5×0.6 |
P3 |
TCNR3.5H3A |
3P |
48 |
11 |
- |
4 |
3.2 |
6 |
3 |
1 |
|
M3.5×0.6 |
P3 |
TCNR3.5H1A |
1.5P |
48 |
11 |
- |
4 |
3.2 |
6 |
3 |
1 |
|
M4×0.7 |
P3 |
TCNR4.0I3A |
3P |
52 |
13 |
- |
5 |
4 |
7 |
3 |
1 |
|
M4×0.7 |
P3 |
TCNR4.0I1A |
1.5P |
52 |
13 |
- |
5 |
4 |
7 |
3 |
1 |
|
M4×0.5 |
P3 |
TCNR4.0G3A |
3P |
52 |
11 |
- |
5 |
4 |
7 |
3 |
1 |
|
M4×0.5 |
P3 |
TCNR4.0G1A |
1.5P |
52 |
11 |
- |
5 |
4 |
7 |
3 |
1 |
|
M5×0.8 |
P3 |
TCNR5.0K3A |
3P |
60 |
16 |
- |
5.5 |
4.5 |
7 |
3 |
1 |
|
M5×0.8 |
P3 |
TCNR5.0K1A |
1.5P |
60 |
16 |
- |
5.5 |
4.5 |
7 |
3 |
1 |
|
M5×0.5 |
P3 |
TCNR5.0G3A |
3P |
52 |
11 |
- |
5.5 |
4.5 |
7 |
3 |
1 |
|
M5×0.5 |
P3 |
TCNR5.0G1A |
1.5P |
52 |
11 |
- |
5.5 |
4.5 |
7 |
3 |
1 |
|
M6×1 |
P3 |
TCNR6.0M3A |
3P |
62 |
19 |
- |
6 |
4.5 |
7 |
3 |
2 |
|
M6×1 |
P3 |
TCNR6.0M1A |
1.5P |
62 |
19 |
- |
6 |
4.5 |
7 |
3 |
2 |
|
M6×0.75 |
P3 |
TCNR6.0J3A |
3P |
62 |
13 |
- |
6 |
4.5 |
7 |
3 |
2 |
|
M6×0.75 |
P3 |
TCNR6.0J1A |
1.5P |
62 |
13 |
- |
6 |
4.5 |
7 |
3 |
2 |
|
M6×0.5 |
P3 |
TCNR6.0G3A |
3P |
55 |
11 |
- |
6 |
4.5 |
7 |
3 |
2 |
|
M6×0.5 |
P3 |
TCNR6.0G1A |
1.5P |
55 |
11 |
- |
6 |
4.5 |
7 |
3 |
2 |
|
M7×1 |
P3 |
TCNR7.0M3A |
3P |
65 |
19 |
- |
6.2 |
5 |
8 |
3 |
3 |
|
M7×1 |
P3 |
TCNR7.0M1A |
1.5P |
65 |
19 |
- |
6.2 |
5 |
8 |
3 |
3 |
|
M7×0.75 |
P3 |
TCNR7.0J3A |
3P |
62 |
13 |
- |
6.2 |
5 |
8 |
3 |
3 |
|
M7×0.75 |
P3 |
TCNR7.0J1A |
1.5P |
62 |
13 |
- |
6.2 |
5 |
8 |
3 |
3 |
|
M8×1.25 |
P3 |
TCNR8.0N3A |
3P |
70 |
22 |
- |
6.2 |
5 |
8 |
3 |
3 |
|
M8×1.25 |
P3 |
TCNR8.0N1A |
1.5P |
70 |
22 |
- |
6.2 |
5 |
8 |
3 |
3 |
|
M8×1.25 |
P4 |
TCNS8.0N3A |
3P |
70 |
22 |
- |
6.2 |
5 |
8 |
3 |
3 |
|
M8×1.25 |
P4 |
TCNS8.0N1A |
1.5P |
70 |
22 |
- |
6.2 |
5 |
8 |
3 |
3 |
|
M8×1 |
P3 |
TCNR8.0M3A |
3P |
70 |
19 |
- |
6.2 |
5 |
8 |
3 |
3 |
|
M8×1 |
P3 |
TCNR8.0M1A |
1.5P |
70 |
19 |
- |
6.2 |
5 |
8 |
3 |
3 |
|
M8×0.75 |
P3 |
TCNR8.0J3A |
3P |
62 |
13 |
- |
6.2 |
5 |
8 |
3 |
3 |
|
M8×0.75 |
P3 |
TCNR8.0J1A |
1.5P |
62 |
13 |
- |
6.2 |
5 |
8 |
3 |
3 |
|
M10×1.5 |
P3 |
TCNR010O3A |
3P |
75 |
24 |
- |
7 |
5.5 |
8 |
3 |
3 |
|
M10×1.5 |
P3 |
TCNR010O1A |
1.5P |
75 |
24 |
- |
7 |
5.5 |
8 |
3 |
3 |
|
M10×1.5 |
P4 |
TCNS010O3A |
3P |
75 |
24 |
- |
7 |
5.5 |
8 |
3 |
3 |
|
M10×1.5 |
P4 |
TCNS010O1A |
1.5P |
75 |
24 |
- |
7 |
5.5 |
8 |
3 |
3 |
|
M10×1.25 |
P3 |
TCNR010N3A |
3P |
75 |
22 |
- |
7 |
5.5 |
8 |
3 |
3 |
|
M10×1.25 |
P3 |
TCNR010N1A |
1.5P |
75 |
22 |
- |
7 |
5.5 |
8 |
3 |
3 |
|
M10×1.25 |
P4 |
TCNS010N3A |
3P |
75 |
22 |
- |
7 |
5.5 |
8 |
3 |
3 |
|
M10×1.25 |
P4 |
TCNS010N1A |
1.5P |
75 |
22 |
- |
7 |
5.5 |
8 |
3 |
3 |
|
M10×1 |
P3 |
TCNR010M3A |
3P |
70 |
19 |
- |
7 |
5.5 |
8 |
3 |
3 |
|
M10×1 |
P3 |
TCNR010M1A |
1.5P |
70 |
19 |
- |
7 |
5.5 |
8 |
3 |
3 |
|
M10×1 |
P4 |
TCNS010M3A |
3P |
70 |
19 |
- |
7 |
5.5 |
8 |
3 |
3 |
|
M10×1 |
P4 |
TCNS010M1A |
1.5P |
70 |
19 |
- |
7 |
5.5 |
8 |
3 |
3 |
|
M12×1.75 |
P3 |
TCNR012P3A |
3P |
82 |
30 |
- |
8.5 |
6.5 |
9 |
3 |
3 |
|
M12×1.75 |
P3 |
TCNR012P1A |
1.5P |
82 |
30 |
- |
8.5 |
6.5 |
9 |
3 |
3 |
|
M12×1.75 |
P4 |
TCNS012P3A |
3P |
82 |
30 |
- |
8.5 |
6.5 |
9 |
3 |
3 |
|
M12×1.75 |
P4 |
TCNS012P1A |
1.5P |
82 |
30 |
- |
8.5 |
6.5 |
9 |
3 |
3 |
|
M12×1.5 |
P3 |
TCNR012O3A |
3P |
82 |
24 |
- |
8.5 |
6.5 |
9 |
3 |
3 |
|
M12×1.5 |
P3 |
TCNR012O1A |
1.5P |
82 |
24 |
- |
8.5 |
6.5 |
9 |
3 |
3 |
|
M12×1.5 |
P4 |
TCNS012O3A |
3P |
82 |
24 |
- |
8.5 |
6.5 |
9 |
3 |
3 |
|
M12×1.5 |
P4 |
TCNS012O1A |
1.5P |
82 |
24 |
- |
8.5 |
6.5 |
9 |
3 |
3 |
|
M12×1.25 |
P3 |
TCNR012N3A |
3P |
80 |
22 |
- |
8.5 |
6.5 |
9 |
3 |
3 |
|
M12×1.25 |
P3 |
TCNR012N1A |
1.5P |
80 |
22 |
- |
8.5 |
6.5 |
9 |
3 |
3 |
|
M12×1.25 |
P4 |
TCNS012N3A |
3P |
80 |
22 |
- |
8.5 |
6.5 |
9 |
3 |
3 |
|
M12×1.25 |
P4 |
TCNS012N1A |
1.5P |
80 |
22 |
- |
8.5 |
6.5 |
9 |
3 |
3 |
|
M12×1 |
P3 |
TCNR012M3A |
3P |
70 |
19 |
- |
8.5 |
6.5 |
9 |
3 |
3 |
|
M12×1 |
P3 |
TCNR012M1A |
1.5P |
70 |
19 |
- |
8.5 |
6.5 |
9 |
3 |
3 |
|
M14×2 |
P3 |
TCNR014Q3A |
3P |
88 |
30 |
34 |
10.5 |
8 |
11 |
4 |
4 |
|
M14×2 |
P3 |
TCNR014Q1A |
1.5P |
88 |
30 |
34 |
10.5 |
8 |
11 |
4 |
4 |
|
M14×2 |
P4 |
TCNS014Q3A |
3P |
88 |
30 |
34 |
10.5 |
8 |
11 |
4 |
4 |
|
M14×2 |
P4 |
TCNS014Q1A |
1.5P |
88 |
30 |
34 |
10.5 |
8 |
11 |
4 |
4 |
|
M14×1.5 |
P3 |
TCNR014O3A |
3P |
88 |
24 |
34 |
10.5 |
8 |
11 |
4 |
4 |
|
M14×1.5 |
P3 |
TCNR014O1A |
1.5P |
88 |
24 |
34 |
10.5 |
8 |
11 |
4 |
4 |
|
M14×1.5 |
P4 |
TCNS014O3A |
3P |
88 |
24 |
34 |
10.5 |
8 |
11 |
4 |
4 |
|
M14×1.5 |
P4 |
TCNS014O1A |
1.5P |
88 |
24 |
34 |
10.5 |
8 |
11 |
4 |
4 |
|
M14×1.25 |
P3 |
TCNR014N3A |
3P |
88 |
22 |
34 |
10.5 |
8 |
11 |
4 |
4 |
|
M14×1.25 |
P3 |
TCNR014N1A |
1.5P |
88 |
22 |
34 |
10.5 |
8 |
11 |
4 |
4 |
|
M14×1 |
P3 |
TCNR014M3A |
3P |
70 |
19 |
37 |
10.5 |
8 |
11 |
4 |
4 |
|
M14×1 |
P3 |
TCNR014M1A |
1.5P |
70 |
19 |
37 |
10.5 |
8 |
11 |
4 |
4 |
|
M14×1 |
P4 |
TCNS014M3A |
3P |
70 |
19 |
37 |
10.5 |
8 |
11 |
4 |
4 |
|
M14×1 |
P4 |
TCNS014M1A |
1.5P |
70 |
19 |
37 |
10.5 |
8 |
11 |
4 |
4 |
|
M16×2 |
P4 |
TCNS016Q3A |
3P |
95 |
30 |
37 |
12.5 |
10 |
13 |
4 |
4 |
|
M16×2 |
P4 |
TCNS016Q1A |
1.5P |
95 |
30 |
37 |
12.5 |
10 |
13 |
4 |
4 |
|
M16×1.5 |
P3 |
TCNR016O3A |
3P |
95 |
24 |
37 |
12.5 |
10 |
13 |
4 |
4 |
|
M16×1.5 |
P3 |
TCNR016O1A |
1.5P |
95 |
24 |
37 |
12.5 |
10 |
13 |
4 |
4 |
|
M16×1.5 |
P4 |
TCNS016O3A |
3P |
95 |
24 |
37 |
12.5 |
10 |
13 |
4 |
4 |
|
M16×1.5 |
P4 |
TCNS016O1A |
1.5P |
95 |
24 |
37 |
12.5 |
10 |
13 |
4 |
4 |
|
M16×1 |
P3 |
TCNR016M3A |
3P |
75 |
19 |
41 |
12.5 |
10 |
13 |
4 |
4 |
|
M16×1 |
P3 |
TCNR016M1A |
1.5P |
75 |
19 |
41 |
12.5 |
10 |
13 |
4 |
4 |
|
M18×2.5 |
P4 |
TCNS018R3A |
3P |
100 |
35 |
38 |
14 |
11 |
14 |
4 |
4 |
|
M18×2.5 |
P4 |
TCNS018R1A |
1.5P |
100 |
35 |
38 |
14 |
11 |
14 |
4 |
4 |
|
M18×1.5 |
P4 |
TCNS018O3A |
3P |
95 |
24 |
43 |
14 |
11 |
14 |
4 |
4 |
|
M18×1.5 |
P4 |
TCNS018O1A |
1.5P |
95 |
24 |
43 |
14 |
11 |
14 |
4 |
4 |
|
M20×2.5 |
P4 |
TCNS020R3A |
3P |
105 |
35 |
41 |
15 |
12 |
15 |
4 |
4 |
|
M20×2.5 |
P4 |
TCNS020R1A |
1.5P |
105 |
35 |
41 |
15 |
12 |
15 |
4 |
4 |
|
M20×1.5 |
P4 |
TCNS020O3A |
3P |
95 |
24 |
43 |
15 |
12 |
15 |
4 |
4 |
|
M20×1.5 |
P4 |
TCNS020O1A |
1.5P |
95 |
24 |
43 |
15 |
12 |
15 |
4 |
4 |
| แบรนด์สินค้า | YAMAWA |
|---|
เขียนรีวิวสินค้าของคุณเอง
