- The N-CT-SP is a cemented carbide spiral flute tap most suitable for blind hole mass production of aluminum castings (AC), aluminum die cast (ADC), zinc die cast (ZDC) etc.
Specification
Tapping Speeds depending on Materials
Segment：1L
|
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |

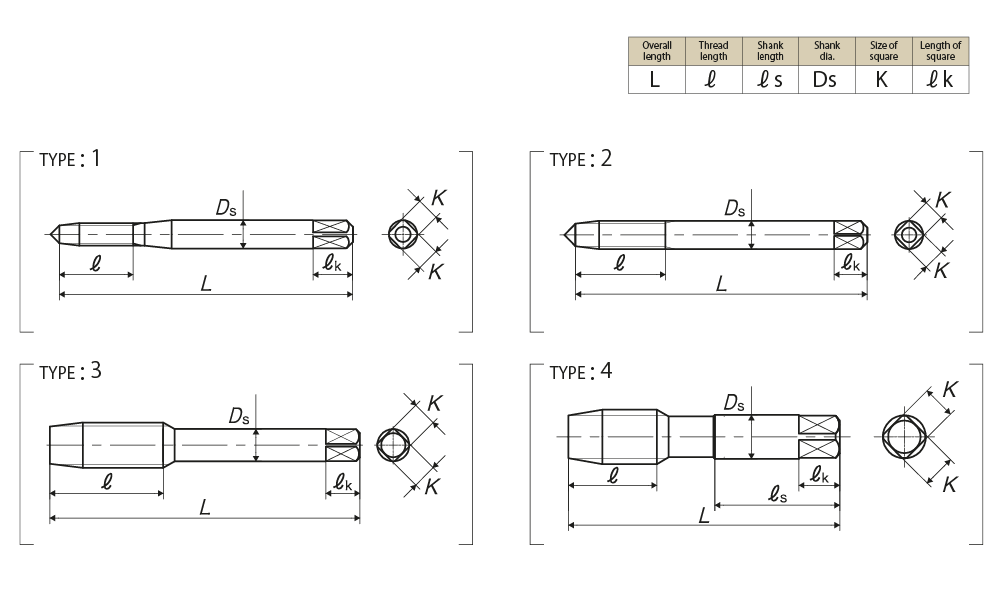

TYPE |
|
For Metric Threads |
|||||||||||
|
M3×0.5 |
P3 |
PCNR3.0G |
5P |
46 |
11 |
- |
4 |
3.2 |
6 |
3 |
1 |
|
M4×0.7 |
P3 |
PCNR4.0I |
5P |
52 |
13 |
- |
5 |
4 |
7 |
3 |
1 |
|
M5×0.8 |
P3 |
PCNR5.0K |
5P |
60 |
16 |
- |
5.5 |
4.5 |
7 |
3 |
1 |
|
M6×1 |
P3 |
PCNR6.0M |
5P |
62 |
19 |
- |
6 |
4.5 |
7 |
3 |
2 |
|
M8×1.25 |
P3 |
PCNR8.0N |
5P |
70 |
22 |
- |
6.2 |
5 |
8 |
3 |
3 |
|
M10×1.5 |
P4 |
PCNS010O |
5P |
75 |
24 |
- |
7 |
5.5 |
8 |
3 |
3 |
|
M10×1.25 |
P3 |
PCNR010N |
5P |
75 |
22 |
- |
7 |
5.5 |
8 |
3 |
3 |
|
M12×1.75 |
P4 |
PCNS012P |
5P |
82 |
30 |
- |
8.5 |
6.5 |
9 |
3 |
3 |
|
M12×1.5 |
P4 |
PCNS012O |
5P |
82 |
24 |
- |
8.5 |
6.5 |
9 |
3 |
3 |
|
M12×1.25 |
P4 |
PCNS012N |
5P |
80 |
22 |
- |
8.5 |
6.5 |
9 |
3 |
3 |
|
M14×2 |
P4 |
PCNS014Q |
5P |
88 |
30 |
34 |
10.5 |
8 |
11 |
3 |
4 |
|
M14×1.5 |
P4 |
PCNS014O |
5P |
88 |
24 |
34 |
10.5 |
8 |
11 |
3 |
4 |
|
M16×2 |
P4 |
PCNS016Q |
5P |
95 |
30 |
37 |
12.5 |
10 |
13 |
3 |
4 |
|
M16×1.5 |
P4 |
PCNS016O |
5P |
95 |
24 |
37 |
12.5 |
10 |
13 |
3 |
4 |
|
M18×2.5 |
P4 |
PCNS018R |
5P |
100 |
35 |
38 |
14 |
11 |
14 |
3 |
4 |
|
M18×1.5 |
P4 |
PCNS018O |
5P |
95 |
24 |
43 |
14 |
11 |
14 |
3 |
4 |
|
M20×2.5 |
P4 |
PCNS020R |
5P |
105 |
35 |
41 |
15 |
12 |
15 |
3 |
4 |
|
M20×1.5 |
P4 |
PCNS020O |
5P |
95 |
24 |
43 |
15 |
12 |
15 |
3 |
4 |
| แบรนด์สินค้า | YAMAWA |
|---|
