N-RS (Metric Threads)

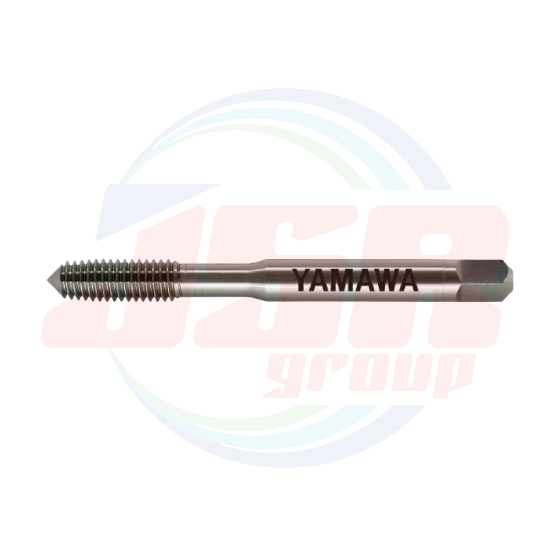

■ N+RS/N-RS are the forming taps suitable for non-ferrous materials such as aluminum castings, aluminum diecasting and brass.

・Product symbol is distinguished depend on the size.

N＋RS	～M6 (coarse thread)
N-RS	～M6 (fine threads), M7～, all U, all

Skip to the end of the images gallery

Skip to the beginning of the images gallery

N-RS (Metric Threads) | Roll Taps for Non-Ferrous Materials | YAMAWA

Details

Specification

Tapping Speeds depending on Materials

Recommended class

Segment：1J

Size	Class	Code	Chamfer	L (mm)	ℓ (mm)	ℓn (mm)	ℓs (mm)	Ds (mm)	K (mm)	ℓk (mm)	Lobe	TYPE
For Metric Threads
M2×0.25	G4	NRSM42.0BP	4P	42	4.5	-	27	3	2.5	5	4	3
M2×0.25	G4	NRSM42.0BB	2P	42	4.5	-	27	3	2.5	5	4	3
M2×0.25	G5	NRSM52.0BP	4P	42	4.5	-	27	3	2.5	5	4	3
M2×0.25	G5	NRSM52.0BB	2P	42	4.5	-	27	3	2.5	5	4	3
M2.5×0.35	G4	NRSM42.5DP	4P	46	6.3	14	29	3	2.5	5	4	5
M2.5×0.35	G4	NRSM42.5DB	2P	46	6.3	14	29	3	2.5	5	4	5
M2.5×0.35	G5	NRSM52.5DP	4P	46	6.3	14	29	3	2.5	5	4	5
M2.5×0.35	G5	NRSM52.5DB	2P	46	6.3	14	29	3	2.5	5	4	5
M2.6×0.35	G5	NRSM52.6DP	4P	46	6.3	14	29	3	2.5	5	4	5
M2.6×0.35	G5	NRSM52.6DB	2P	46	6.3	14	29	3	2.5	5	4	5
M2.6×0.35	G6	NRSM62.6DP	4P	46	6.3	14	29	3	2.5	5	4	5
M2.6×0.35	G6	NRSM62.6DB	2P	46	6.3	14	29	3	2.5	5	4	5
M3×0.35	G5	NRSM53.0DP	4P	46	6.5	14	26	4	3.2	6	4	5
M3×0.35	G5	NRSM53.0DB	2P	46	6.5	14	26	4	3.2	6	4	5
M3×0.35	G6	NRSM63.0DP	4P	46	6.5	14	26	4	3.2	6	4	5
M3×0.35	G6	NRSM63.0DB	2P	46	6.5	14	26	4	3.2	6	4	5
M3.5×0.35	G5	NRSM53.5DP	4P	52	6.5	16	29	5	4	7	4	5
M3.5×0.35	G5	NRSM53.5DB	2P	52	6.5	16	29	5	4	7	4	5
M3.5×0.35	G6	NRSM63.5DP	4P	52	6.5	16	29	5	4	7	4	5
M3.5×0.35	G6	NRSM63.5DB	2P	52	6.5	16	29	5	4	7	4	5
M4×0.5	G6	NRSM64.0GP	4P	52	9	17	29	5	4	7	4	5
M4×0.5	G6	NRSM64.0GB	2P	52	9	17	29	5	4	7	4	5
M4×0.5	G7	NRSM74.0GP	4P	52	9	17	29	5	4	7	4	5
M4×0.5	G7	NRSM74.0GB	2P	52	9	17	29	5	4	7	4	5
M5×0.5	G6	NRSM65.0GP	4P	60	9	22	33	5.5	4.5	7	4	5
M5×0.5	G6	NRSM65.0GB	2P	60	9	22	33	5.5	4.5	7	4	5
M5×0.5	G7	NRSM75.0GP	4P	60	9	22	33	5.5	4.5	7	4	5
M5×0.5	G7	NRSM75.0GB	2P	60	9	22	33	5.5	4.5	7	4	5
M6×0.75	G6	NRSM66.0JP	4P	62	15	26	33	6	4.5	7	4	4
M6×0.75	G6	NRSM66.0JB	2P	62	15	26	33	6	4.5	7	4	4
M6×0.75	G7	NRSM76.0JP	4P	62	15	26	33	6	4.5	7	4	4
M6×0.75	G7	NRSM76.0JB	2P	62	15	26	33	6	4.5	7	4	4
M6×0.5	G6	NRSM66.0GP	4P	62	9	26	33	6	4.5	7	4	5
M6×0.5	G6	NRSM66.0GB	2P	62	9	26	33	6	4.5	7	4	5
M7×1	G6	NRSM67.0MP	4P	70	19	-	36	6.2	5	8	4	6
M7×1	G6	NRSM67.0MB	2P	70	19	-	36	6.2	5	8	4	6
M7×1	G7	NRSM77.0MP	4P	70	19	-	36	6.2	5	8	4	6
M7×1	G7	NRSM77.0MB	2P	70	19	-	36	6.2	5	8	4	6
M7×0.75	G7	NRSM77.0JP	4P	70	19	-	36	6.2	5	8	4	6
M7×0.75	G7	NRSM77.0JB	2P	70	19	-	36	6.2	5	8	4	6
M8×1.25	G7	NRSM78.0NP	4P	70	19	-	36	6.2	5	8	6	6
M8×1.25	G7	NRSM78.0NB	2P	70	19	-	36	6.2	5	8	6	6
M8×1.25	G8	NRSM88.0NP	4P	70	19	-	36	6.2	5	8	6	6
M8×1.25	G8	NRSM88.0NB	2P	70	19	-	36	6.2	5	8	6	6
M8×1	G7	NRSM78.0MP	4P	70	19	-	36	6.2	5	8	6	6
M8×1	G7	NRSM78.0MB	2P	70	19	-	36	6.2	5	8	6	6
M8×0.75	G7	NRSM78.0JP	4P	70	19	-	36	6.2	5	8	6	6
M8×0.75	G7	NRSM78.0JB	2P	70	19	-	36	6.2	5	8	6	6
M10×1.5	G7	NRSM7010OP	4P	75	23	-	38	7	5.5	8	6	6
M10×1.5	G7	NRSM7010OB	2P	75	23	-	38	7	5.5	8	6	6
M10×1.5	G8	NRSM8010OP	4P	75	23	-	38	7	5.5	8	6	6
M10×1.5	G8	NRSM8010OB	2P	75	23	-	38	7	5.5	8	6	6
M10×1.25	G7	NRSM7010NP	4P	75	23	-	38	7	5.5	8	6	6
M10×1.25	G7	NRSM7010NB	2P	75	23	-	38	7	5.5	8	6	6
M10×1.25	G8	NRSM8010NP	4P	75	23	-	38	7	5.5	8	6	6
M10×1.25	G8	NRSM8010NB	2P	75	23	-	38	7	5.5	8	6	6
M10×1	G7	NRSM7010MP	4P	75	23	-	38	7	5.5	8	6	6
M10×1	G7	NRSM7010MB	2P	75	23	-	38	7	5.5	8	6	6
M12×1.75	G8	NRSM8012PP	4P	82	26	-	42	8.5	6.5	9	6	6
M12×1.75	G8	NRSM8012PB	2P	82	26	-	42	8.5	6.5	9	6	6
M12×1.75	G9	NRSM9012PP	4P	82	26	-	42	8.5	6.5	9	6	6
M12×1.75	G9	NRSM9012PB	2P	82	26	-	42	8.5	6.5	9	6	6
M12×1.5	G8	NRSM8012OP	4P	82	26	-	42	8.5	6.5	9	6	6
M12×1.5	G8	NRSM8012OB	2P	82	26	-	42	8.5	6.5	9	6	6
M12×1.5	G9	NRSM9012OP	4P	82	26	-	42	8.5	6.5	9	6	6
M12×1.5	G9	NRSM9012OB	2P	82	26	-	42	8.5	6.5	9	6	6
M12×1.25	G8	NRSM8012NP	4P	82	26	-	42	8.5	6.5	9	6	6
M12×1.25	G8	NRSM8012NB	2P	82	26	-	42	8.5	6.5	9	6	6
M12×1.25	G9	NRSM9012NP	4P	82	26	-	42	8.5	6.5	9	6	6
M12×1.25	G9	NRSM9012NB	2P	82	26	-	42	8.5	6.5	9	6	6
M12×1	G7	NRSM7012MP	4P	82	26	-	42	8.5	6.5	9	6	6
M12×1	G7	NRSM7012MB	2P	82	26	-	42	8.5	6.5	9	6	6
M14×2	G9	NRSM9014QP	4P	88	26	-	45	10.5	8	11	6	6
M14×2	G9	NRSM9014QB	2P	88	26	-	45	10.5	8	11	6	6
M14×2	G10	NRSM0014QP	4P	88	26	-	45	10.5	8	11	6	6
M14×2	G10	NRSM0014QB	2P	88	26	-	45	10.5	8	11	6	6
M14×1.5	G9	NRSM9014OP	4P	88	26	-	45	10.5	8	11	6	6
M14×1.5	G9	NRSM9014OB	2P	88	26	-	45	10.5	8	11	6	6
M14×1	G8	NRSM8014MP	4P	88	26	-	45	10.5	8	11	6	6
M14×1	G8	NRSM8014MB	2P	88	26	-	45	10.5	8	11	6	6
M16×2	G9	NRSM9016QP	4P	95	26	-	48	12.5	10	13	6	6
M16×2	G9	NRSM9016QB	2P	95	26	-	48	12.5	10	13	6	6
M16×2	G10	NRSM0016QP	4P	95	26	-	48	12.5	10	13	6	6
M16×2	G10	NRSM0016QB	2P	95	26	-	48	12.5	10	13	6	6
M16×1.5	G9	NRSM9016OP	4P	95	26	-	48	12.5	10	13	6	6
M16×1.5	G9	NRSM9016OB	2P	95	26	-	48	12.5	10	13	6	6
M16×1	G8	NRSM8016MP	4P	95	26	-	48	12.5	10	13	6	6
M16×1	G8	NRSM8016MB	2P	95	26	-	48	12.5	10	13	6	6
M18×1.5	G9	NRSM9018OP	4P	100	33	-	51	14	11	14	6	6
M18×1.5	G9	NRSM9018OB	2P	100	33	-	51	14	11	14	6	6
M20×2.5	G11	NRSM1020RP	4P	105	33	-	50	15	12	15	6	7
M20×2.5	G11	NRSM1020RB	2P	105	33	-	50	15	12	15	6	7
M20×1.5	G9	NRSM9020OP	4P	105	33	-	50	15	12	15	6	7
M20×1.5	G9	NRSM9020OB	2P	105	33	-	50	15	12	15	6	7
M20×1.5	G10	NRSM0020OP	4P	105	33	-	50	15	12	15	6	7
M20×1.5	G10	NRSM0020OB	2P	105	33	-	50	15	12	15	6	7

Number of oil grooves : Metric thread : M2.6 and smaller=non, M3 and larger=1　Unified thread : No.4 and smaller=non,

No.5 and larger=1　For M4 and smaller, external centers of 2 thread chamfer taps are removed.

M5 to M6 taps with 2P chamfer have internal center at the front end.
