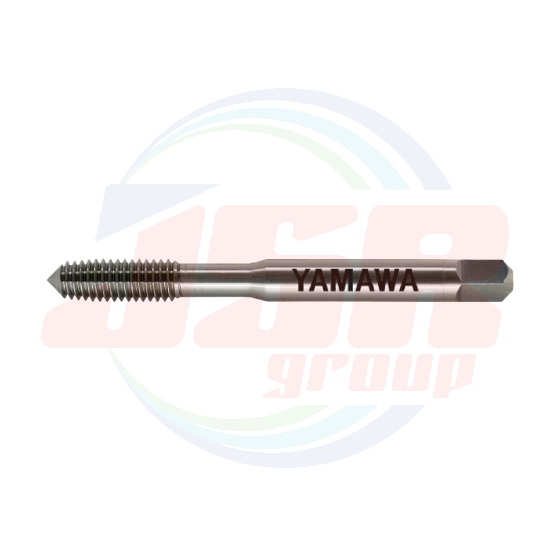

N+RS | Roll Taps for Non-Ferrous Materials | YAMAWA

YAMAWA
เป็นคนแรกที่รีวิวสินค้านี้
ราคาต่ำสุด THB 0.00 ราคาปรกติ THB 778.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
N+RS
เพิ่มไปยังรายการโปรด เพิ่มไปเปรียบเทียบ

■ N+RS/N-RS are the forming taps suitable for non-ferrous materials such as aluminum castings, aluminum diecasting and brass.


・Product symbol is distinguished depend on the size.

N＋RS ～M6 (coarse thread)
N-RS ～M6 (fine threads),
M7～, all U, all
N+RS | Roll Taps for Non-Ferrous Materials | YAMAWA
N+RS | Roll Taps for Non-Ferrous Materials | YAMAWA

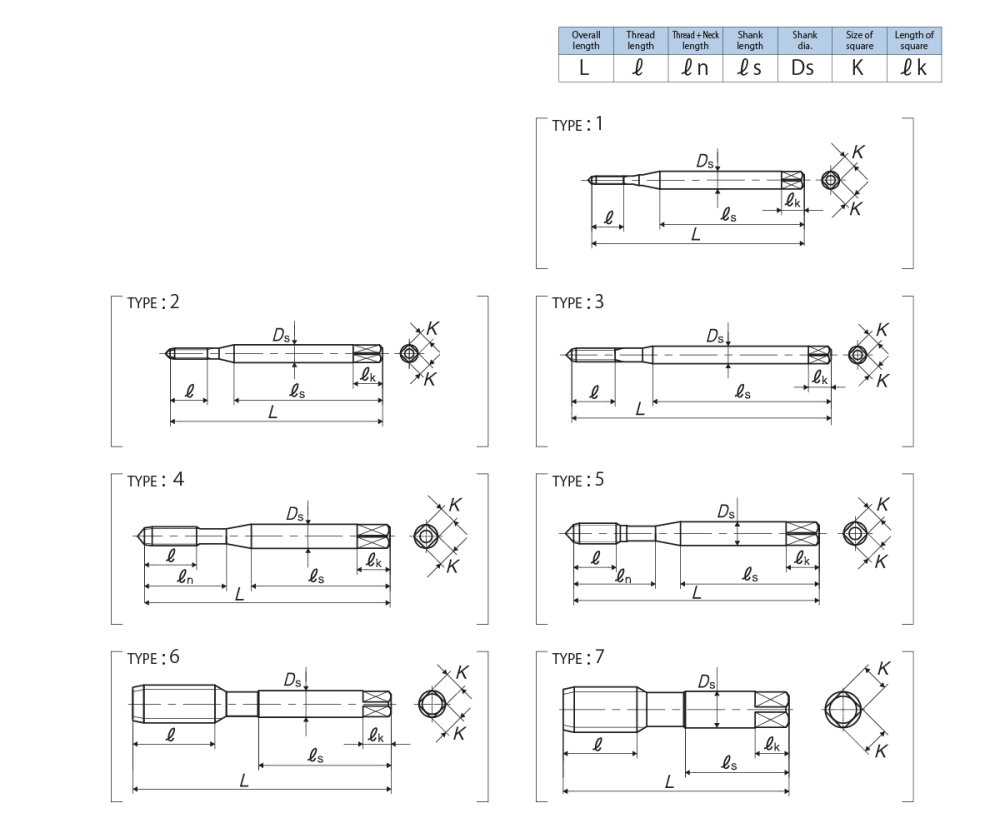

Specification



Tapping Speeds depending on Materials





Recommended class

Segment：1J

Size

Class

Code

Chamfer

L

(mm)

ℓ

(mm)

ℓn

(mm)

ℓs

(mm)

Ds

(mm)

K

(mm)

ℓk

(mm)

Lobe

TYPE

For Metric Threads

M1×0.25

G4

NRSP41.0BP

4P

36

4.5

-

24

3

2.5

5

4

1

M1×0.25

G4

NRSP41.0BB

2P

36

4.5

-

24

3

2.5

5

4

1

M1×0.25

G5

NRSP51.0BP

4P

36

4.5

-

24

3

2.5

5

4

1

M1×0.25

G5

NRSP51.0BB

2P

36

4.5

-

24

3

2.5

5

4

1

M1.2×0.25

G4

NRSP41.2BP

4P

36

4.5

-

24

3

2.5

5

4

1

M1.2×0.25

G4

NRSP41.2BB

2P

36

4.5

-

24

3

2.5

5

4

1

M1.2×0.25

G5

NRSP51.2BP

4P

36

4.5

-

24

3

2.5

5

4

1

M1.2×0.25

G5

NRSP51.2BB

2P

36

4.5

-

24

3

2.5

5

4

1

M1.4×0.3

G4

NRSP41.4CP

4P

36

5.4

-

24

3

2.5

5

4

1

M1.4×0.3

G4

NRSP41.4CB

2P

36

5.4

-

24

3

2.5

5

4

1

M1.4×0.3

G5

NRSP51.4CP

4P

36

5.4

-

24

3

2.5

5

4

1

M1.4×0.3

G5

NRSP51.4CB

2P

36

5.4

-

24

3

2.5

5

4

1

M1.6×0.35

G4

NRSP41.6DP

4P

36

6.3

-

24

3

2.5

5

4

2

M1.6×0.35

G4

NRSP41.6DB

2P

36

6.3

-

24

3

2.5

5

4

2

M1.6×0.35

G5

NRSP51.6DP

4P

36

6.3

-

24

3

2.5

5

4

2

M1.6×0.35

G5

NRSP51.6DB

2P

36

6.3

-

24

3

2.5

5

4

2

M1.6×0.35

G6

NRSP61.6DP

4P

36

6.3

-

24

3

2.5

5

4

2

M1.6×0.35

G6

NRSP61.6DB

2P

36

6.3

-

24

3

2.5

5

4

2

M1.7×0.35

G4

NRSP41.7DP

4P

36

6.3

-

24

3

2.5

5

4

2

M1.7×0.35

G4

NRSP41.7DB

2P

36

6.3

-

24

3

2.5

5

4

2

M1.7×0.35

G5

NRSP51.7DP

4P

36

6.3

-

24

3

2.5

5

4

2

M1.7×0.35

G5

NRSP51.7DB

2P

36

6.3

-

24

3

2.5

5

4

2

M1.7×0.35

G6

NRSP61.7DP

4P

36

6.3

-

24

3

2.5

5

4

2

M1.7×0.35

G6

NRSP61.7DB

2P

36

6.3

-

24

3

2.5

5

4

2

M1.8×0.35

G4

NRSP41.8DP

4P

42

6.3

-

27

3

2.5

5

4

2

M1.8×0.35

G4

NRSP41.8DB

2P

42

6.3

-

27

3

2.5

5

4

2

M1.8×0.35

G5

NRSP51.8DP

4P

42

6.3

-

27

3

2.5

5

4

2

M1.8×0.35

G5

NRSP51.8DB

2P

42

6.3

-

27

3

2.5

5

4

2

M2×0.4

G4

NRSP42.0EP

4P

42

7.2

-

27

3

2.5

5

4

3

M2×0.4

G4

NRSP42.0EB

2P

42

7.2

-

27

3

2.5

5

4

3

M2×0.4

G5

NRSP52.0EP

4P

42

7.2

-

27

3

2.5

5

4

3

M2×0.4

G5

NRSP52.0EB

2P

42

7.2

-

27

3

2.5

5

4

3

M2×0.4

G6

NRSP62.0EP

4P

42

7.2

-

27

3

2.5

5

4

3

M2×0.4

G6

NRSP62.0EB

2P

42

7.2

-

27

3

2.5

5

4

3

M2.3×0.4

G4

NRSP42.3EP

4P

42

7.2

-

27

3

2.5

5

4

3

M2.3×0.4

G4

NRSP42.3EB

2P

42

7.2

-

27

3

2.5

5

4

3

M2.3×0.4

G5

NRSP52.3EP

4P

42

7.2

-

27

3

2.5

5

4

3

M2.3×0.4

G5

NRSP52.3EB

2P

42

7.2

-

27

3

2.5

5

4

3

M2.3×0.4

G6

NRSP62.3EP

4P

42

7.2

-

27

3

2.5

5

4

3

M2.3×0.4

G6

NRSP62.3EB

2P

42

7.2

-

27

3

2.5

5

4

3

M2.5×0.45

G5

NRSP52.5FP

4P

46

8.1

14

29

3

2.5

5

4

4

M2.5×0.45

G5

NRSP52.5FB

2P

46

8.1

14

29

3

2.5

5

4

4

M2.5×0.45

G6

NRSP62.5FP

4P

46

8.1

14

29

3

2.5

5

4

4

M2.5×0.45

G6

NRSP62.5FB

2P

46

8.1

14

29

3

2.5

5

4

4

M2.6×0.45

G5

NRSP52.6FP

4P

46

8.1

14

29

3

2.5

5

4

4

M2.6×0.45

G5

NRSP52.6FB

2P

46

8.1

14

29

3

2.5

5

4

4

M2.6×0.45

G6

NRSP62.6FP

4P

46

8.1

14

29

3

2.5

5

4

4

M2.6×0.45

G6

NRSP62.6FB

2P

46

8.1

14

29

3

2.5

5

4

4

M3×0.5

G5

NRSP53.0GP

4P

46

9

14

26

4

3.2

6

4

4

M3×0.5

G5

NRSP53.0GB

2P

46

9

14

26

4

3.2

6

4

4

M3×0.5

G6

NRSP63.0GP

4P

46

9

14

26

4

3.2

6

4

4

M3×0.5

G6

NRSP63.0GB

2P

46

9

14

26

4

3.2

6

4

4

M3×0.5

G7

NRSP73.0GP

4P

46

9

14

26

4

3.2

6

4

4

M3×0.5

G7

NRSP73.0GB

2P

46

9

14

26

4

3.2

6

4

4

M3×0.5

G8

NRSP83.0GP

4P

46

9

14

26

4

3.2

6

4

4

M3×0.5

G8

NRSP83.0GB

2P

46

9

14

26

4

3.2

6

4

4

M3.5×0.6

G5

NRSP53.5HP

4P

52

11

16

29

5

4

7

4

4

M3.5×0.6

G5

NRSP53.5HB

2P

52

11

16

29

5

4

7

4

4

M3.5×0.6

G6

NRSP63.5HP

4P

52

11

16

29

5

4

7

4

4

M3.5×0.6

G6

NRSP63.5HB

2P

52

11

16

29

5

4

7

4

4

M3.5×0.6

G7

NRSP73.5HP

4P

52

11

16

29

5

4

7

4

4

M4×0.7

G5

NRSP54.0IP

4P

52

11

17

29

5

4

7

4

4

M4×0.7

G5

NRSP54.0IB

2P

52

11

17

29

5

4

7

4

4

M4×0.7

G6

NRSP64.0IP

4P

52

11

17

29

5

4

7

4

4

M4×0.7

G6

NRSP64.0IB

2P

52

11

17

29

5

4

7

4

4

M4×0.7

G7

NRSP74.0IP

4P

52

11

17

29

5

4

7

4

4

M4×0.7

G7

NRSP74.0IB

2P

52

11

17

29

5

4

7

4

4

M4×0.7

G8

NRSP84.0IP

4P

52

11

17

29

5

4

7

4

4

M4×0.7

G8

NRSP84.0IB

2P

52

11

17

29

5

4

7

4

4

M5×0.8

G5

NRSP55.0KP

4P

60

13

22

33

5.5

4.5

7

4

4

M5×0.8

G5

NRSP55.0KB

2P

60

13

22

33

5.5

4.5

7

4

4

M5×0.8

G6

NRSP65.0KP

4P

60

13

22

33

5.5

4.5

7

4

4

M5×0.8

G6

NRSP65.0KB

2P

60

13

22

33

5.5

4.5

7

4

4

M5×0.8

G7

NRSP75.0KP

4P

60

13

22

33

5.5

4.5

7

4

4

M5×0.8

G7

NRSP75.0KB

2P

60

13

22

33

5.5

4.5

7

4

4

M5×0.8

G8

NRSP85.0KB

2P

60

13

22

33

5.5

4.5

7

4

4

M6×1

G5

NRSP56.0MP

4P

62

15

26

33

6

4.5

7

4

4

M6×1

G5

NRSP56.0MB

2P

62

15

26

33

6

4.5

7

4

4

M6×1

G6

NRSP66.0MP

4P

62

15

26

33

6

4.5

7

4

4

M6×1

G6

NRSP66.0MB

2P

62

15

26

33

6

4.5

7

4

4

M6×1

G7

NRSP76.0MP

4P

62

15

26

33

6

4.5

7

4

4

M6×1

G7

NRSP76.0MB

2P

62

15

26

33

6

4.5

7

4

4

M6×1

G8

NRSP86.0MP

4P

62

15

26

33

6

4.5

7

4

4

M6×1

G8

NRSP86.0MB

2P

62

15

26

33

6

4.5

7

4

4




Number of oil grooves : Metric thread : M2.6 and smaller=non, M3 and larger=1　

Unified thread : No.4 and smaller=non, No.5 and larger=1　For M4 and smaller,

external centers of 2 thread chamfer taps are removed.

M5 to M6 taps with 2P chamfer have internal center at the front end.
