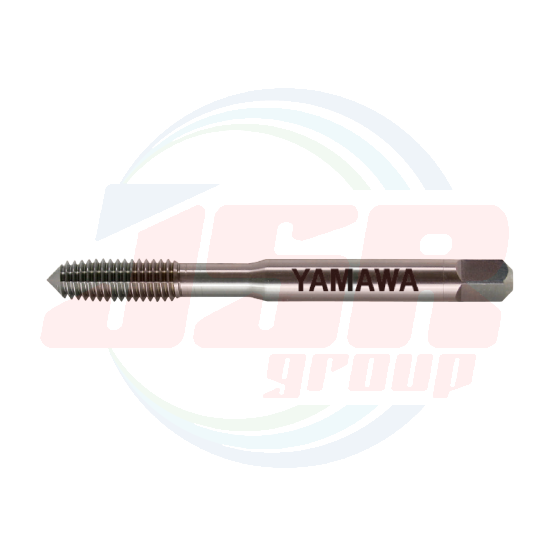

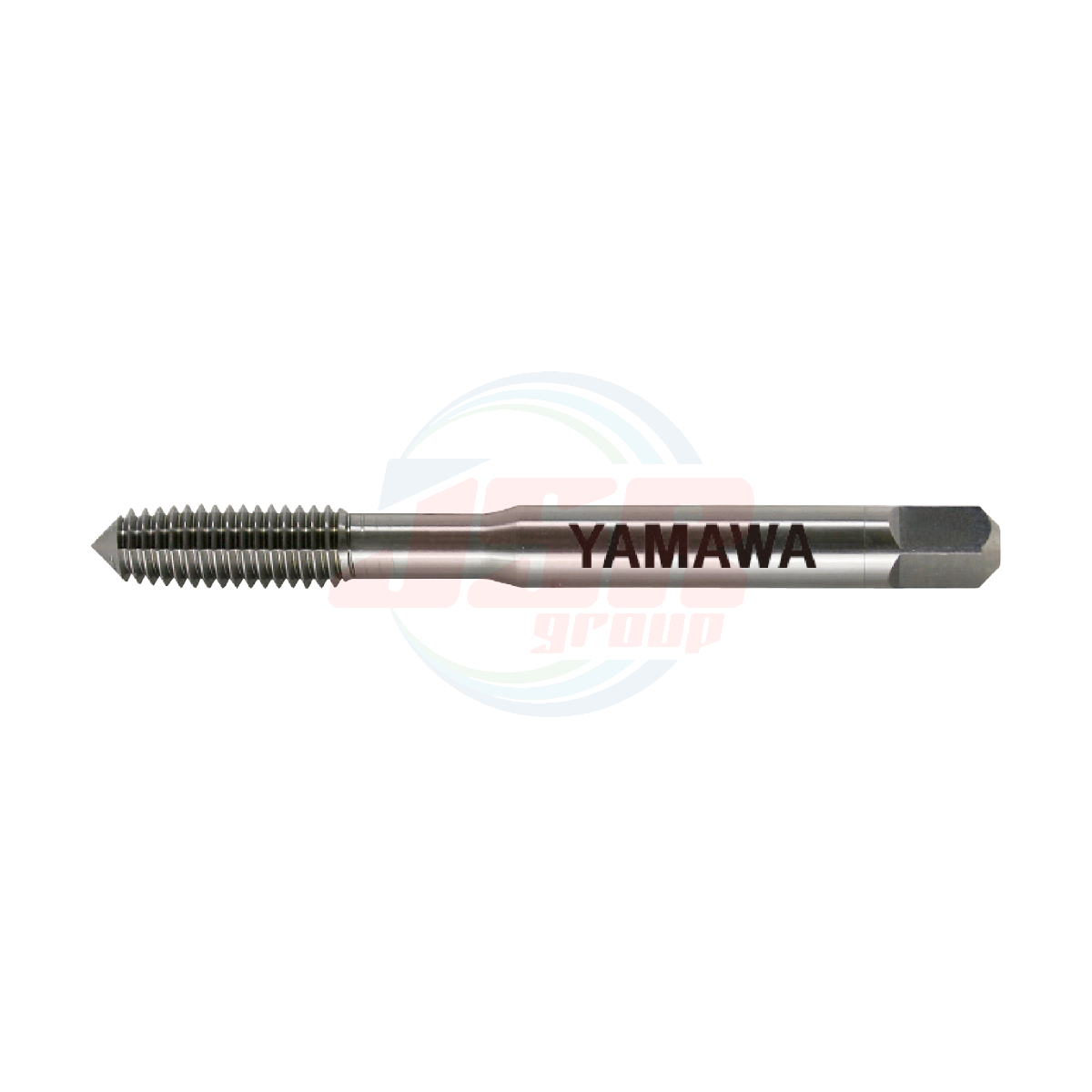

N-RS STI3X0.5 (RW3.0G3LENB) | Roll Taps for Nonferrous Materials (for Helical Coil Wire Screw Thread Inserts) | YAMAWA
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 607.48
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
RW3.0G3LENB
QTY:
1
- The roll tap is used to cut a comparatively soft material, such as aluminum, and taps an internal thread for accommodating a helical coil wire screw thread insert, in order to reinforce the internal thread and increase durability.
- Diameter of the internal screw threads into which the insert coil is inserted, is larger than that of the corresponding external screw threads by the thickness of the coil. Therefore, the internal screw thread diameter of the insert coil thread tap is also larger than its nominal diameter.
- The bored hole size needs to be also larger. Make sure to prepare an appropriate bored hole size before tapping.
- The shank diameter is also larger. Make sure to use an appropriate tap holder.
Specification
Tapping Speeds depending on Materials
|
Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
Lobe |
TYPE |
|
For Metric Threads |
|||||||||||||
|
M3× 0.5 |
G3 |
RW3.0G3LENP |
4P |
3.650 |
52 |
7.5 |
17 |
29 |
5 |
4 |
7 |
4 |
1 |
|
M3× 0.5 |
G3 |
RW3.0G3LENB |
2P |
3.650 |
52 |
7.5 |
17 |
29 |
5 |
4 |
7 |
4 |
1 |
|
M4× 0.7 |
G4 |
RW4.0I4LENP |
4P |
4.909 |
60 |
13 |
22 |
33 |
5.5 |
4.5 |
7 |
4 |
1 |
|
M4× 0.7 |
G4 |
RW4.0I4LENB |
2P |
4.909 |
60 |
13 |
22 |
33 |
5.5 |
4.5 |
7 |
4 |
1 |
|
M5× 0.8 |
G4 |
RW5.0K4LENP |
4P |
6.039 |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
4 |
1 |
|
M5× 0.8 |
G4 |
RW5.0K4LENB |
2P |
6.039 |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
4 |
1 |
|
M6× 1 |
G4 |
RW6.0M4LENP |
4P |
7.299 |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
4 |
2 |
|
M6× 1 |
G4 |
RW6.0M4LENB |
2P |
7.299 |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
4 |
2 |
|
M8× 1.25 |
G4 |
RW8.0N4LENP |
4P |
9.624 |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
6 |
2 |
|
M8× 1.25 |
G4 |
RW8.0N4LENB |
2P |
9.624 |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
6 |
2 |
|
M10× 1.5 |
G5 |
RW010O5LENP |
4P |
11.948 |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
6 |
2 |
|
M10× 1.5 |
G5 |
RW010O5LENB |
2P |
11.948 |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
6 |
2 |
|
M10× 1.25 |
G5 |
RW010N5LENP |
4P |
11.624 |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
6 |
2 |
|
M10× 1.25 |
G5 |
RW010N5LENB |
2P |
11.624 |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
6 |
2 |
|
M12× 1.75 |
G6 |
RW012P6LENP |
4P |
14.273 |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
6 |
2 |
|
M12× 1.75 |
G6 |
RW012P6LENB |
2P |
14.273 |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
6 |
2 |
|
M12× 1.5 |
G6 |
RW012O6LENP |
4P |
13.948 |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
6 |
2 |
|
M12× 1.5 |
G6 |
RW012O6LENB |
2P |
13.948 |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
6 |
2 |
|
M12× 1.25 |
G6 |
RW012N6LENP |
4P |
13.624 |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
6 |
2 |
|
M12× 1.25 |
G6 |
RW012N6LENB |
2P |
13.624 |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
6 |
2 |
Segment：1J
: Recommended class
No. of oil grooves: STI metric thread: 1
For M6 or less, the chamfer-2P convex center is removed.
| แบรนด์สินค้า | YAMAWA |
|---|---|
| Order No. | M3x0.5 (RW3.0G3LENB) |
| Model | N-RS STI |
| Size | M3X0.5 |
| Class | G3 |
| Chamfer | 2P |
| Overall length (L) | 52 |
| Thread length (ℓ) | 7.5 |
| Thread + Neck length (ℓn) | 17 |
| Shank length (ℓs) | 29 |
| Shank dia. (Ds) | 5 |
| Size of Square (K) | 4 |
| Length of square (ℓk) | 7 |
