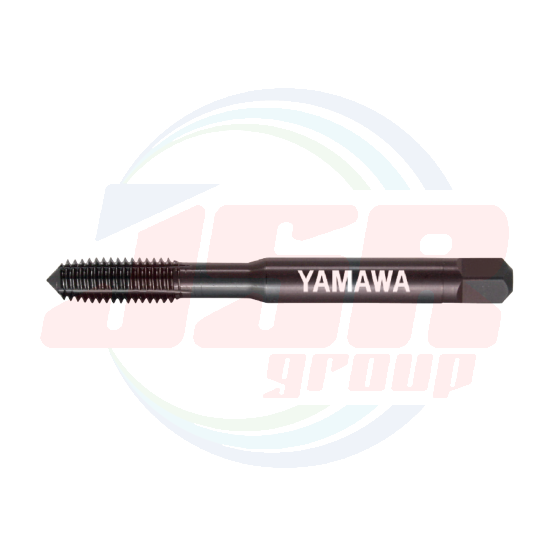

N-RZ16X1.5 (NRZM9016OP) | Roll Taps for Steels | YAMAWA

เป็นคนแรกที่รีวิวสินค้านี้

ราคาพิเศษ THB 0.00 ราคาปรกติ THB 1,743.00

*ราคายังไม่รวม VAT

พร้อมส่ง

SKU

NRZM9016OP

QTY:

N+RZ/N-RZ are the forming taps suitable for ferrous materials such as carbon steels, alloy steels, and normal steels.

・Product symbol is distinguished depend on the size.

N＋RZ	～M6 (coarse thread)
N−RZ	～M6 (fine threads), M7～, all U, all

Skip to the end of the images gallery

Skip to the beginning of the images gallery

N-RZ16X1.5 (NRZM9016OP) | Roll Taps for Steels | YAMAWA

Details

Specification

Tapping Speeds depending on Materials

Recommended class

Segment：1J

Size	Class	Code	Chamfer	L (mm)	ℓ (mm)	ℓn (mm)	ℓs (mm)	Ds (mm)	K (mm)	ℓk (mm)	Lobe	TYPE
For Metric Threads
M2×0.25	G4	NRZM42.0BP	4P	42	4.5	-	27	3	2.5	5	4	3
M2×0.25	G4	NRZM42.0BB	2P	42	4.5	-	27	3	2.5	5	4	3
M2×0.25	G5	NRZM52.0BP	4P	42	4.5	-	27	3	2.5	5	4	3
M2×0.25	G5	NRZM52.0BB	2P	42	4.5	-	27	3	2.5	5	4	3
M2.5×0.35	G5	NRZM52.5DP	4P	46	6.3	14	29	3	2.5	5	4	5
M2.5×0.35	G5	NRZM52.5DB	2P	46	6.3	14	29	3	2.5	5	4	5
M2.6×0.35	G5	NRZM52.6DP	4P	46	6.3	14	29	3	2.5	5	4	5
M2.6×0.35	G5	NRZM52.6DB	2P	46	6.3	14	29	3	2.5	5	4	5
M3×0.35	G5	NRZM53.0DP	4P	46	6.5	14	26	4	3.2	6	4	5
M3×0.35	G5	NRZM53.0DB	2P	46	6.5	14	26	4	3.2	6	4	5
M4×0.5	G5	NRZM54.0GP	4P	52	9	17	29	5	4	7	4	5
M4×0.5	G5	NRZM54.0GB	2P	52	9	17	29	5	4	7	4	5
M4×0.5	G6	NRZM64.0GP	4P	52	9	17	29	5	4	7	4	5
M4×0.5	G6	NRZM64.0GB	2P	52	9	17	29	5	4	7	4	5
M4×0.5	G7	NRZM74.0GB	2P	52	9	17	29	5	4	7	4	5
M5×0.5	G6	NRZM65.0GP	4P	60	9	22	33	5.5	4.5	7	4	5
M5×0.5	G6	NRZM65.0GB	2P	60	9	22	33	5.5	4.5	7	4	5
M6×0.75	G6	NRZM66.0JP	4P	62	15	26	33	6	4.5	7	4	4
M6×0.75	G6	NRZM66.0JB	2P	62	15	26	33	6	4.5	7	4	4
M6×0.75	G7	NRZM76.0JP	4P	62	15	26	33	6	4.5	7	4	4
M6×0.75	G7	NRZM76.0JB	2P	62	15	26	33	6	4.5	7	4	4
M6×0.5	G6	NRZM66.0GP	4P	62	9	26	33	6	4.5	7	4	5
M6×0.5	G6	NRZM66.0GB	2P	62	9	26	33	6	4.5	7	4	5
M7×1	G7	NRZM77.0MP	4P	70	19	-	36	6.2	5	8	4	6
M7×1	G7	NRZM77.0MB	2P	70	19	-	36	6.2	5	8	4	6
M7×0.75	G7	NRZM77.0JP	4P	70	19	-	36	6.2	5	8	4	6
M7×0.75	G7	NRZM77.0JB	2P	70	19	-	36	6.2	5	8	4	6
M8×1.25	G7	NRZM78.0NP	4P	70	19	-	36	6.2	5	8	6	6
M8×1.25	G7	NRZM78.0NB	2P	70	19	-	36	6.2	5	8	6	6
M8×1.25	G8	NRZM88.0NP	4P	70	19	-	36	6.2	5	8	6	6
M8×1.25	G8	NRZM88.0NB	2P	70	19	-	36	6.2	5	8	6	6
M8×1	G7	NRZM78.0MP	4P	70	19	-	36	6.2	5	8	6	6
M8×1	G7	NRZM78.0MB	2P	70	19	-	36	6.2	5	8	6	6
M8×0.75	G7	NRZM78.0JP	4P	70	19	-	36	6.2	5	8	6	6
M8×0.75	G7	NRZM78.0JB	2P	70	19	-	36	6.2	5	8	6	6
M10×1.5	G7	NRZM7010OP	4P	75	23	-	38	7	5.5	8	8	6
M10×1.5	G7	NRZM7010OB	2P	75	23	-	38	7	5.5	8	8	6
M10×1.5	G8	NRZM8010OP	4P	75	23	-	38	7	5.5	8	8	6
M10×1.5	G8	NRZM8010OB	2P	75	23	-	38	7	5.5	8	8	6
M10×1.25	G7	NRZM7010NP	4P	75	23	-	38	7	5.5	8	8	6
M10×1.25	G7	NRZM7010NB	2P	75	23	-	38	7	5.5	8	8	6
M10×1.25	G8	NRZM8010NP	4P	75	23	-	38	7	5.5	8	8	6
M10×1.25	G8	NRZM8010NB	2P	75	23	-	38	7	5.5	8	8	6
M10×1	G7	NRZM7010MP	4P	75	23	-	38	7	5.5	8	8	6
M10×1	G7	NRZM7010MB	2P	75	23	-	38	7	5.5	8	8	6
M12×1.75	G8	NRZM8012PP	4P	82	26	-	42	8.5	6.5	9	8	6
M12×1.75	G8	NRZM8012PB	2P	82	26	-	42	8.5	6.5	9	8	6
M12×1.75	G9	NRZM9012PP	4P	82	26	-	42	8.5	6.5	9	8	6
M12×1.75	G9	NRZM9012PB	2P	82	26	-	42	8.5	6.5	9	8	6
M12×1.5	G8	NRZM8012OP	4P	82	26	-	42	8.5	6.5	9	8	6
M12×1.5	G8	NRZM8012OB	2P	82	26	-	42	8.5	6.5	9	8	6
M12×1.5	G9	NRZM9012OP	4P	82	26	-	42	8.5	6.5	9	8	6
M12×1.5	G9	NRZM9012OB	2P	82	26	-	42	8.5	6.5	9	8	6
M12×1.25	G8	NRZM8012NP	4P	82	26	-	42	8.5	6.5	9	8	6
M12×1.25	G8	NRZM8012NB	2P	82	26	-	42	8.5	6.5	9	8	6
M12×1.25	G9	NRZM9012NP	4P	82	26	-	42	8.5	6.5	9	8	6
M12×1.25	G9	NRZM9012NB	2P	82	26	-	42	8.5	6.5	9	8	6
M12×1	G7	NRZM7012MP	4P	82	26	-	42	8.5	6.5	9	8	6
M12×1	G7	NRZM7012MB	2P	82	26	-	42	8.5	6.5	9	8	6
M14×2	G9	NRZM9014QP	4P	88	26	-	45	10.5	8	11	8	6
M14×2	G9	NRZM9014QB	2P	88	26	-	45	10.5	8	11	8	6
M14×2	G10	NRZM0014QP	4P	88	26	-	45	10.5	8	11	8	6
M14×2	G10	NRZM0014QB	2P	88	26	-	45	10.5	8	11	8	6
M14×1.5	G9	NRZM9014OP	4P	88	26	-	45	10.5	8	11	8	6
M14×1.5	G9	NRZM9014OB	2P	88	26	-	45	10.5	8	11	8	6
M14×1	G8	NRZM8014MP	4P	88	26	-	45	10.5	8	11	8	6
M14×1	G8	NRZM8014MB	2P	88	26	-	45	10.5	8	11	8	6
M16×2	G9	NRZM9016QP	4P	95	26	-	48	12.5	10	13	8	6
M16×2	G9	NRZM9016QB	2P	95	26	-	48	12.5	10	13	8	6
M16×2	G10	NRZM0016QP	4P	95	26	-	48	12.5	10	13	8	6
M16×2	G10	NRZM0016QB	2P	95	26	-	48	12.5	10	13	8	6
M16×1.5	G9	NRZM9016OP	4P	95	26	-	48	12.5	10	13	8	6
M16×1.5	G9	NRZM9016OB	2P	95	26	-	48	12.5	10	13	8	6
M16×1	G8	NRZM8016MP	4P	95	26	-	48	12.5	10	13	8	6
M16×1	G8	NRZM8016MB	2P	95	26	-	48	12.5	10	13	8	6
M18×1.5	G10	NRZM0018OP	4P	100	33	-	51	14	11	14	8	6
M20×1.5	G9	NRZM9020OP	4P	105	33	-	50	15	12	15	8	7
M20×1.5	G9	NRZM9020OB	2P	105	33	-	50	15	12	15	8	7
M20×1.5	G10	NRZM0020OP	4P	105	33	-	50	15	12	15	8	7
M20×1.5	G10	NRZM0020OB	2P	105	33	-	50	15	12	15	8	7

Number of oil grooves : Metric thread : M2.6 and smaller=non,
M3〜M7=4, M8=3, M10 and larger=4
For M4 and smaller, external centers of 2 thread chamfer taps are removed.
M5 to M6 taps with 2P chamfer have a center hole at the front end.

More Information

ข้อมูลเพิ่มเติม
แบรนด์สินค้า	YAMAWA
Order No.	M16x1.5 (NRZM9016OP)
Model	AL-HT STI
Size	M16X1.5
Class	G9
Chamfer	4P
Overall length (L)	95
Thread length (ℓ)	26
Thread + Neck length (ℓn)	-
Shank length (ℓs)	48
Shank dia. (Ds)	12.5
Size of Square (K)	10
Length of square (ℓk)	13

Dimension
