Product Features

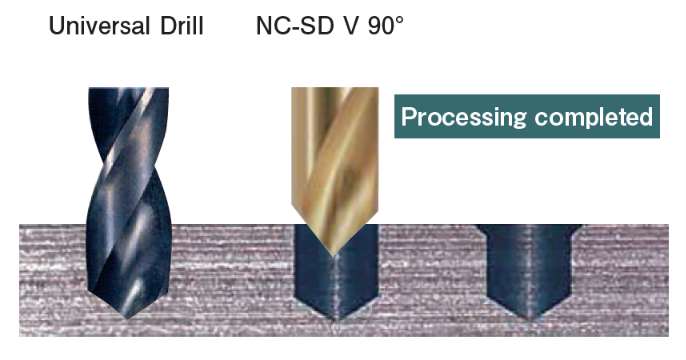

● After drilling with a general purpose drill, using a NC - SD V (90°) that is larger than the drilled hole diameter makes an excellent chamfer surface finish.

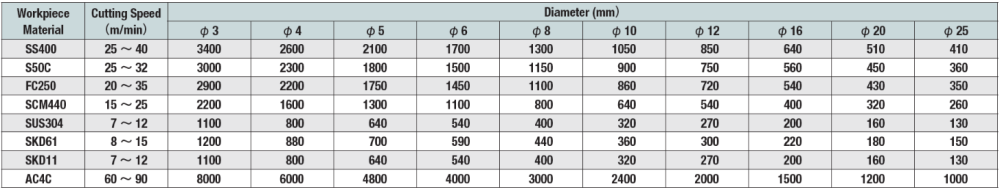

Recommended cutting conditions.
Unit：min⁻¹
- Standard feed rates (mm / rev) should be 1% to 3% of the drill diameter. In the case of machining on a curved surface or an inclined surface, please
set a consistent feed rate of 0.1 mm / rev.
Specification

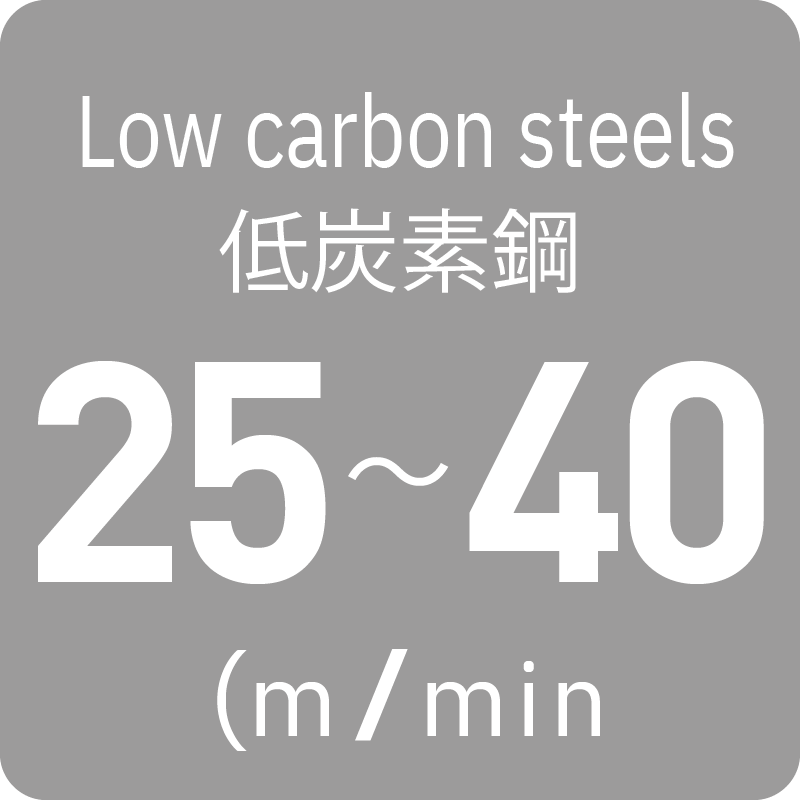

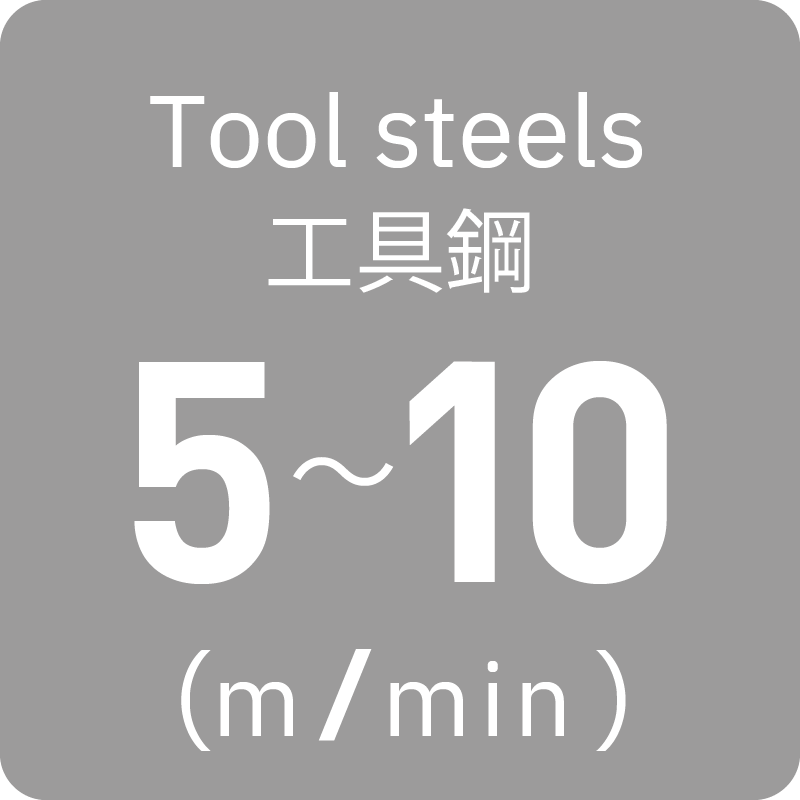

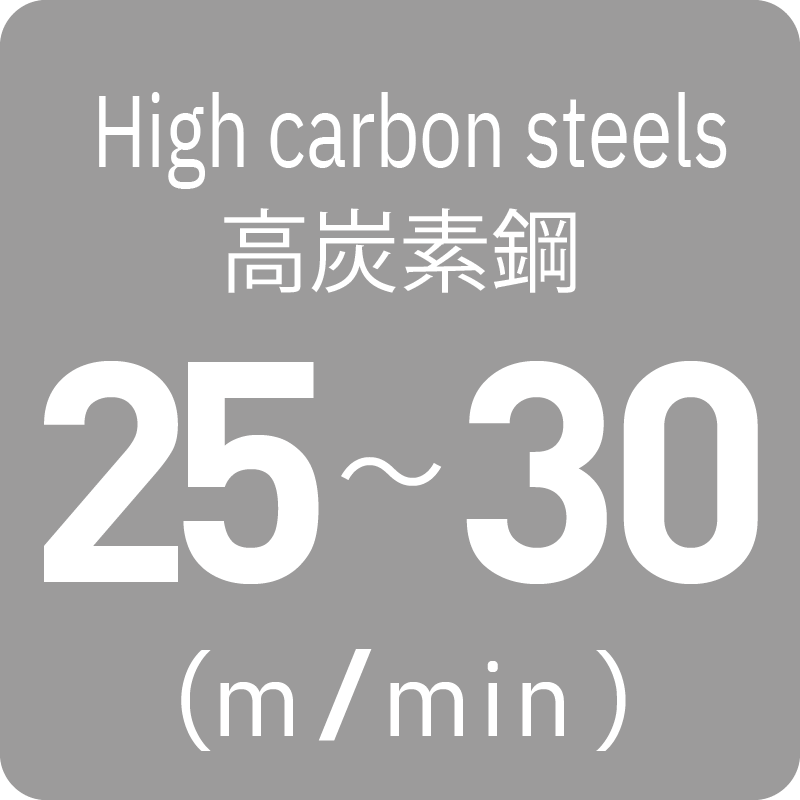

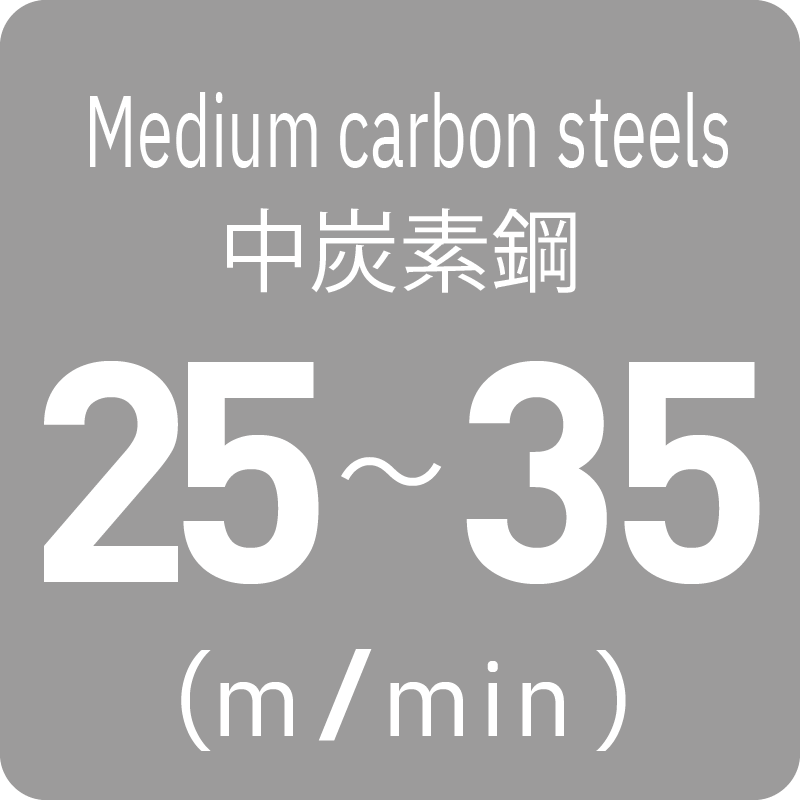

Cutting Speed depending on Materials
Segment：56
|

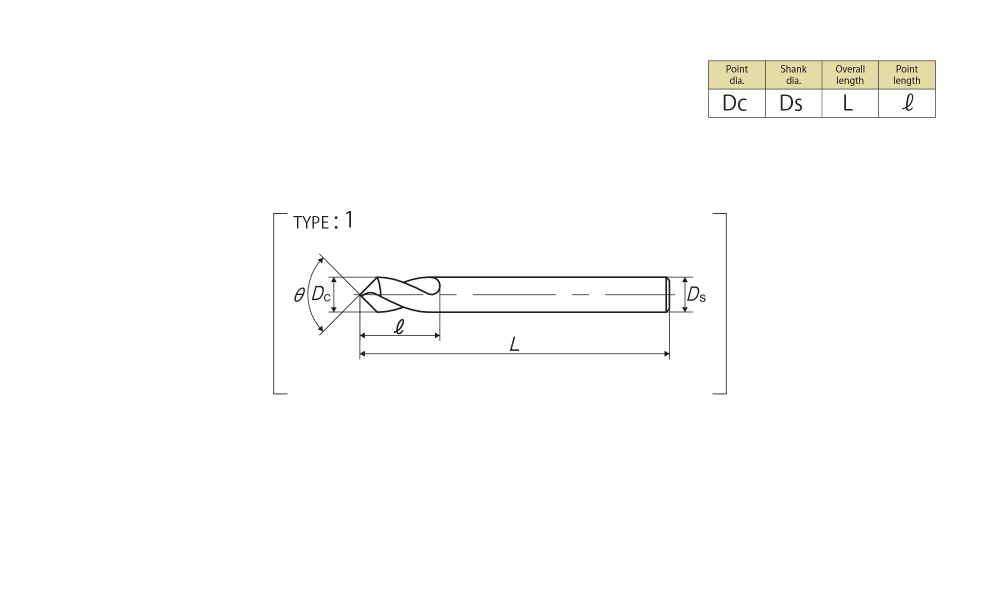

Size Dc × θ |
Code |
Dc (mm) |
Ds (mm) |
L (mm) |
ℓ (mm) |
TYPE |
|
3 × 90゜ |
VCS-D3.0Q |
3 |
3 |
46 |
10 |
1 |
|
4 × 90゜ |
VCS-D4.0Q |
4 |
4 |
55 |
12 |
1 |
|
5 × 90゜ |
VCS-D5.0Q |
5 |
5 |
62 |
13 |
1 |
|
6 × 90゜ |
VCS-D6.0Q |
6 |
6 |
66 |
15 |
1 |
|
8 × 90゜ |
VCS-D8.0Q |
8 |
8 |
79 |
20 |
1 |
|
10 × 90゜ |
VCS-D010Q |
10 |
10 |
89 |
23 |
1 |
|
12 × 90゜ |
VCS-D012Q |
12 |
12 |
102 |
26 |
1 |
|
16 × 90゜ |
VCS-D016Q |
16 |
16 |
115 |
32 |
1 |
|
20 × 90゜ |
VCS-D020Q |
20 |
20 |
131 |
40 |
1 |
|
25 × 90゜ |
VCS-D025Q |
25 |
25 |
151 |
50 |
1 |
| แบรนด์สินค้า | YAMAWA |
|---|
