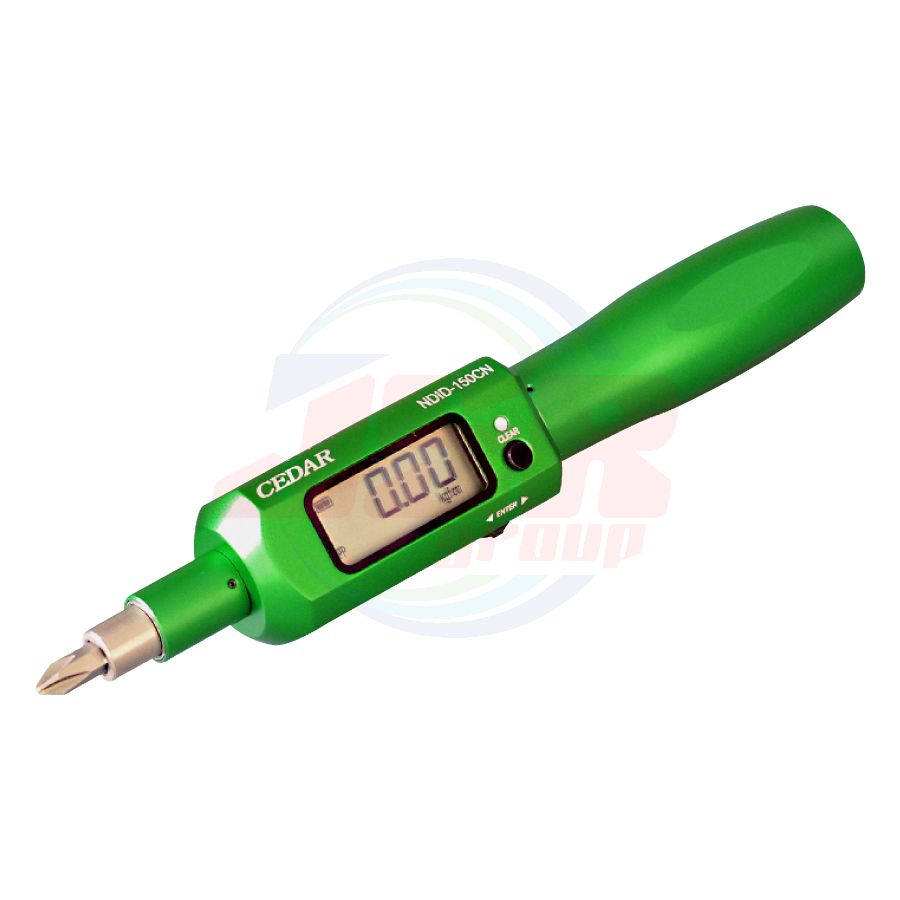

NDID-150CN | DIGITAL TORQUE DRIVER - NDID-150CN | CEDAR
THB 0.00
พร้อมส่ง
SKU
NDID-150CN

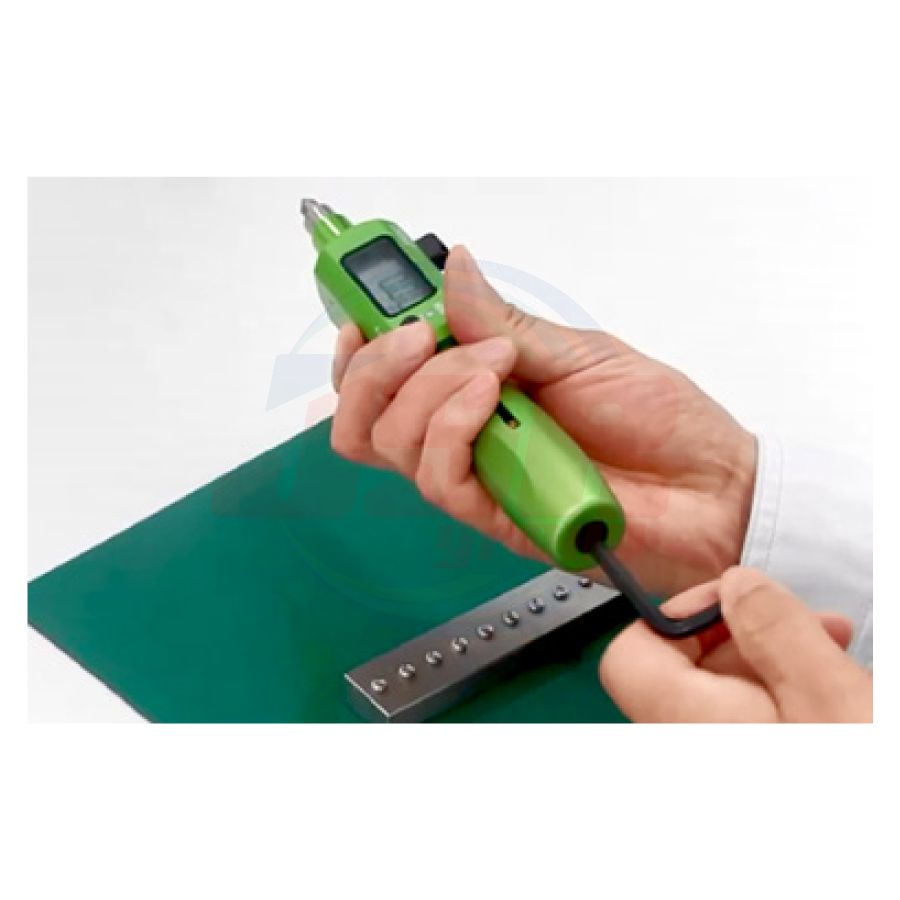

For tightening and final check of screws & bolts
Idling type Digital Torque Driver
Idling type Torque Driver which enable to count Qty of Torque and tightened number by tightening with clicking noise.
When the torque is reached certain value, the clutch is automatically disengaged and idling, so there is no worry of over tightening.
• Enable to adjust Drag torque
• Manage tightening torque and Qty of tightened torque
• Record data of peak torque and torque fluctuation
• Save and transfer data to USB memory
• A smart and functional form
• Attached USB Memory
| Order No. | NDID-150CN | |||||||||||||||
| Range |
0.20 ~ 15.30 kgf•cm 0.18 ~ 13.28 lbf•in (Selectable) 0.020 ~ 1.500N•m |
|||||||||||||||
| Accuracy(*) |
+/- (1% + 1digit) (0.30 - 15.0 kgf•cm) |
|||||||||||||||
| Operation Temp |
10 ~ 35 °C (Storage Temp 0 ~ 45 °C) |
|||||||||||||||
| Measurement mode |
|
|||||||||||||||
| Memory Function |
|
|||||||||||||||
| Battery |
Ni-MH Charge cycles : over 300 times (Time : about 3 hours) |
|||||||||||||||
| Auto power off |
3 minutes (Releasable) |
|||||||||||||||
| Accessories |
AC adapter Bit #1,2 Hex erwnch USB memory Certification of calibration |
|||||||||||||||
(*) Don’t include the accuracy of the torque which GRIP-slip rotates.
