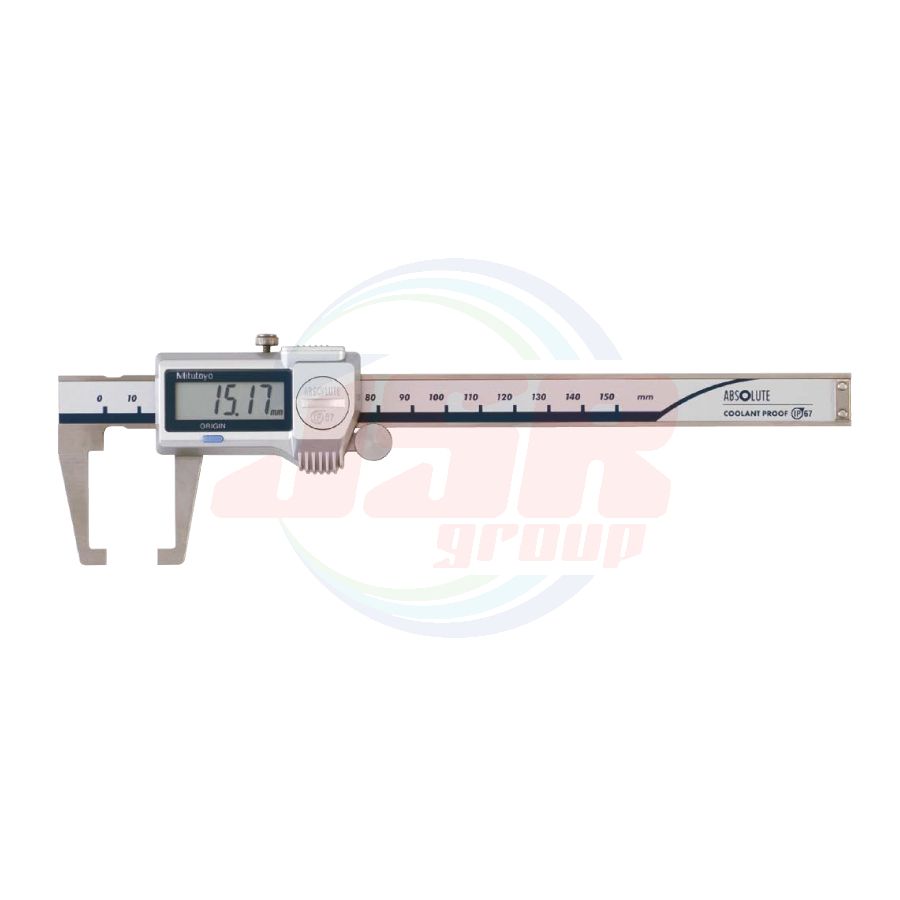

Neck Caliper SERIES 573 — ABSOLUTE Digimatic Type | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 12,750.12
พร้อมส่ง
SKU
NECK-CALIPER

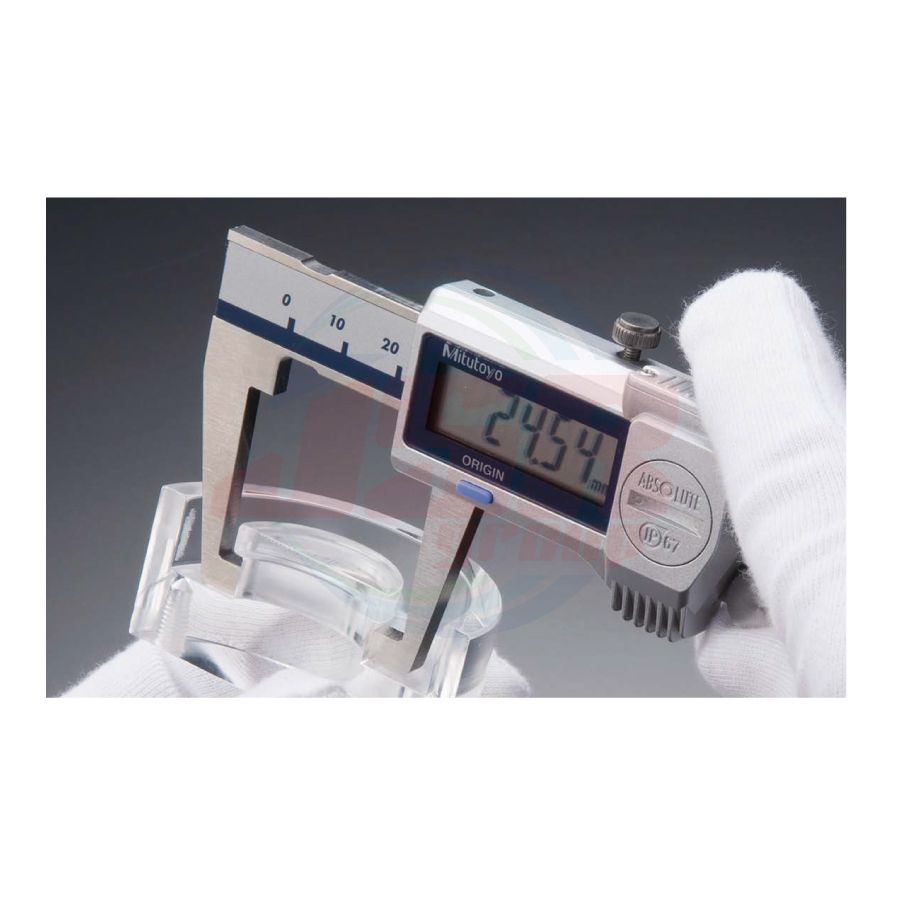

• Can measure wall thickness, inside bores, and recesses.
SPECIFICATIONS
Metric ___ Digimatic model
| Order No. | Range (mm) | Resolution (mm) | Maximum permissible error (mm)*³ | |
| E MPE | S MPE | |||
| 573-651-20 | 0 - 150 | 0.01 | ±0.03 | |
| 573-652-20*¹ | 0 - 150 | |||
| 573-653-20*² | 0 - 150 | |||
| 573-654-20*¹*² | 0 - 150 | |||
Inch / Metric ___ Digimatic model
| Order No. | Range | Resolution | Maximum permissible error*³ | |
| E MPE | S MPE | |||
| 573-751-20 | 0 - 6 in/ 0 - 150 mm |
0.0005 in/ 0.01 mm | ±0.0015 in/ ±0.03 mm |
- |
| 573-752-20*¹ | 0 - 6 in/ 0 - 150 mm |
|||
• Dust / Water protection level: IP67 (IEC 60529)*4
• Power source: SR44 battery (1 pc.), 938882 included as standard (for operational checks)
• Battery life: Approx. 5 years under normal use
• Position detection method: ABSOLUTE electromagnetic induction linear encoder
• Response speed: Unlimited

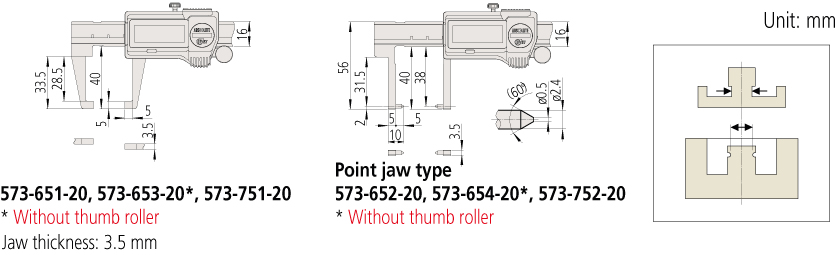

*1 Point jaw type
*2 Without thumb roller
*3 The Partial Surface Contact Error (E MPE) and Shift Error (S MPE) are terms defined by ISO 13385-1:2019.
*4 Rustproofing shall be applied after use if caliper was in contact with coolant.
| แบรนด์สินค้า | MITUTOYO |
|---|
