NF1030 | Mini Holders - NogaFlex holder | NOGA
THB 0.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
NF1030
QTY:
12
NogaFlex holder with on / off magnet - NF1021 / NF1024
• Powerful on/off magnetic base.
• Five axis holder.
• Holds indicator with stem and dovetail.
• Instant fixation in any position.
• Central locking mechanism with NOGA designed spring loaded bearing.
• Black finished arms.

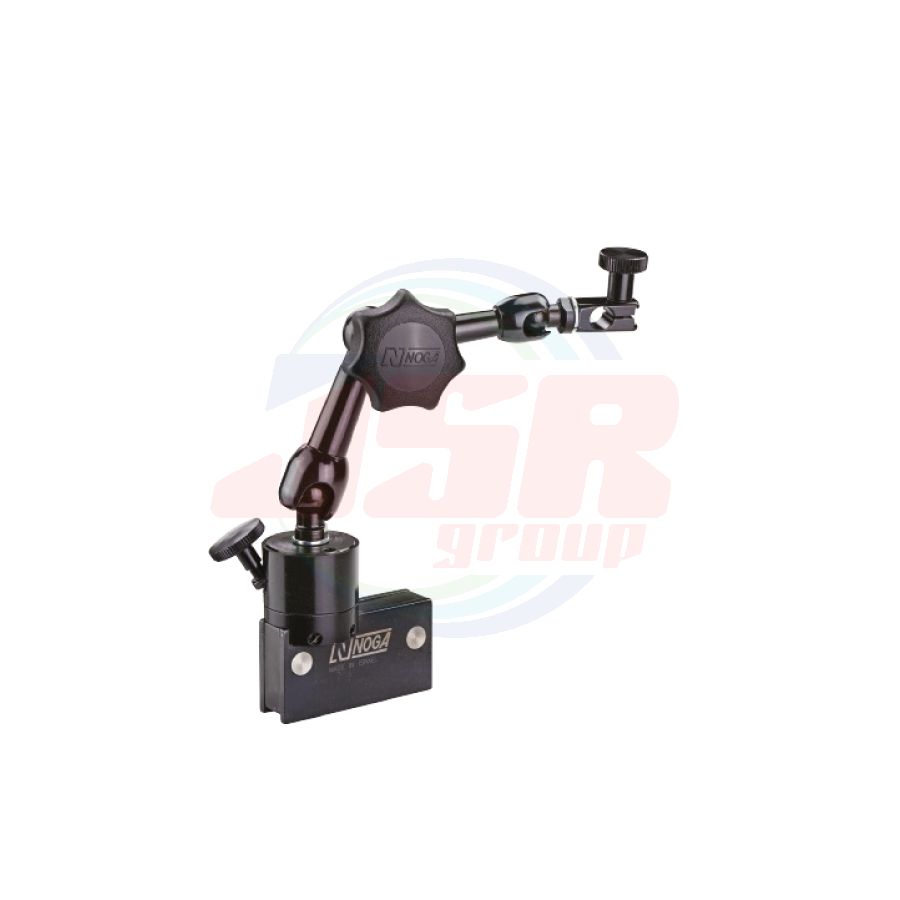

NogaFlex holder with permanent magnet - NF1030 / NF1033
• Permanent magnetic base.
• Five axis holder.
• Holds indicator with stem and dovetail.
• Instant fixation in any position.
• Central locking mechanism with NOGA designed spring loaded bearing.
• Black finished arms.
| Order No. | Weight (kg) |
Arm length | Standard clamp | Magnet | ||||||
| Bottom Arm L1 |
Top Thread L2 |
Total L1 + L2 + L3 |
Order No. | Dia (D) | Force | Dimension | ||||
| W | L | H | ||||||||
| NF1021 | 0.575 | 56 | 51 | 128.5 | FA1100 | 8 | 320N | 30 | 40 | 35 |
| NF1024 | 0.575 | 56 | 51 | 128.5 | FA1120 | 3/8" | 320N | 30 | 40 | 35 |
| NF1030 | 0.545 | 56 | 51 | 128.5 | FA1100 | 8 | 280N | 16 | 60 | 32 |
| NF1033 | 0.545 | 56 | 51 | 128.5 | FA1120 | 3/8" | 280N | 16 | 60 | 32 |
| แบรนด์สินค้า | NOGA |
|---|
