NPS (American Pipe Threads)

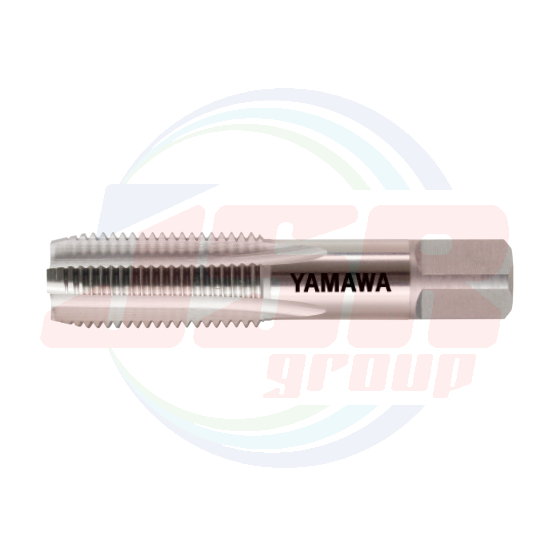

- The NPS tap is a hand tap for American parallel pipe threads and is used for products whose main purpose is the tightness of the threaded part in connecting pipe parts and the like.

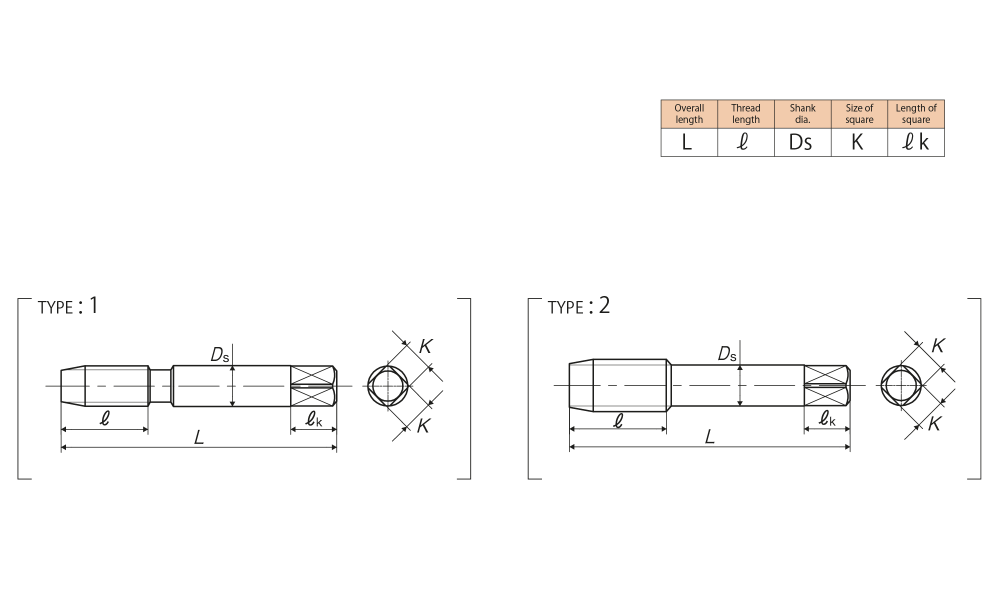

Specification

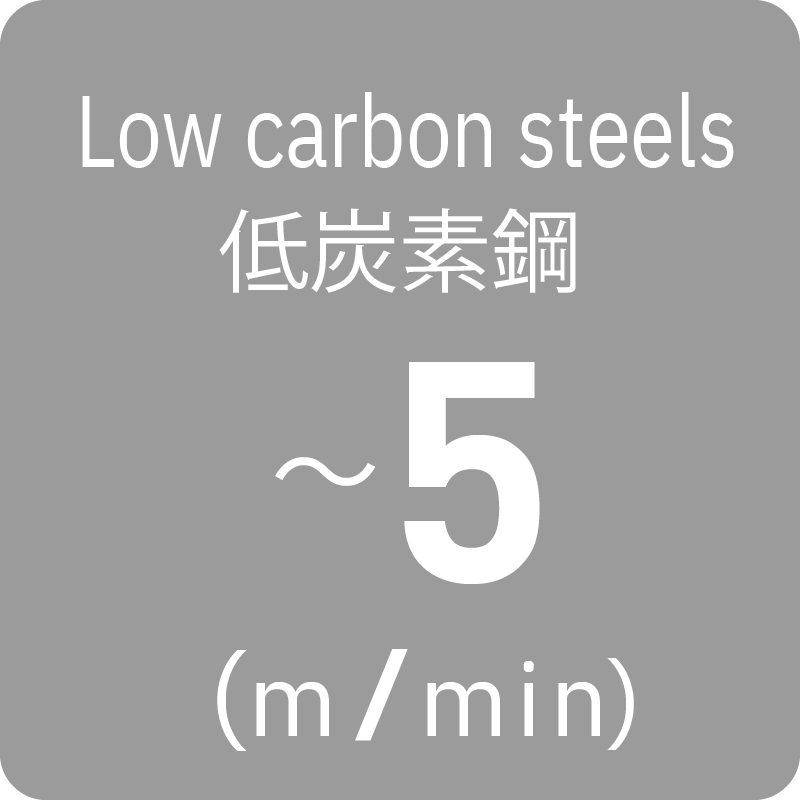

Tapping Speeds depending on Materials
Segment：1G
|
Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For American Pipe Threads |
|||||||||||
|
1/16-27 NPS |
ANSI G |
TNPS01L |
5P |
7.770 |
54 |
17 |
8 |
6 |
9 |
4 |
1 |
|
1/8-27 NPS |
ANSI G |
TNPS02L |
5P |
10.117 |
55 |
19 |
8 |
6 |
9 |
4 |
2 |
|
1/4-18 NPS |
ANSI G |
TNPS04O |
5P |
13.426 |
62 |
28 |
11 |
9 |
12 |
4 |
2 |
|
3/8-18 NPS |
ANSI G |
TNPS06O |
5P |
16.866 |
65 |
28 |
14 |
11 |
14 |
4 |
2 |
|
1/2-14 NPS |
ANSI G |
TNPS08Q |
5P |
20.980 |
80 |
35 |
18 |
14 |
17 |
4 |
2 |
|
3/4-14 NPS |
ANSI G |
TNPS12Q |
5P |
26.325 |
85 |
35 |
23 |
17 |
20 |
4 |
2 |
|
1 -11 1/2 NPS |
ANSI G |
TNPS16T |
5P |
32.934 |
95 |
45 |
26 |
21 |
24 |
5 |
2 |
|
1 1/4-11 1/2 NPS |
ANSI G |
TNPS20T |
5P |
41.689 |
105 |
45 |
32 |
26 |
30 |
5 |
2 |
|
1 1/2-11 1/2 NPS |
ANSI G |
TNPS24T |
5P |
47.760 |
110 |
45 |
38 |
29 |
32 |
6 |
2 |
|
2 -11 1/2 NPS |
ANSI G |
TNPS32T |
5P |
59.797 |
120 |
50 |
46 |
35 |
38 |
6 |
2 |
