NPSF (American Pipe Threads)
- The NPSF is a hand tap for the American dry seal parallel pipe threads and is used for screw tapping of products whose main purpose is the tightness of threaded parts in connection with pipe parts etc.

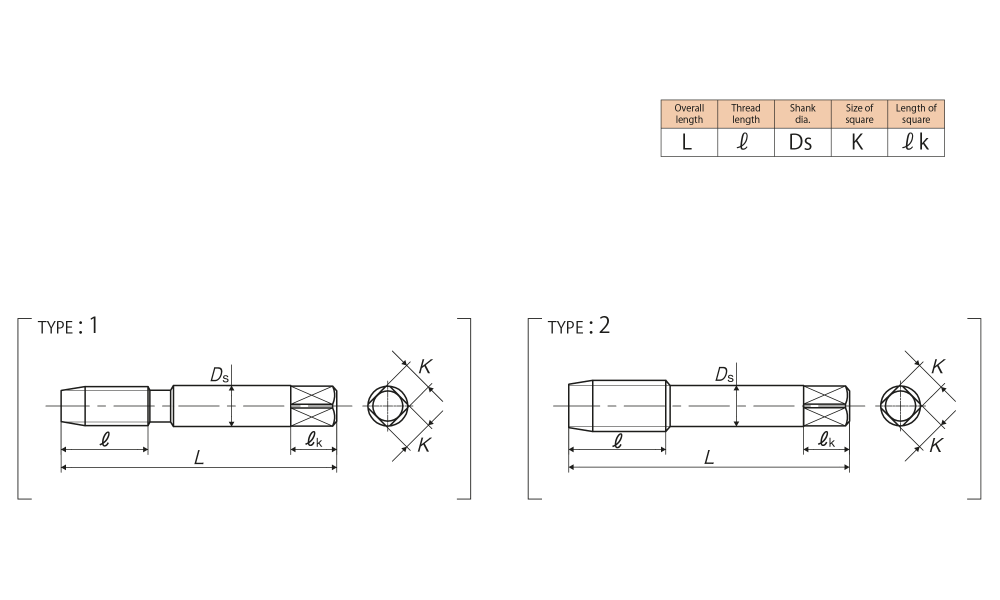

Specification

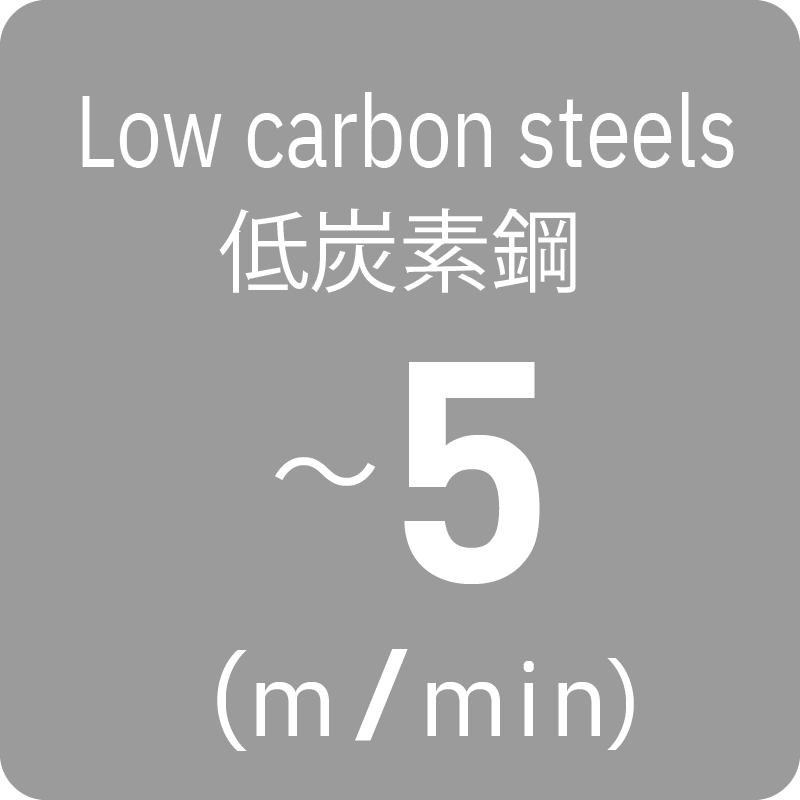

Tapping Speeds depending on Materials
Segment：1G
|
Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For American Pipe Threads |
|||||||||||
|
1/16-27 NPSF |
ANSI G |
TNSF01L |
5P |
7.770 |
54 |
17 |
8 |
6 |
9 |
4 |
1 |
|
1/8-27 NPSF |
ANSI G |
TNSF02L |
5P |
10.117 |
55 |
19 |
8 |
6 |
9 |
4 |
2 |
|
1/4-18 NPSF |
ANSI G |
TNSF04O |
5P |
13.426 |
62 |
28 |
11 |
9 |
12 |
4 |
2 |
|
3/8-18 NPSF |
ANSI G |
TNSF06O |
5P |
16.866 |
65 |
28 |
14 |
11 |
14 |
4 |
2 |
|
1/2-14 NPSF |
ANSI G |
TNSF08Q |
5P |
20.980 |
80 |
35 |
18 |
14 |
17 |
4 |
2 |
|
3/4-14 NPSF |
ANSI G |
TNSF12Q |
5P |
26.325 |
85 |
35 |
23 |
17 |
20 |
4 |
2 |
|
1 -11 1/2 NPSF |
ANSI G |
TNSF16T |
5P |
32.934 |
95 |
45 |
26 |
21 |
24 |
5 |
2 |
|
1 1/4-11 1/2 NPSF |
ANSI G |
TNSF20T |
5P |
41.689 |
105 |
45 |
32 |
26 |
30 |
5 |
2 |
|
1 1/2-11 1/2 NPSF |
ANSI G |
TNSF24T |
5P |
47.760 |
110 |
45 |
38 |
29 |
32 |
6 |
2 |
|
2 -11 1/2 NPSF |
ANSI G |
TNSF32T |
5P |
59.797 |
120 |
50 |
46 |
35 |
38 |
6 |
2 |
| แบรนด์สินค้า | YAMAWA |
|---|
