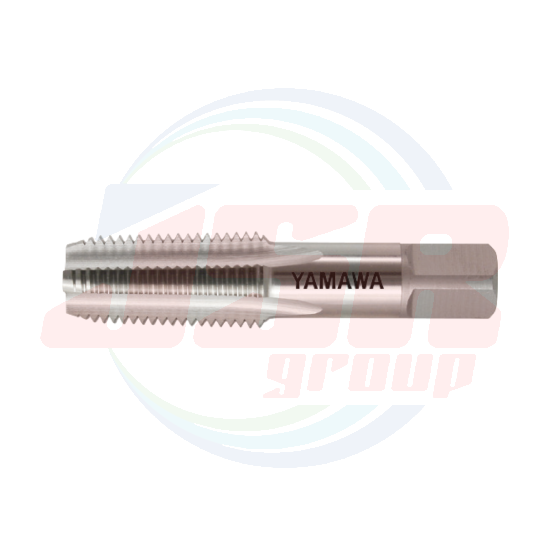

NPT (American Pipe Threads)
- The NPT tap is a hand tap for the American tapered pipe threads and is used for products whose main purpose is the tightness of threaded parts in the connection of parts for pipes.

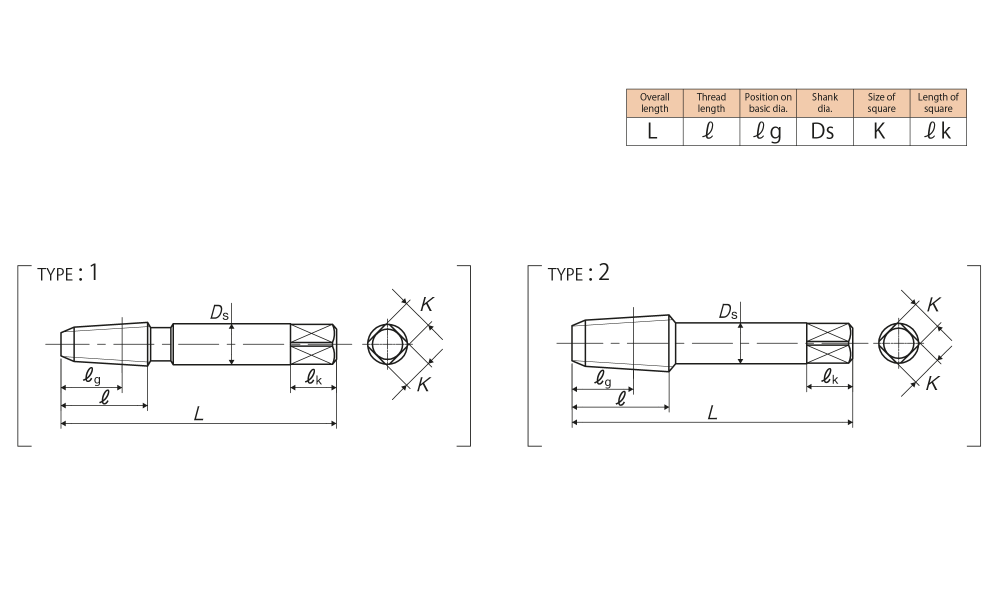

Specification
Tapping Speeds depending on Materials
Segment：1G
|
Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
ℓg (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For American Pipe Threads |
||||||||||||
|
1/16-27 NPT |
ANSI G |
TNPT01L |
3P |
7.770 |
54 |
17 |
12 |
8 |
6 |
9 |
4 |
1 |
|
1/8-27 NPT |
ANSI G |
TNPT02L |
3P |
10.117 |
55 |
19 |
12.05 |
8 |
6 |
9 |
4 |
2 |
|
1/4-18 NPT |
ANSI G |
TNPT04O |
3P |
13.426 |
62 |
28 |
17.45 |
11 |
9 |
12 |
4 |
2 |
|
3/8-18 NPT |
ANSI G |
TNPT06O |
3P |
16.866 |
65 |
28 |
17.65 |
14 |
11 |
14 |
4 |
2 |
|
1/2-14 NPT |
ANSI G |
TNPT08Q |
3P |
20.980 |
80 |
35 |
22.85 |
18 |
14 |
17 |
4 |
2 |
|
3/4-14 NPT |
ANSI G |
TNPT12Q |
3P |
26.325 |
85 |
35 |
22.95 |
23 |
17 |
20 |
4 |
2 |
|
1 -11 1/2 NPT |
ANSI G |
TNPT16T |
3P |
32.934 |
95 |
45 |
27.4 |
26 |
21 |
24 |
5 |
2 |
|
1 1/4-11 1/2 NPT |
ANSI G |
TNPT20T |
3P |
41.689 |
105 |
45 |
28.1 |
32 |
26 |
30 |
5 |
2 |
|
1 1/2-11 1/2 NPT |
ANSI G |
TNPT24T |
3P |
47.760 |
110 |
45 |
28.4 |
38 |
29 |
32 |
6 |
2 |
|
2 -11 1/2 NPT |
ANSI G |
TNPT32T |
3P |
59.797 |
120 |
50 |
28 |
46 |
35 |
38 |
6 |
2 |
|
2 1/2-8 NPT |
ANSI G |
TNPT40X |
3P |
72.273 |
145 |
65 |
40.8 |
55 |
41 |
44 |
8 |
2 |
|
3 -8 NPT |
ANSI G |
TNPT48X |
3P |
88.184 |
155 |
65 |
42.95 |
65 |
50 |
52 |
8 |
2 |
| แบรนด์สินค้า | YAMAWA |
|---|
