NPT - ROUND DIES FOR GENERAL USE | BAER
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
BAE-NPT
NPT National standard taper 1 : 16 pipe thread ANSI B 1.20.1

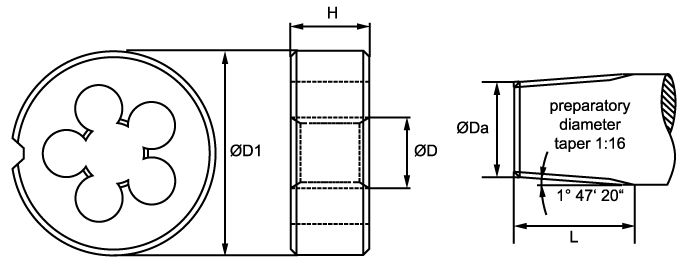

| Order No. | NPT | D | D1 | H | Da x L |
| 241401001 | NPT 1/16 x 27 | 7.90 | 25 | 9 | 7.58 x 8.4 |
| 241401002 | NPT 1/8 x 27 | 10.24 | 30 | 11 | 9.93 x 8.5 |
| 241401003 | NPT 1/4 x 18 | 13.62 | 38 | 14 | 13.18 x 12.7 |
| 241401004 | NPT 3/8 x 18 | 17.06 | 45 | 14 | 16.60 x 12.9 |
| 241401005 | NPT 1/2 x 14 | 21.22 | 45 | 18 | 20.63 x 16.8 |
| 241401006 | NPT 5/8 x 14 | 23.90 | 55 | 22 | |
| 241401007 | NPT 3/4 x 14 | 26.57 | 55 | 22 | 25.95 x 17.1 |
| 241401008 | NPT 7/8 x 14 | 29.90 | 65 | 25 | |
| 241401009 | NPT 1” x 11.5 | 33.23 | 65 | 25 | 32.51 x 21.3 |
| 241401010 | NPT 1.1/4 x 11.5 | 41.99 | 75 | 26 | 41.23 x 21.9 |
| 241401011 | NPT 1.1/2 x 11.5 | 48.05 | 90 | 27 | 47.30 x 22.3 |
| 241401012 | NPT 2” x 11.5 | 60.09 | 105 | 28 | 59.31 x 23.1 |
| แบรนด์สินค้า | BAER |
|---|
