NPTF (American Pipe Threads)
- The NPTF is a hand tap for the American dry seal tapered pipe threads and is used for products whose main purpose is the tightness of the threaded part in connection with pipe parts, etc.
Specification
Tapping Speeds depending on Materials
Segment：1G
|
Size |
Class |
Code |
Chamfer |

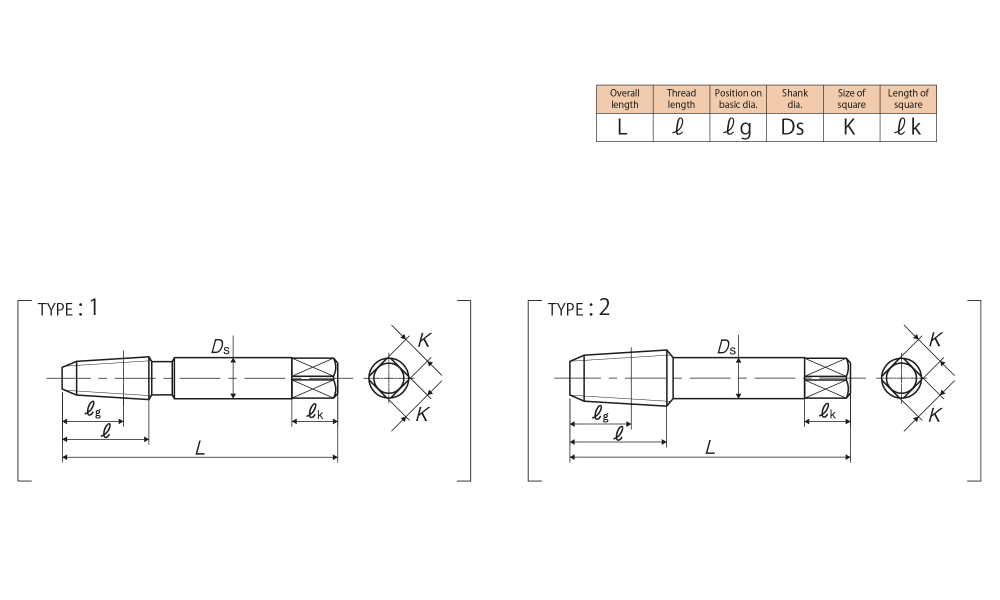

Basic major dia (mm) |
L (mm) |
ℓ (mm) |
ℓg (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For American Pipe Threads |
||||||||||||
|
1/16-27 NPTF |
ANSI G |
TNTF01L |
3P |
7.770 |
54 |
17 |
12 |
8 |
6 |
9 |
4 |
1 |
|
1/8-27 NPTF |
ANSI G |
TNTF02L |
3P |
10.117 |
55 |
19 |
12.05 |
8 |
6 |
9 |
4 |
2 |
|
1/4-18 NPTF |
ANSI G |
TNTF04O |
3P |
13.426 |
62 |
28 |
17.45 |
11 |
9 |
12 |
4 |
2 |
|
3/8-18 NPTF |
ANSI G |
TNTF06O |
3P |
16.866 |
65 |
28 |
17.65 |
14 |
11 |
14 |
4 |
2 |
|
1/2-14 NPTF |
ANSI G |
TNTF08Q |
3P |
20.980 |
80 |
35 |
22.85 |
18 |
14 |
17 |
4 |
2 |
|
3/4-14 NPTF |
ANSI G |
TNTF12Q |
3P |
26.325 |
85 |
35 |
22.95 |
23 |
17 |
20 |
4 |
2 |
|
1 -11 1/2 NPTF |
ANSI G |
TNTF16T |
3P |
32.934 |
95 |
45 |
27.4 |
26 |
21 |
24 |
5 |
2 |
|
1 1/4-11 1/2 NPTF |
ANSI G |
TNTF20T |
3P |
41.689 |
105 |
45 |
28.1 |
32 |
26 |
30 |
5 |
2 |
|
1 1/2-11 1/2 NPTF |
ANSI G |
TNTF24T |
3P |
47.760 |
110 |
45 |
28.4 |
38 |
29 |
32 |
6 |
2 |
|
2 -11 1/2 NPTF |
ANSI G |
TNTF32T |
3P |
59.797 |
120 |
50 |
28 |
46 |
35 |
38 |
6 |
2 |
