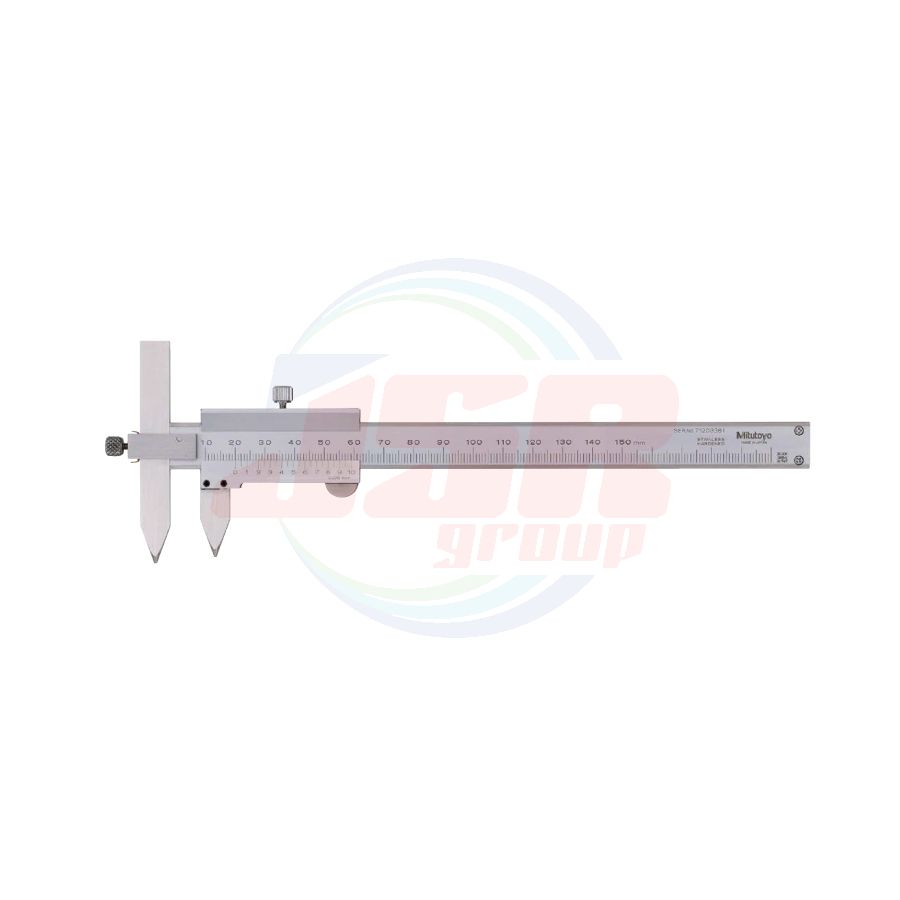

Offset Centerline Caliper SERIES 536 — Vernier Type | MITUTOYO
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 7,428.04
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
OFFSET-CENTERLINE-ANALOG
QTY:
0
• Specially designed for center-to-center hole diameter measurements on the same and offset planes. The beam-mounted jaw can be adjusted to facilitate the measurement of stepped sections.
SPECIFICATIONS
Metric ___ Analog model
| Order No. | Range (mm) | Resolution (mm) | Maximum permissible error (mm)*² | |
| E MPE | S MPE | |||
| 536-105 | 10.1 - 150 | 0.05 | - | ±0.03 |
| 536-106 | 10.1 - 200 | |||
| 536-107 | 10.1 - 300 | ±0.08 | ||
* The Partial Surface Contact Error (E MPE) and Shift Error (S MPE) are terms defined by ISO 13385-1:2019.
| แบรนด์สินค้า | MITUTOYO |
|---|

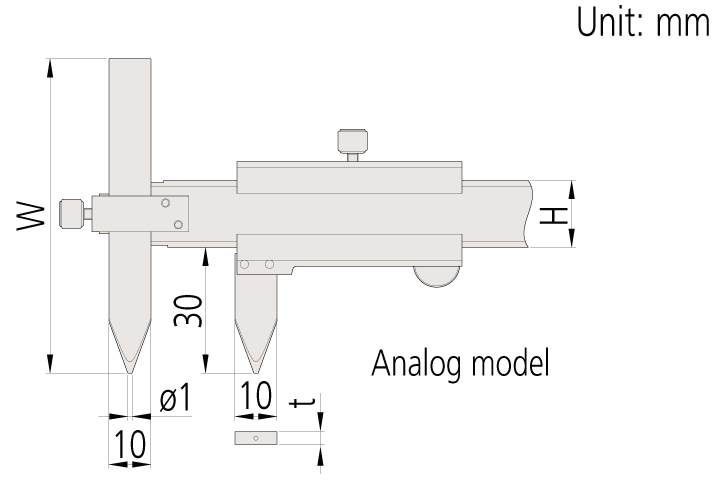

| Range (mm) | H | W | t | Applicable hole |
| 10 - 150 | 16 | 75 | 3.5 | ø1.5 - ø9.5 mm |
| 10 - 200 | ||||
| 10 - 300 | 20 | 100 | 3.8 |
