Offset Centerline Caliper SERIES 573 — ABSOLUTE Digimatic Type | MITUTOYO

ราคาต่ำสุด THB 0.00 THB 0.00 ราคาปรกติ THB 11,704.73
พร้อมส่ง
SKU
OFFSET-CENTERLINE

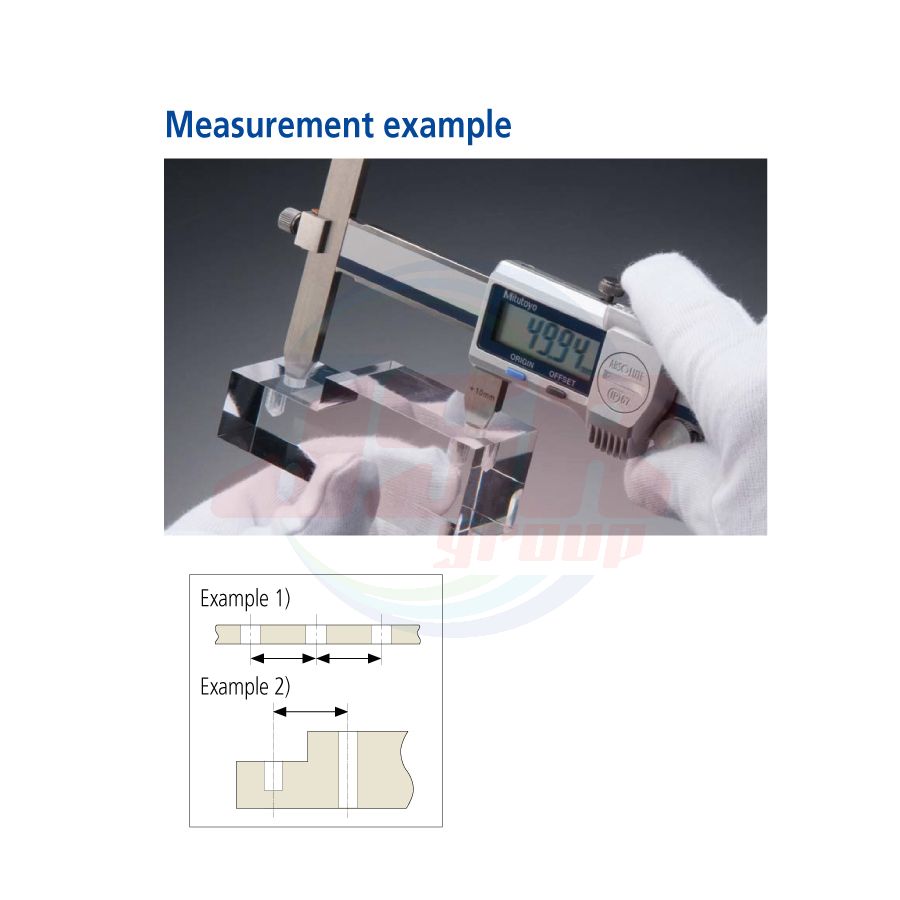

• Specially designed for center-to-center hole Measurement example diameter measurements on the same and offset planes. The beam-mounted jaw can be adjusted to facilitate the measurement of stepped sections.

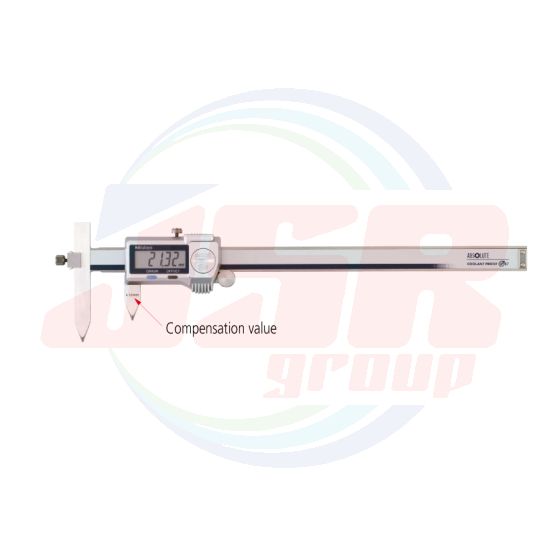

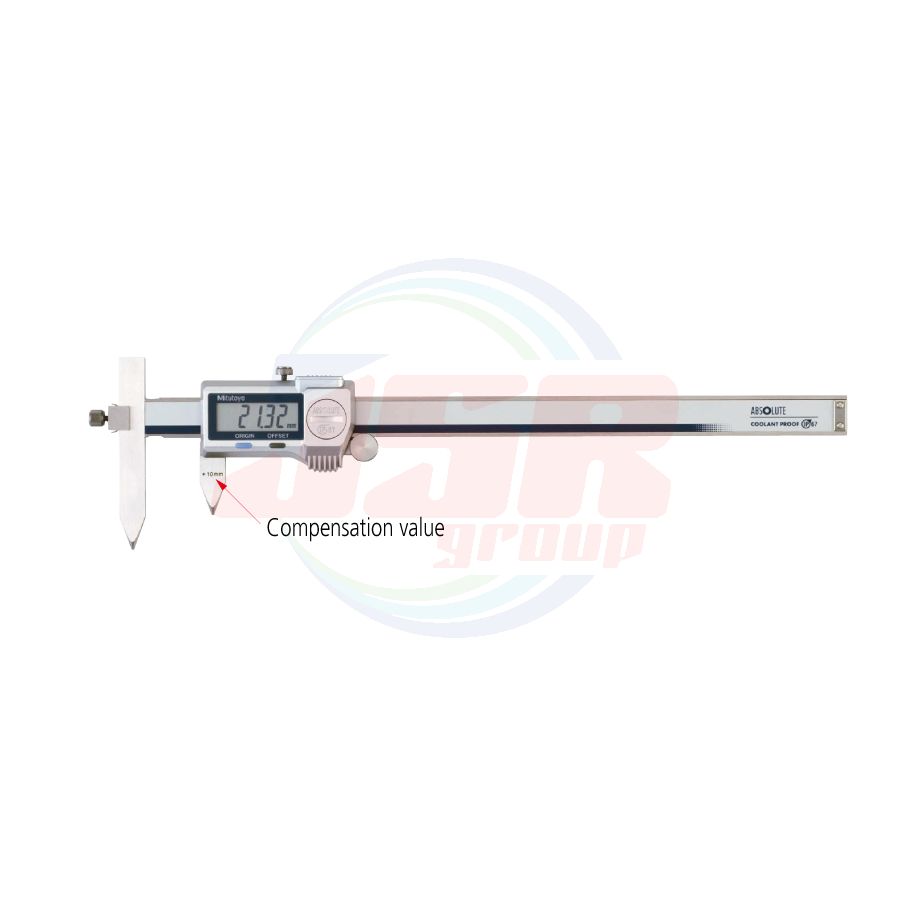

• Direct reading of pitch measurement is available due to the offset-value setting function.

Offset Centerline Caliper SERIES 573 — ABSOLUTE Digimatic Type | MITUTOYO
Offset Centerline Caliper SERIES 573 — ABSOLUTE Digimatic Type | MITUTOYO Offset Centerline Caliper SERIES 573 — ABSOLUTE Digimatic Type | MITUTOYO

SPECIFICATIONS

Metric ___ Digimatic model

Order No. Range (mm) Resolution (mm) Maximum permissible error (mm)*²
E MPE S MPE
573-605-20 10.1 - 160 0.01 - ±0.03
573-615-20*¹ 10.1 - 160
573-606-20 10.1 - 210
573-616-20*¹ 10.1 - 210
573-608-20 10.1 - 310 ±0.04
573-618-20*¹ 10.1 - 310

Inch / Metric ___ Digimatic model

Order No. Range Resolution Maximum permissible error*²
E MPE S MPE
573-705-20 0.404 - 6.4 in/10.26 - 160.16 mm 0.0005 in/0.01 mm - ±0.0015 in/±0.03 mm
573-706-20 0.404 - 8.4 in/10.26 - 210.16 mm
573-708-20 0.404 - 12.4 in/10.26- 310.16 mm ±0.0015 in/±0.04 mm

• Dust /Water protection level: IP67 (IEC 60529)*3
• Power source: SR44 battery (1 pc.), 938882 included as standard (for operational checks)
• Battery life: Approx. 5 years under normal use
• Position detection method: ABSOLUTE electromagnetic induction linear encoder
• Response speed: Unlimited
*1 Without thumb roller
*2 The Partial Surface Contact Error (E MPE) and Shift Error (S MPE) are terms defined by ISO 13385-1:2019.
*3 Rustproofing shall be applied after use if caliper was in contact with coolant.

ข้อมูลเพิ่มเติม
แบรนด์สินค้า MITUTOYO

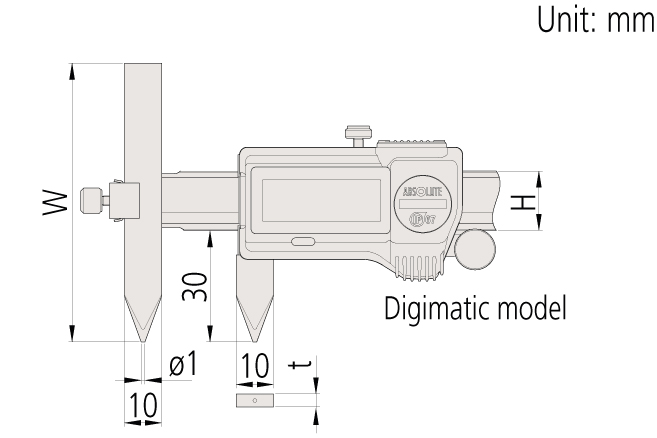

Range (mm) H W t Applicable hole
10.26 - 160.16 mm/0.404 - 6.4 in 16 75 3.5 ø1.5 - ø9.5 mm
10.26 - 210.16 mm/0.404 - 8.4 in
10.26 - 310.16 mm/0.404 - 12.4 in 20 100 3.8
