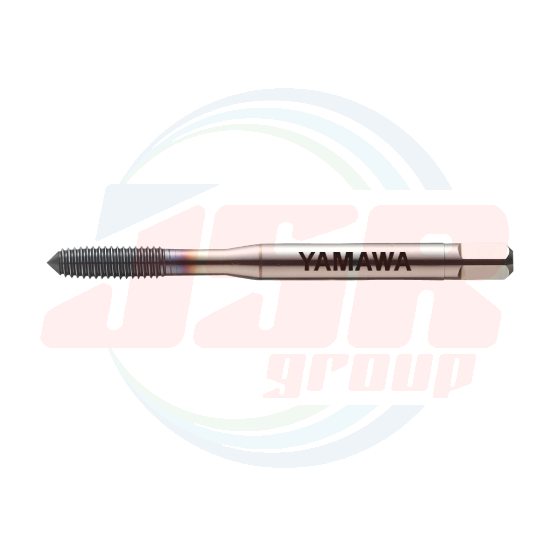

OL-RZ (Unified Threads) | Roll Taps for Dry Tapping, Coated | YAMAWA

ราคาต่ำสุด THB 0.00 ราคาปรกติ THB 924.30

พร้อมส่ง

SKU

OL-RZ (Unified Threads)

・The product symbol is divided by nominal sizes.

OL＋RZ	all M
OL-RZ	all U

Product Features

The OL+RZ/OL-RZ roll taps have made it possible tapping without lubrication in the sizes M6 and smaller. These taps are
designed for thin steel sheet screw threads or steel with a relatively short screw thread length.
Increased shank accuracy and an optimum lobe portion design produces a smooth thread forming action and the internal thread
accuracy is stabilized even under severe conditions.
For blind hole tapping, please select the HP+RZ/HP-RZ tap series as an alternative item.

Tapping Data

Processing conditions [M6 × 1 G7P]

Market Data

Case №	Size	Class	Processed Workpiece Material	Bored Hole Diameter （ｍｍ）	Tapping Depth （ｍｍ）	Tapping Speed （ｍ/min）	Machine Type	Tapping Fluid	Fluid Market Evaluation
1	M3×0.5	G5	SPCC	φ2.75	6	12	CNC machine	Mist	9,000 holes processed. Good surface finish
2	M6×1	G7	SPCC	φ5.55	4	15	Tapping machine	Mist	15,000 holes processed. Good workability
3	M1.7×0.35	G5	SS400	φ1.53	1.3	15	Tapping machine	Water soluble	200,000 holes processed. Competitor 100,000 holes.
4	M3×0.5	G5	SUS304	φ2.79	5	15	Special machine	Water soluble	7,000 holes processed. Good workability.
5	M6×1	G7	SS400	φ5.53	12	50	Vertical machining center	Water soluble	5,000 holes processed. Competitors 1,000 holes.

Specification

Tapping Speeds depending on Materials

OL-RZ　Roll Taps for Dry Tapping, Coated

Recommended class

Segment：1J

Number of oil grooves : non
