One Revolution Dial Indicator
• These are indicators that are effective for comparative measurement with 0.0005mm, 0.001mm, and 0.01mm.
• High durability is realized with Teclock original and unique enlargement mechanism is built-in.
• Limiter is mounted as standard.
• Measuring ranges are subdivided to 0.08mm, 0.16mm, 0.2mm and 1.0mm.
• Clump is attached to 0.001mm model.
• Lifting lever (Option) can be mounted.
• In case that flat back is required, add suffix “f” to the end of model number (example =TM-1200 f ).
Specifications
| Order No. | Graduation (mm) |
Measuring Range (mm) |
Repeatability (μm) |
Indication Error(μm) | Hysteresis (μm) |
Standard Contact Point |
Measuring Force (N) |
Weight (g) |
|
| 1/10 Revolution |
Total Range |
||||||||
| TM-1200 | 0.001 | 0.16(3.5) | 0.5 | 2 | 5 | 2 | ZS-017 | 1.5 or less | 175 |
| TM-1210 | 0.001 | 0.08(3.5) | 0.5 | 2 | 5 | 2 | ZS-017 | 1.5 or less | 175 |
| TM-1211 | 0.001 | 0.2(3.5) | 0.5 | 2 | 5 | 2 | ZS-017 | 1.5 or less | 175 |
| TM-102 | 0.01 | 1(5) | 3 | 5 | 8 | 3 | ZS-017 | 1.5 or less | 150 |
| TM-98 | 0.1 | 3.2(6) | 20 | 10 | 30 | 10 | ZS-017 | 1.5 or less | 150 |
| TM-5210 | 0.0005 | 0.08(3.5) | 0.8 | 0.8 | 4 | 2.5 | ZS-017 | 1.5 or less | 175 |
Final inspection is done in the vertical orientation and the accuracy is guaranteed.
| แบรนด์สินค้า | TECLOCK |
|---|

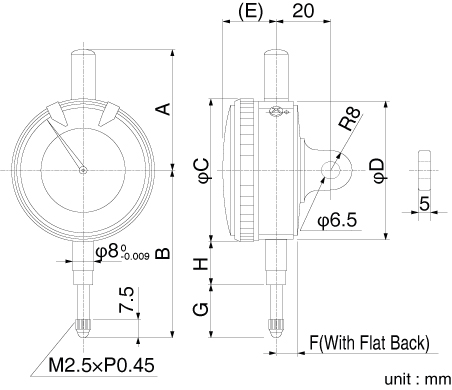

| Order No. | A | B | C | D | E | F | G | H |
| TM-1200 | 44.5 | 62 | 56 | 52.5 | 15 | 8 | 16 | 18 |
| TM-1210 | 44.5 | 62 | 56 | 52.5 | 15 | 8 | 16 | 18 |
| TM-1211 | 44.5 | 62 | 56 | 52.5 | 15 | 8 | 16 | 18 |
| TM-102 | 48 | 65 | 55 | 52 | 15.8 | 8 | 19 | 18.5 |
| TM-98 | 48 | 65 | 55 | 52 | 15.8 | 7.8 | 19 | 18.5 |
| TM-5210 | 44.5 | 62 | 56 | 52.5 | 15 | 8 | 16 | 18 |
