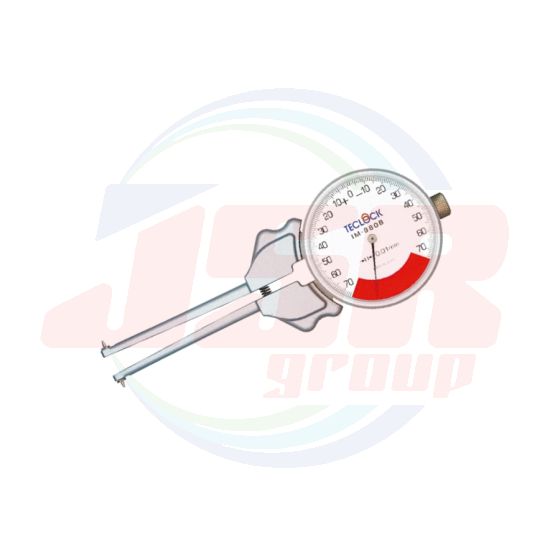

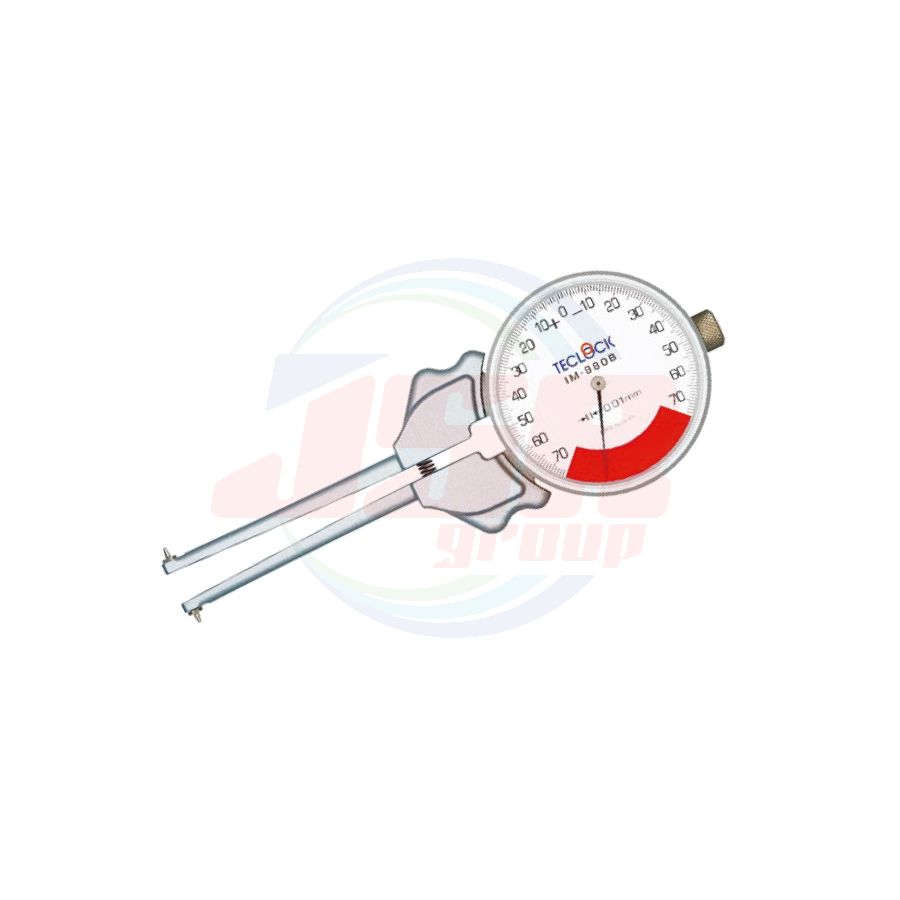

One Revolution Internal Dial Caliper Gauge
(Modifying spare contact point)
・Modifying One Revolution type IM-880 series, long seller internal gauge.
・Three types for measuring range.
・After setting standard dimension with master gauge, indication within ±0.7mm comparatively.

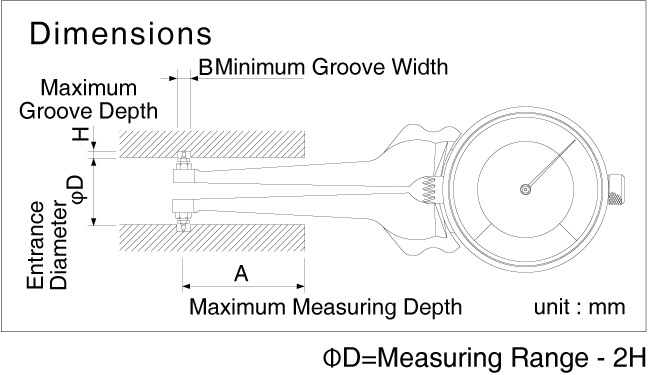

| Order No. | Graduation (mm) |
Measuring Range (mm |
Indicating Range (mm) |
Indication Error (μm) |
Measuring Force (N) |
Spare Contact Point | Maximum Measuring Depth A (mm) |
Maximum Measuring Depth A(mm) |
Groove Depth H (mm) |
Minimum Groove Width B (mm) |
Weight (g) |
|||
| Code No. | Extension Rods |
Measuring Range(mm) |
||||||||||||
| IM-880B | 0.01 | 19.3-35.7 | 1.4 | ±20 | 3 or less | ZS-423 | ZS-423 | - | 19.3-20.7 | 70 | 14.3 | 2.5 | 2.5 | 196 |
| ZS-423 | ZS-424 | - | 20.3-21.7 | 15.3 | 2.5 | |||||||||
| ZS-424 | ZS-424 | - | 21.3-22.7 | 14.3 | 3.5 | |||||||||
| ZS-424 | ZS-425 | - | 22.3-23.7 | 15.3 | 3.5 | |||||||||
| ZS-425 | ZS-425 | - | 23.3-24.7 | 15.3 | 4 | |||||||||
| ZS-425 | ZS-426 | - | 24.3-25.7 | 16.3 | 4 | |||||||||
| ZS-426 | ZS-426 | - | 25.3-26.7 | 17.3 | 4 | |||||||||
| ZS-426 | ZS-427 | - | 26.3-27.7 | 18.3 | 4 | |||||||||
| ZS-427 | ZS-427 | - | 27.3-28.7 | 19.3 | 4 | |||||||||
| ZS-427 | ZS-428 | - | 28.3-29.7 | 20.3 | 4 | |||||||||
| ZS-428 | ZS-428 | - | 29.3-30.7 | 21.3 | 4 | |||||||||
| ZS-728 | ZS-429 | - | 30.3-31.7 | 22.3 | 4 | |||||||||
| ZS-729 | ZS-429 | - | 31.3-32.7 | 23.3 | 4 | |||||||||
| ZS-426 | ZS-426 | ZS-646 | 32.3-33.7 | 24.3 | 4 | |||||||||
| ZS-426 | ZS-427 | ZS-646 | 33.3-34.7 | 25.3 | 4 | |||||||||
| ZS-427 | ZS-427 | ZS-646 | 34.3-35.7 | 26.3 | 4 | |||||||||
| IM-881B | 0.01 | 29.3-62.7 | 1.4 | ±20 | 3 or less | ZS-408 | ZS-408 | - | 29.3-38.7 | 75 | 24 | 3 | 2.5 | 218 |
| ZS-409 | ZS-409 | - | 35.3-44.7 | 27.4 | 4.3 | |||||||||
| ZS-410 | ZS-410 | - | 41.3-50.7 | 33.4 | 4.3 | |||||||||
| ZS-411 | ZS-411 | - | 47.3-56.7 | 39.4 | 4.3 | |||||||||
| ZS-412 | ZS-412 | - | 53.3-62.7 | 35.4 | 4.3 | |||||||||
| IM-882B | 0.01 | 54.3-153.7 | 1.4 | ±20 | 3 or less | ZS-413 | ZS-413 | - | 54.3-73.7 | 90 | 45 | 5 | 3.5 | 240 |
| ZS-414 | ZS-414 | - | 70.3-89.7 | 54 | 8.5 | |||||||||
| ZS-415 | ZS-415 | - | 86.3-105.7 | 70 | 8.5 | |||||||||
| ZS-416 | ZS-416 | - | 102.3-121.7 | 86 | 8.5 | |||||||||
| ZS-417 | ZS-417 | - | 118.3-137-7 | 102 | 8.5 | |||||||||
| ZS-418 | ZS-418 | - | 134.3-153.7 | 118 | 8.5 | |||||||||
*Please combine with ZS-646 extension rod
when measuring Φ33 to Φ35 by IM-880B.
Usage Example
Internal Caliper Gauge
|
Internal dimension of deep position can be easily measured. |
Groove diameter of groove for "O" ring can be easily measured. (IM-808,IM-880 etc) |
Measurement evading from screw, nuts etc. can be made. |
 |
 |
 |
