EGA Master has developed a new range of stainless steel tools to provide solutions on safety and technologically advanced applications. 420* stainless steel contributes to avoid contaminations, rusting and complying with clean room environment requirements.
1. Designed for tightening nuts and bolts in critical applications and demanding environments such as laboratories, the food, biotechnology, and medical industries, cleanrooms, underwater settings, etc.
2. Avoid contamination in other materials and the tendency to rusting in corrosive environments.

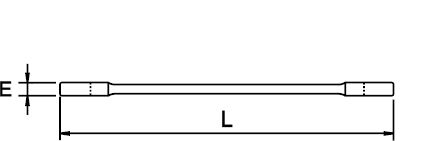

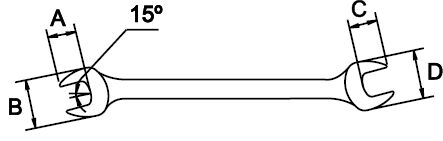

code | AFmm | L(mm) | A(mm) | B(mm) | Cmm) | D(mm) | E(mm) | g |
39008 | 5.5-7 | 90 | 6 | 13 | 7 | 15 | 4 | 19 |
38622 | 6-7 | |||||||
38623 | 8-9 | 100 | 8 | 18 | 9 | 24 | 5 | 38 |
38624 | 10-11 | 120 | 10 | 27 | 11 | 5.5 | 56 | |
38625 | 12-13 | 130 | 14 | 31 | 12 | 27 | 6 | 60 |
38626 | 14-15 | 150 | 17 | 37 | 14 | 31 | 6.5 | 95 |
38627 | 16-17 | 165 | 19 | 41 | 7.5 | 140 | ||
38650 | 18-19 | 18 | ||||||
38621 | 19-22 | 180 | 19 | 41 | 22 | 47 | 8.5 | 190 |
38651 | 20-22 | 20 | ||||||
38652 | 21-23 | 210 | 21 | 47 | 23 | 51 | 9 | 250 |
38628 | 22-24 | 22 | 24 | |||||
38653 | 24-26 | 230 | 24 | 51 | 26 | 57 | 9.5 | 320 |
38943 | 24-27 | 27 | ||||||
38654 | 25-28 | 25 | 28 | |||||
38944 | 27-29 | 250 | 27 | 57 | 29 | 64 | 10 | 350 |
38656 | 27-30 | 30 | 410 | |||||
39023 | 30-32 | 32 | 67 | |||||
38655 | 27-32 | 420 | ||||||
38606 | 32-36 | 290 | 32 | 67 | 36 | 75 | 11 | 650 |
38607 | 36-41 | 310 | 36 | 75 | 41 | 85 | 12 | 870 |
38608 | 38-42 | 42 | 851 |
