Extension signal cable/Extension relay cable

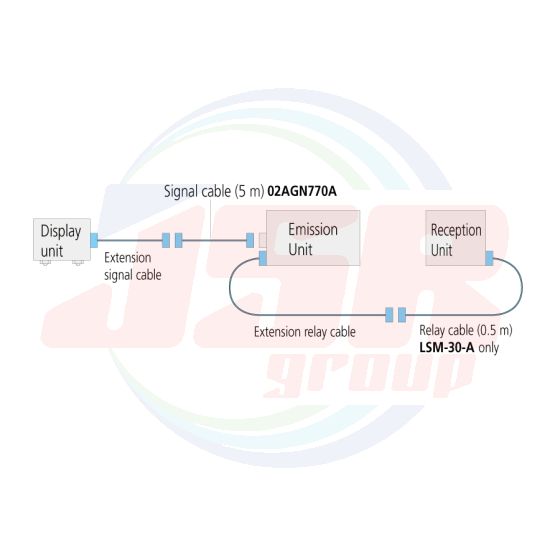

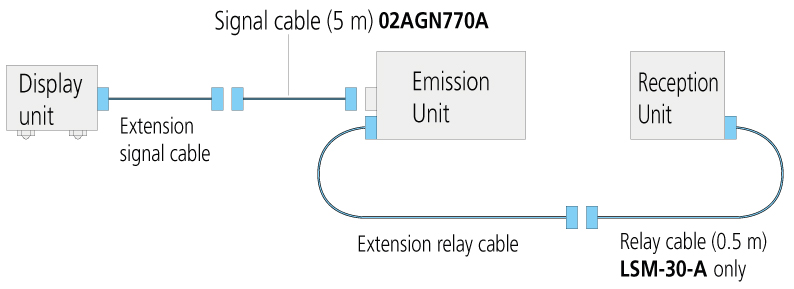

These cables are used when the measuring unit and display unit are placed far apart during use (extension signal cable) or when the emission unit and reception unit are placed apart during use (extension relay cable).
Order No. | Cable length |
02AGQ464A | 1 m |
02AGQ464B | 3 m |
02AGQ464C | 5 m |
Note1: For LSM-02-A, the signal cable should be 20 m max. and the relay cable 2 m max.
Note2: For LSM-30-A, the signal cable should be 29 m max. and the relay cable 5 m max.
Note3: The total length of a signal cable and relay cable should be 29 m max.
