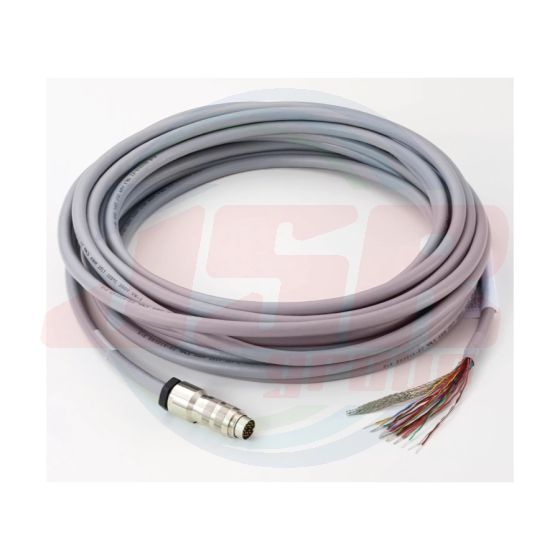

I/O cable
Cable to connect the external I/O device to the sensor
Specifications
| Specifications | Sensor side | M16 connector (Straight or 90° upward-pointing can be selected) |
| I/O device side | Flying lead | |
| Encoder input (2-phase square-wave signals Phase A, Phase B, Phase Z), Trigger input, Digital output, RS-485 output | ||
Note: Sensors cannot be synchronized by the signals input to and output from each sensor through this cable.
| Order No. | Product Name | Remarks |
| 02AQL361 | 2 m I/O | Open wire end |
| 02AQL362 | 5 m I/O | Open wire end |
| 02AQL363 | 10 m I/O | Open wire end |
| 02AQL364 | 15 m I/O | Open wire end |
| 02AQL365 | 20 m I/O | Open wire end |
| 02AQL366 | 25 m I/O | Open wire end |
| 02AQL379 | 2 m I/O 90deg | Open wire end, 90° connector |
| 02AQL380 | 5 m I/O 90deg | Open wire end, 90° connector |
| 02AQL381 | 10 m I/O 90deg | Open wire end, 90° connector |
| 02AQL382 | 15 m I/O 90deg | Open wire end, 90° connector |
| 02AQL383 | 20 m I/O 90deg | Open wire end, 90° connector |
| 02AQL384 | 25 m I/O 90deg | Open wire end, 90° connector |
| แบรนด์สินค้า | MITUTOYO |
|---|
