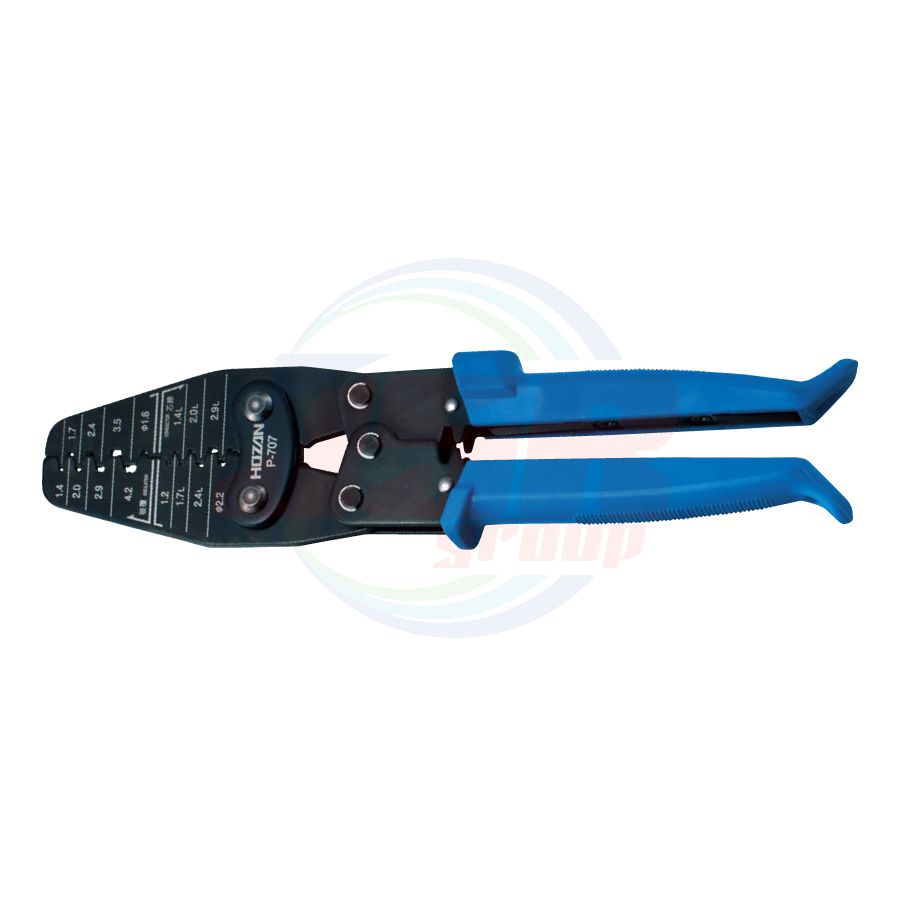

For open barrel terminals / contacts
•15 various-sized dies make this product suitable for a wide range of terminal sizes, from small to large.

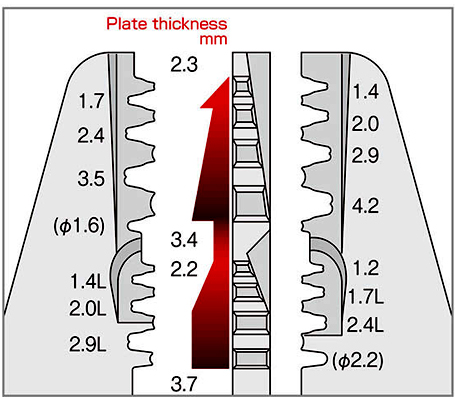

•A toggle mechanism enables secure crimping by applying only a light force. (Die area has thin steps.)
| Order No. | Wire sizes | Weight (g) |
|---|---|---|
| P-707 | AWG#30 to #14 | 320 |
| Nominal sizes | Die width mm | Crimp height mm | Compatible wire sizes (reference) | ||
|---|---|---|---|---|---|
| AWG# | mm² | ||||
| For conductor | 1.2 | 1.2 | 0.4 | 30 to 24 | 0.05 to 0.2 |
| 1.4L | 1.4 | 0.55 | 30 to 20 | 0.05 to 0.5 | |
| 1.7L | 1.7 | 0.65 | 28 to 18 | 0.08 to 0.8 | |
| 2.0L | 2.0 | 0.8 | 26 to 16 | 0.13 to 1.25 | |
| 2.4L | 2.4 | 1.1 | 20 to 14 | 0.5 to 2.0 | |
| 2.9L | 2.9 | 1.5 | 18 to 14 | 0.8 to 2.0 | |
| Nominal sizes | Die width mm | Crimp height mm | Insulation OD (reference) mmØ | |
|---|---|---|---|---|
| For insulation | 1.4 | 1.4 | 1.1 | 0.7 to 1.2 |
| 1.7 | 1.7 | 1.3 | 0.9 to 1.5 | |
| 2.0 | 2.0 | 1.35 | 1.1 to 1.8 | |
| 2.4 | 2.4 | 1.75 | 1.3 to 2.2 | |
| 2.9 | 2.9 | 2 | 1.6 to 2.6 | |
| 3.5 | 3.5 | 2.4 | 1.9 to 3.2 | |
| 4.2 | 4.2 | 2.6 | 2.3 to 3.8 | |
| For insulation (for round crimps) | O1.6 | 1.6 | 1.5 | 1.0 to 1.6 |
| O2.2 | 2.2 | 1.8 | 1.6 to 2.2 |
| แบรนด์สินค้า | HOZAN |
|---|---|
| Order No. | P-707 |
