SKU
PC-1BW
Special Type Test Indicators
Double Dial Type Wseries
● The conventional lever type dial gauge used to have some unreadable points when aligning with it, which has made
it impossible to do the accurate aligning till now.
The double dial type Pic Test has two dials at both sides, making it possible to cover said unreadable points by conventional Pic Tests.
Specifications
| Order No. | Graduation (mm) |
Range (mm) | Reading | Accuracy MPE (μm) | Measuring force less than (N) |
||||
| 10 Scale | 1 Rev. | Wide-range Forward accuracy |
Hysteresis | Repeatability | |||||
| PC-1BW | 0.01 | 0.8 | 0 - 40 - 0 | 5 | - | 9 | 4 | 3 | 0.4 |
| แบรนด์สินค้า | PEACOCK |
|---|---|
| Order No. | PC-1BW |
| Graduation | 0.01 mm |

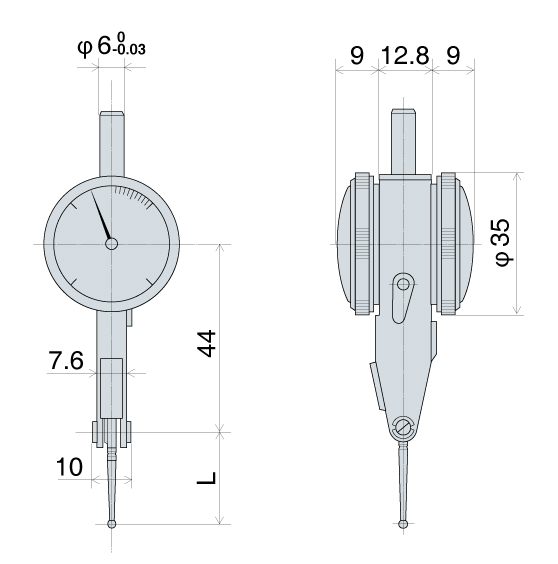

| Order No. | L (mm) |
| PC-1BW | 22.4 |
