Lever Type Dial Indicators PIC TEST
Change lever type PC series
● Miniature Bearing
Used The miniature bearing used as a bearing at the pivot of the contact point to show good indication stability without any effect by rod play.
● O-ring used
Oil resistance is enhanced by seating the O-ring in the turning section of the outer frame.
Specifications
Order No. | Graduation (mm) |
Range (mm) | Reading | Accuracy MPE (μm) | Measuring force less than (N) |
||||
10 Scale | 1 Rev. | Wide-range Forward accuracy |
Hysteresis | Repeatability | |||||
PC-1A | 0.01 | 0.5 | 0 - 25 - 0 | 5 | - | 6 | 4 | 3 | 0.4 |
PC-1B | 0.01 | 0.8 | 0 - 40 - 0 | 5 | - | 9 | 4 | 3 | 0.4 |
PC-1L | 0.01 | 1.0 | 0 - 50 - 0 | 5 | - | 10 | 5 | 3 | 0.4 |
PC-2 | 0.002 | 0.28 | 0 - 140 - 0 | 2 | - | 4 | 3 | 1 | 0.4 |
PC-3 | 0.01 | 0.5 | 0 - 25 - 0 | 5 | - | 6 | 4 | 3 | 0.4 |
PC-3L | 0.01 | 1.0 | 0 - 50 - 0 | 5 | - | 10 | 5 | 3 | 0.4 |
PC-4 | 0.002 | 0.28 | 0 - 140 - 0 | 2 | - | 4 | 3 | 1 | 0.4 |
แบรนด์สินค้า | PEACOCK |
---|
Order No. | L (mm) |
PC-1A | 21.4 |
PC-1B | 22.4 |
PC-1L | 43.0 |
PC-2 | 12.0 |

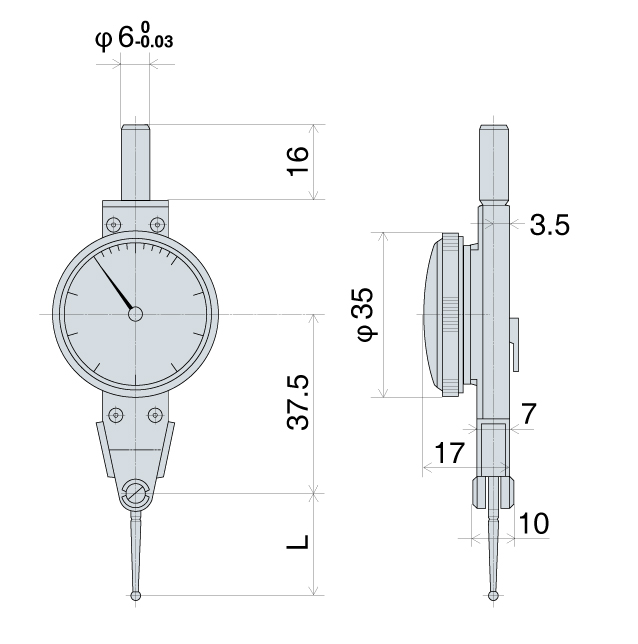

Order No. | L (mm) |
PC-3 | 21.4 |
PC-4 | 12.0 |
PC-3L | 43.0 |
