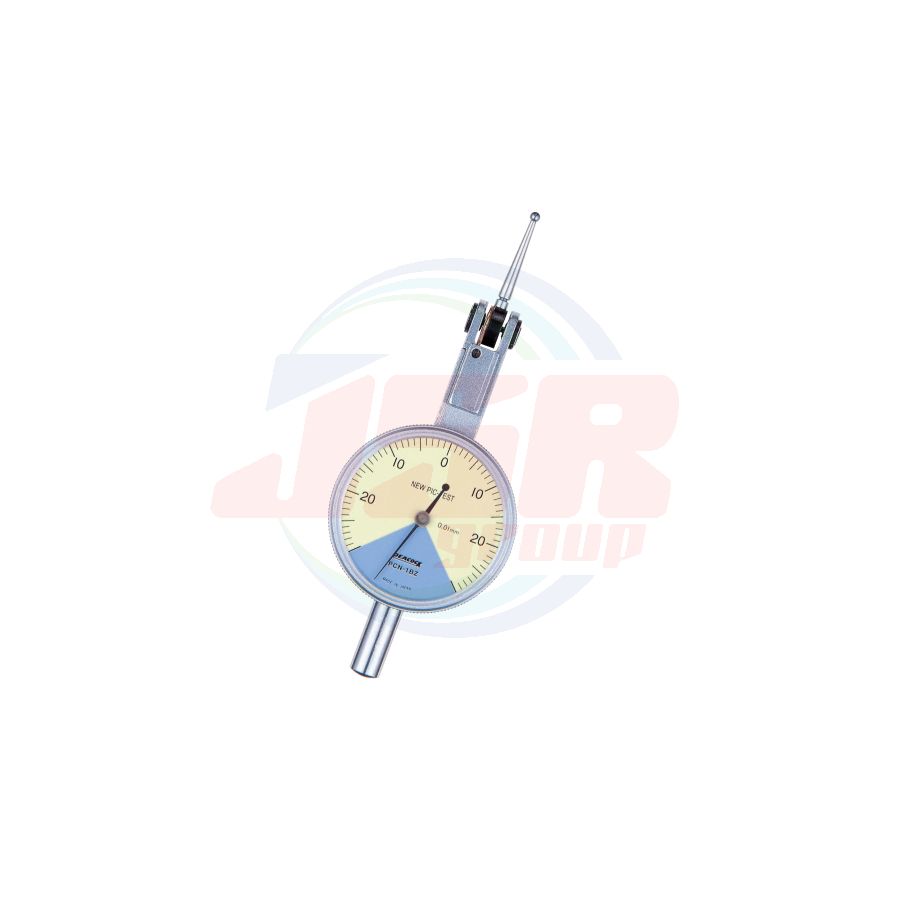

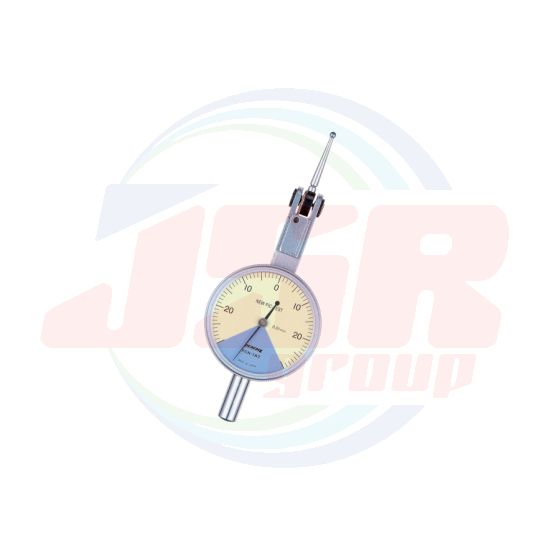

PCN-1BZ(B) | Special Type Test Indicators - One Revolution Zseries (without change lever type) "B" type Upward | PEACOCK
THB 0.00
*ราคายังไม่รวม VAT
สินค้าหมด
SKU
PCN-1BZ(B)
QTY:
0
Special Type Test Indicators
One Revolution Zseries (without change lever type)
The dial face is easy to read with light yellow and blue (dead zone)
"B" type Downward
Specifications
| Order No. | Graduation (mm) |
Range (mm) | Movable Range (mm) |
Accuracy MPE (μm) | Measuring force less than (N) |
||||
| 10 Scale | 1 Rev. | Wide-range Forward accuracy |
Hysteresis | Repeatability | |||||
| PCN-1BZ(B) | 0.01 | 0.6 | 0.7 | 5 | - | 9 | 4 | 3 | 0.3 |
| PCN-1LZ(B) | 0.01 | 0.8 | 0.9 | 5 | - | 10 | 5 | 3 | 0.3 |
| PCN-2Z(B) | 0.002 | 0.2 | 0.24 | 2 | - | 4 | 3 | 1 | 0.3 |
| แบรนด์สินค้า | PEACOCK |
|---|---|
| Order No. | PCN-1BZ(B) |
| Graduation | 0.01 mm |

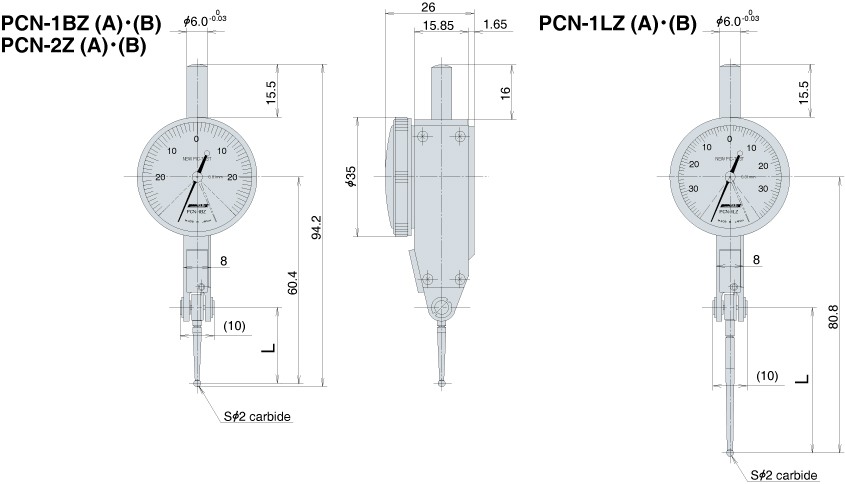

| Order No. | L (mm) |
| PCN-1BZ(B) | 22.2 |
| PCN-2Z(B) | 17.94 |
| PCN-1LZ(B) | 42.8 |
