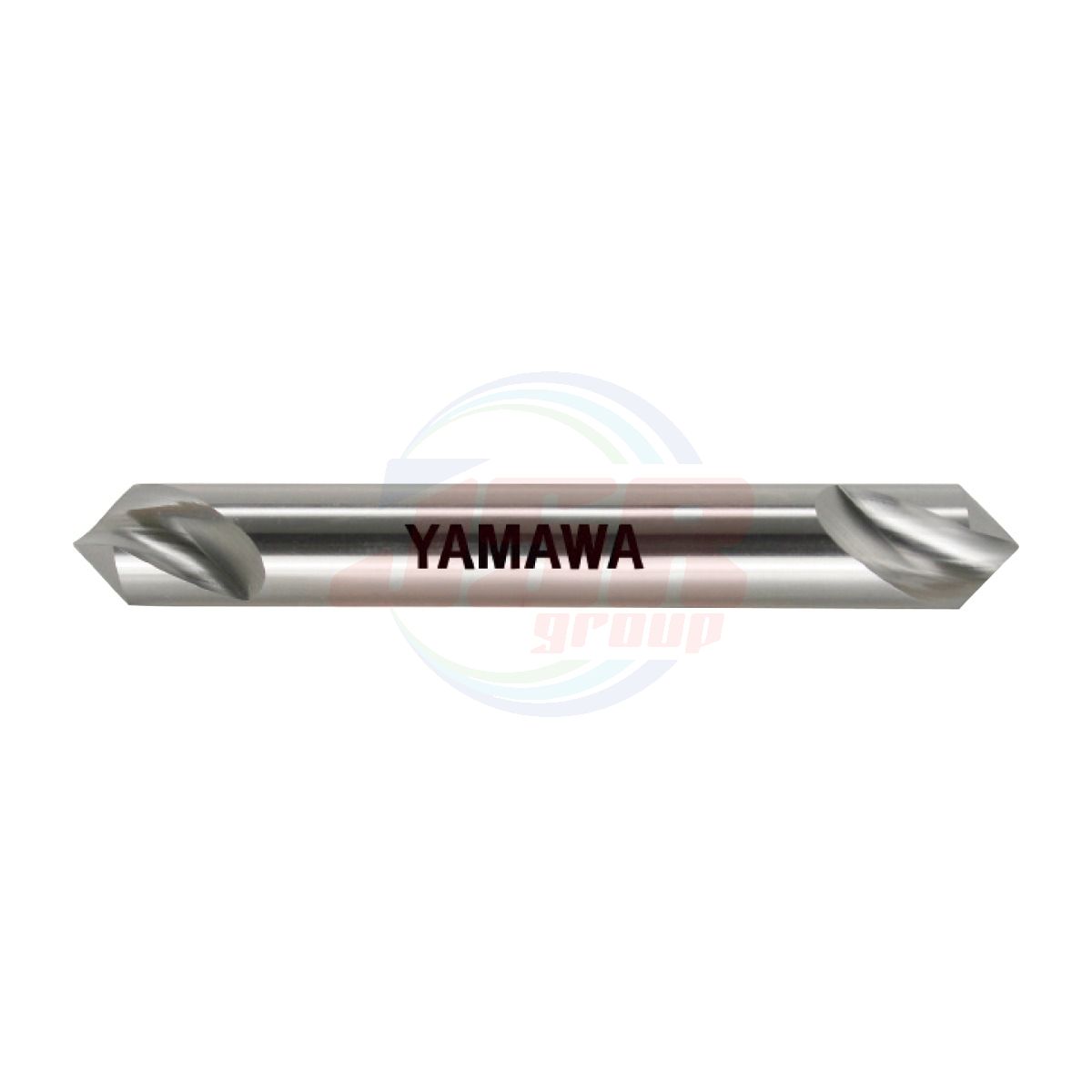

PE-Q 6X2X90º (PE6.0Q) | Point Drills 90° | YAMAWA
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 349.53
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
PE6.0Q
QTY:
5
● PE-Q is the point drill enabling positioning (125° edge angle) and chamfering (90°) simultaneously. High cutting accuracy is available owing to a good cutting-start due to 2 step flat design.
Specification
Cutting Speed depending on Materials
Segment：56
|
Size Ds ×Dc × θ |
Code |
Dc (mm) |
Ds (mm) |
L (mm) |
ℓ1 (mm) |
TYPE |
|
3×0.5×90ﾟ |
PE3.0Q |
0.5 |
3 |
40 |
0.13 |
1 |
|
4×1×90ﾟ |
PE4.0Q |
1 |
4 |
45 |
0.26 |
1 |
|
6×2×90ﾟ |
PE6.0Q |
2 |
6 |
55 |
0.52 |
1 |
|
8×2.5×90ﾟ |
PE8.0Q |
2.5 |
8 |
65 |
0.65 |
1 |
|
10×3×90ﾟ |
PE010Q |
3 |
10 |
75 |
0.78 |
1 |
|
12×3.5×90ﾟ |
PE012Q |
3.5 |
12 |
85 |
0.91 |
1 |
|
16×4×90ﾟ |
PE016Q |
4 |
16 |
90 |
1.04 |
1 |
|
20×5×90ﾟ |
PE020Q |
5 |
20 |
100 |
1.30 |
1 |
| แบรนด์สินค้า | YAMAWA |
|---|---|
| Order No. | 6x2x90º (PE6.0Q) |
| Model | PE-Q |
| Size | 6×2×90° |
| Overall length (L) | 55 |
| Shank dia. (Ds) | 6 |
| DC (mm) | 2 |
