● PE-QL V is the long shank coated point drill enabling positioning (125° edge angle) and chamfering (90°) simultaneously. High cutting accuracy is available owing to a good cuttingstart due to 2 step flat design. Optimum coating suitable for the cutting condition.
Specification

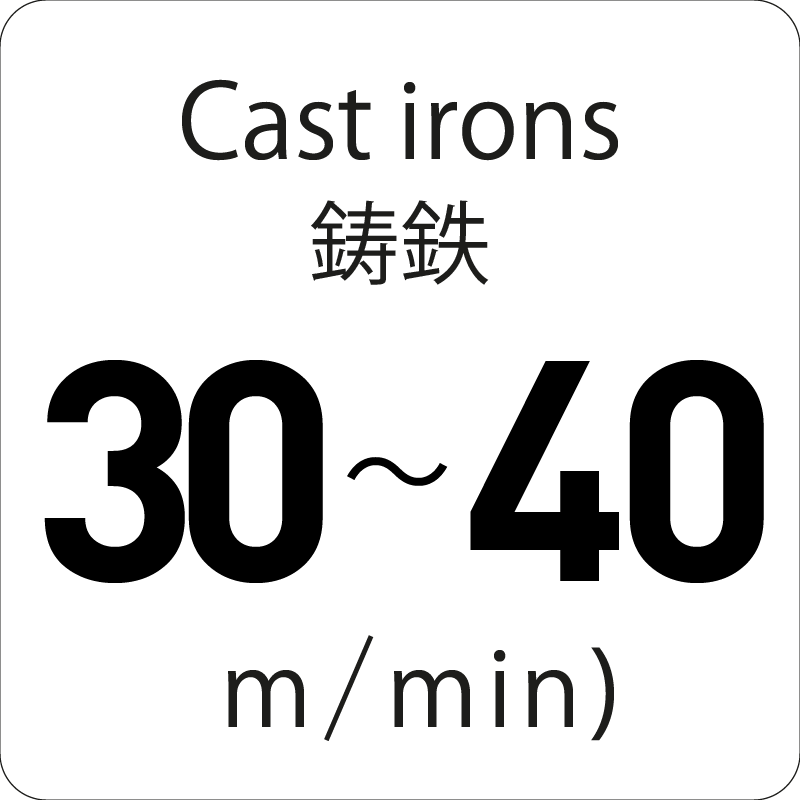

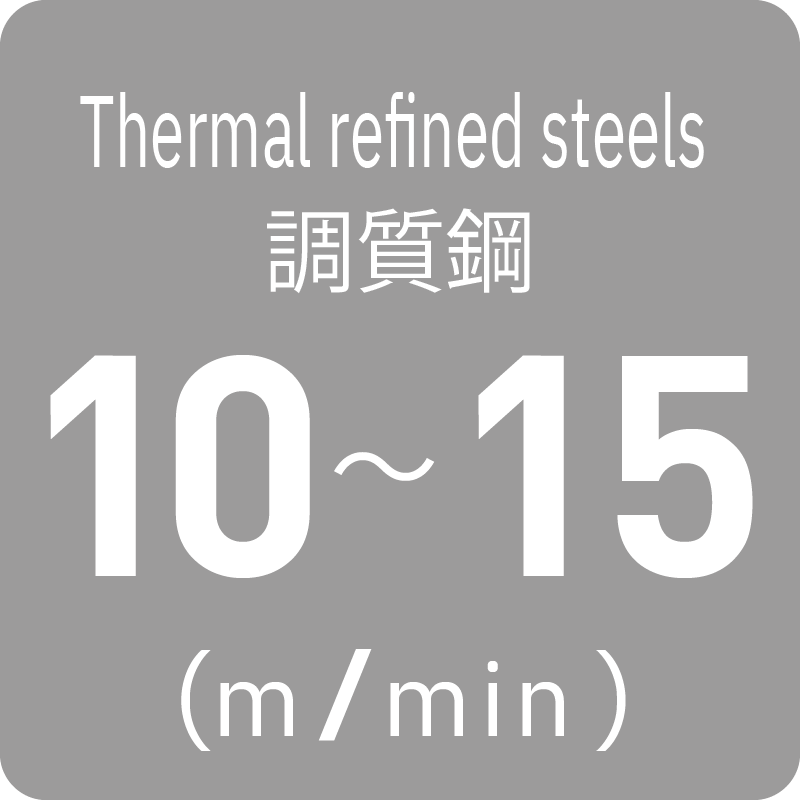

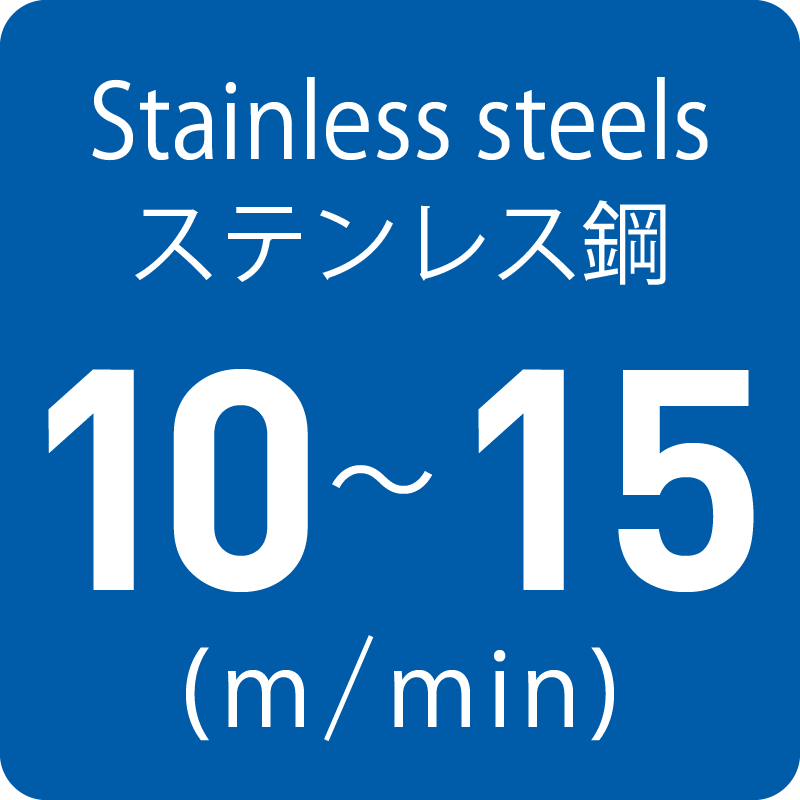

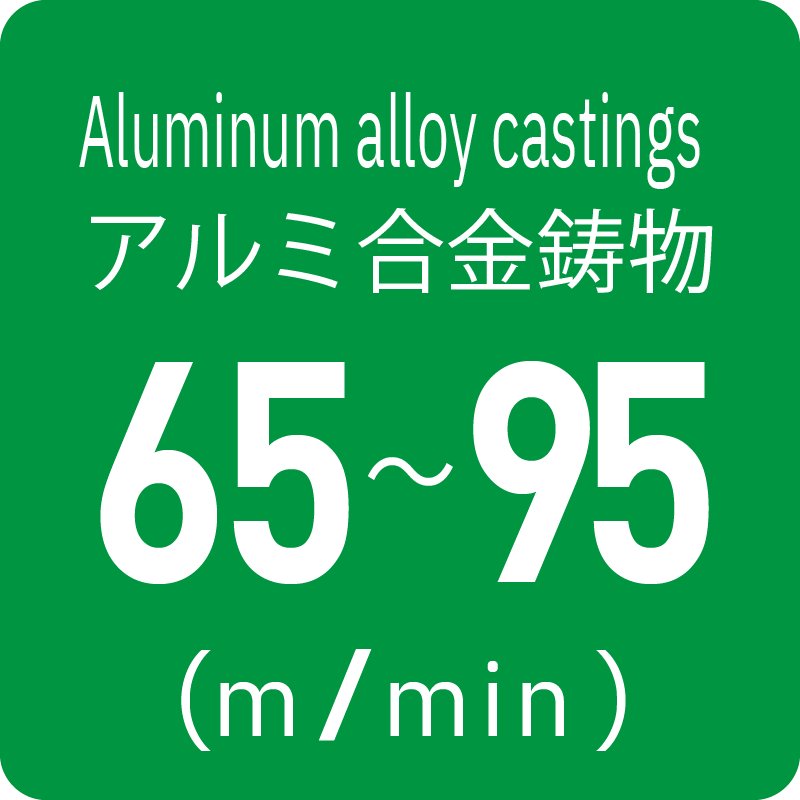

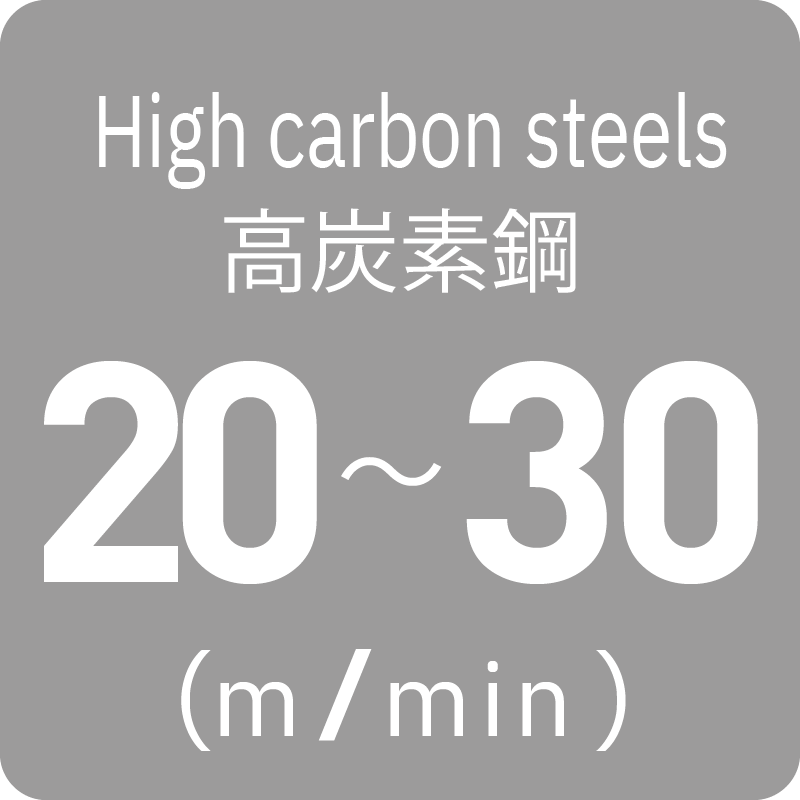

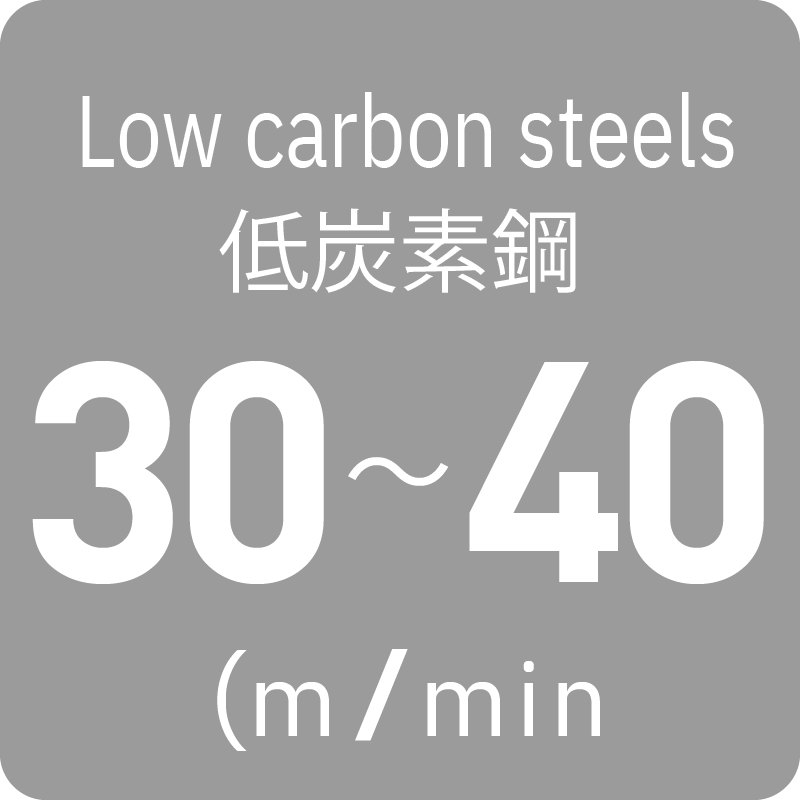

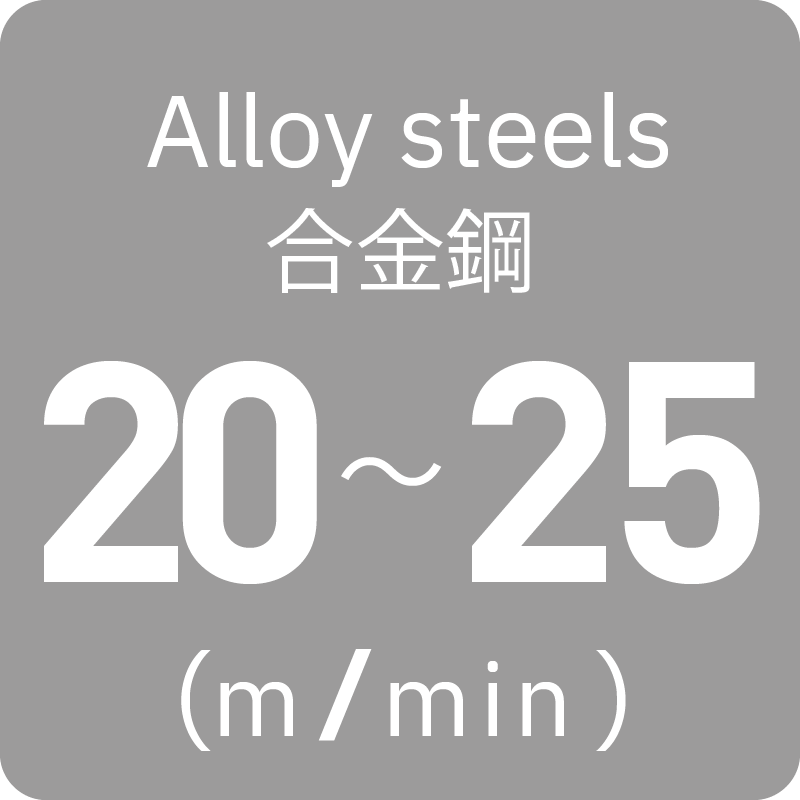

Cutting Speed depending on Materials
25〜35HRC
Segment：56
|

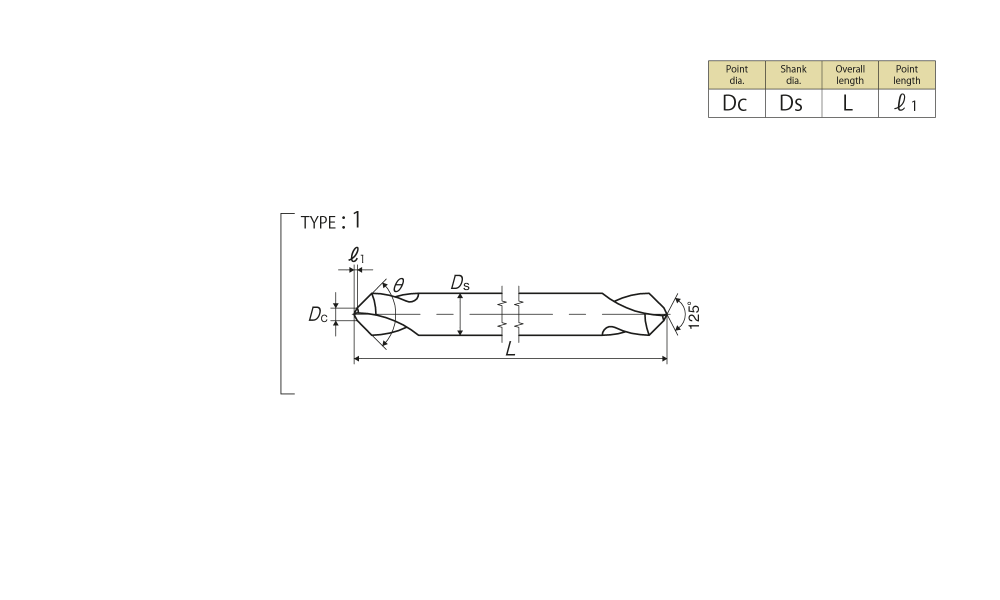

Size Ds ×Dc × θ |
Code |
Dc (mm) |
Ds (mm) |
L (mm) |
ℓ1 (mm) |
TYPE |
|
4 × 1 × 90ﾟ |
VPEL4.0Q |
1 |
4 |
100 |
0.26 |
1 |
|
6 × 2 × 90ﾟ |
VPEL6.0Q |
2 |
6 |
100 |
0.52 |
1 |
|
8 × 2.5 × 90ﾟ |
VPEL8.0Q |
2.5 |
8 |
100 |
0.65 |
1 |
|
8 × 2.5 × 90ﾟ |
VPEM8.0Q |
2.5 |
8 |
150 |
0.65 |
1 |
|
10 × 3 × 90ﾟ |
VPEL010Q |
3 |
10 |
100 |
0.78 |
1 |
|
10 × 3 × 90ﾟ |
VPEM010Q |
3 |
10 |
150 |
0.78 |
1 |
|
12 × 3.5 × 90ﾟ |
VPEL012Q |
3.5 |
12 |
100 |
0.91 |
1 |
|
12 × 3.5 × 90ﾟ |
VPEM012Q |
3.5 |
12 |
150 |
0.91 |
1 |
|
16 × 4 × 90ﾟ |
VPEM016Q |
4 |
16 |
150 |
1.04 |
1 |
|
20 × 5 × 90ﾟ |
VPEM020Q |
5 |
20 |
150 |
1.30 |
1 |
