PE-S | Point Drills 60° | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 481.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
PE-S

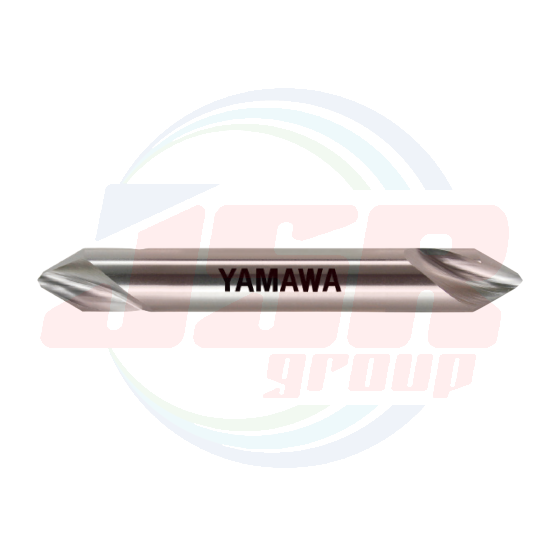

● PE-S is the point drill enabling positioning (125° edge angle) and chamfering (60°) simultaneously. High cutting accuracy is available owing to a good cutting-start due to 2 step flat design.
Specification

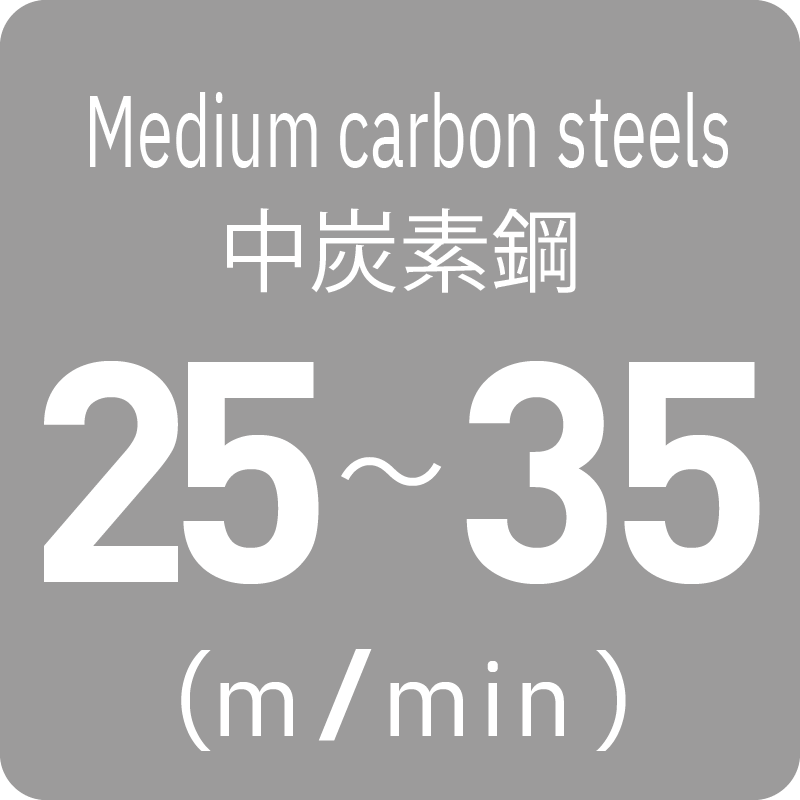

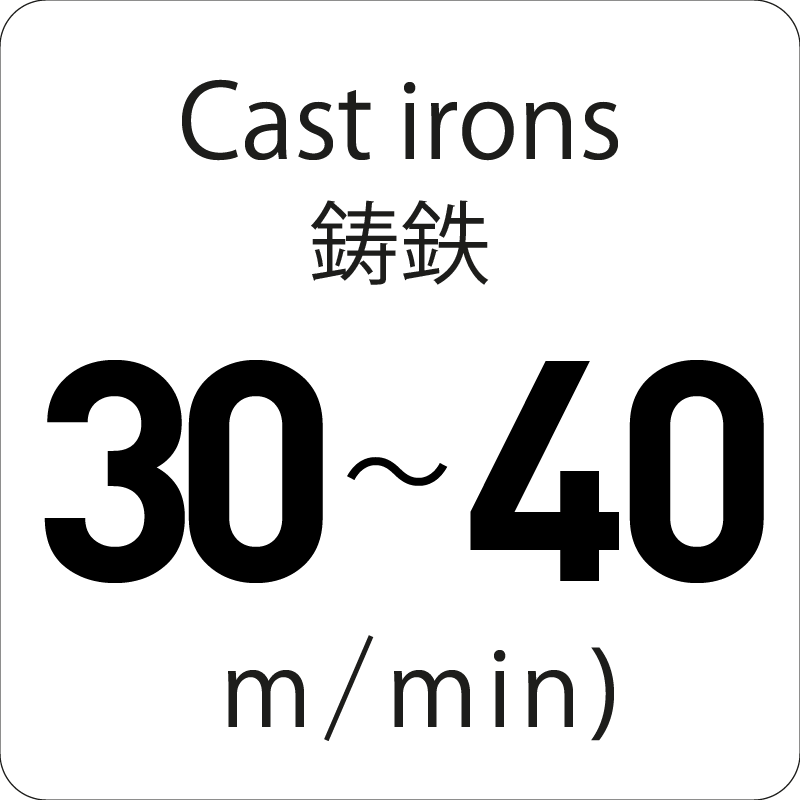

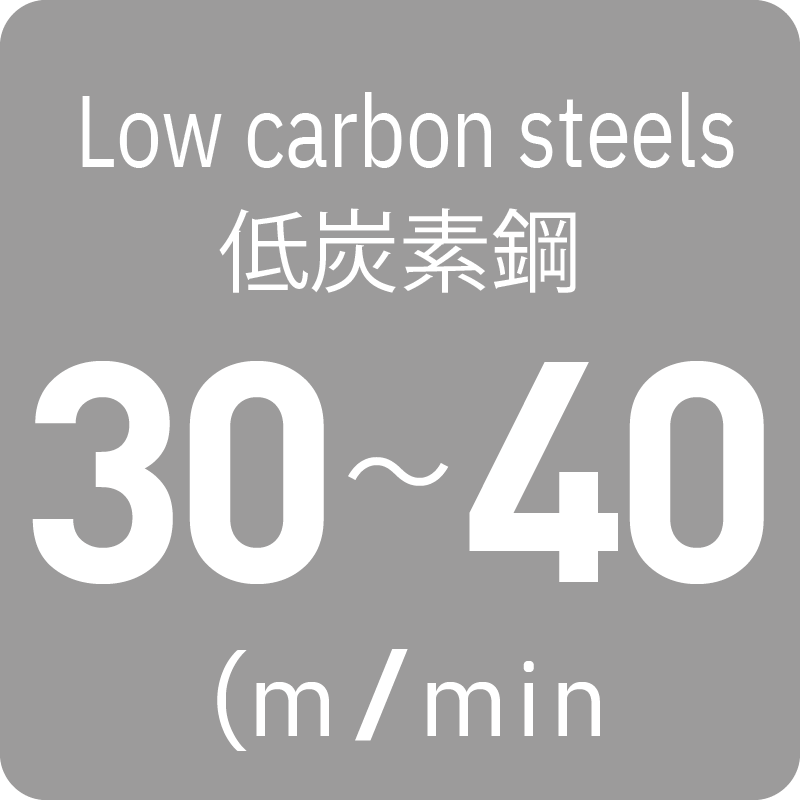

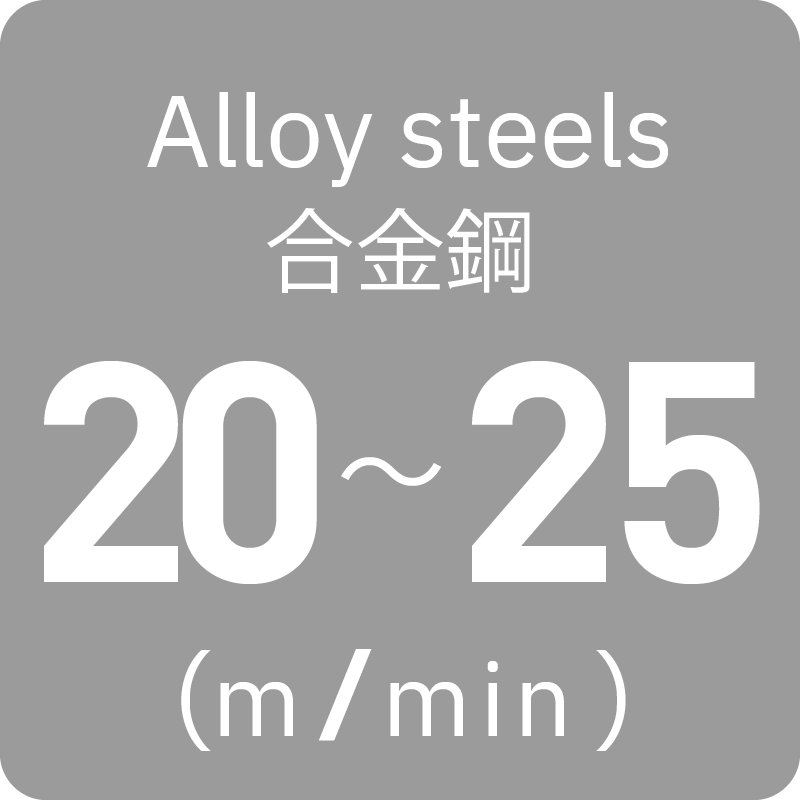

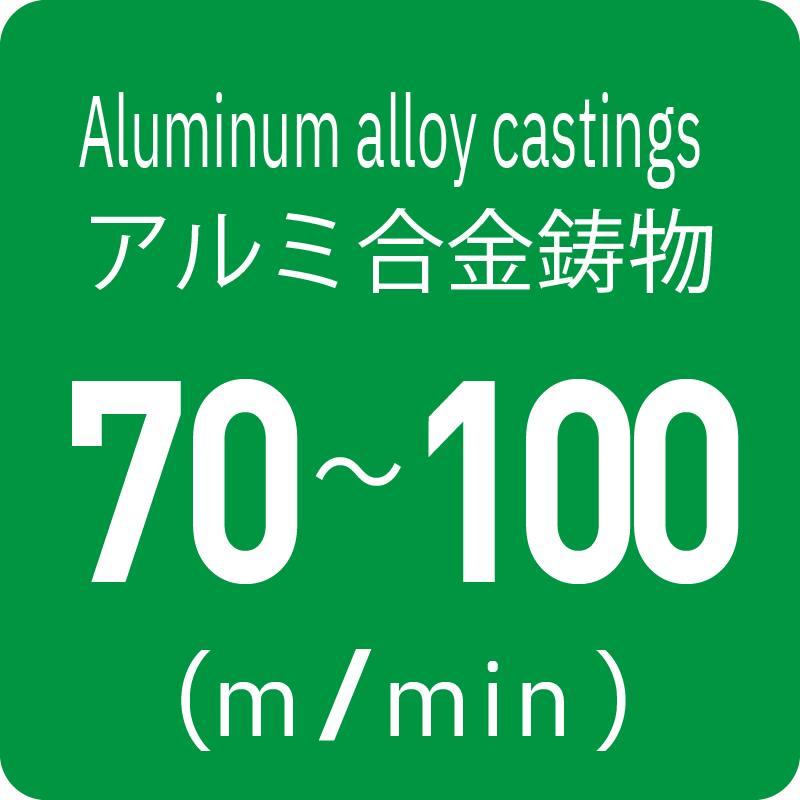

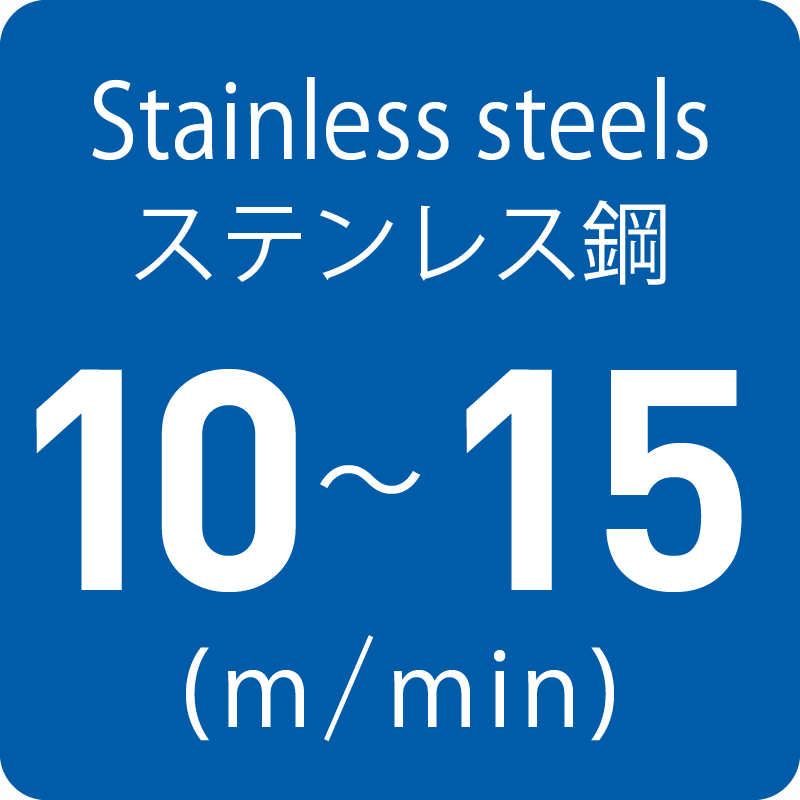

Cutting Speed depending on Materials
Segment：56
|

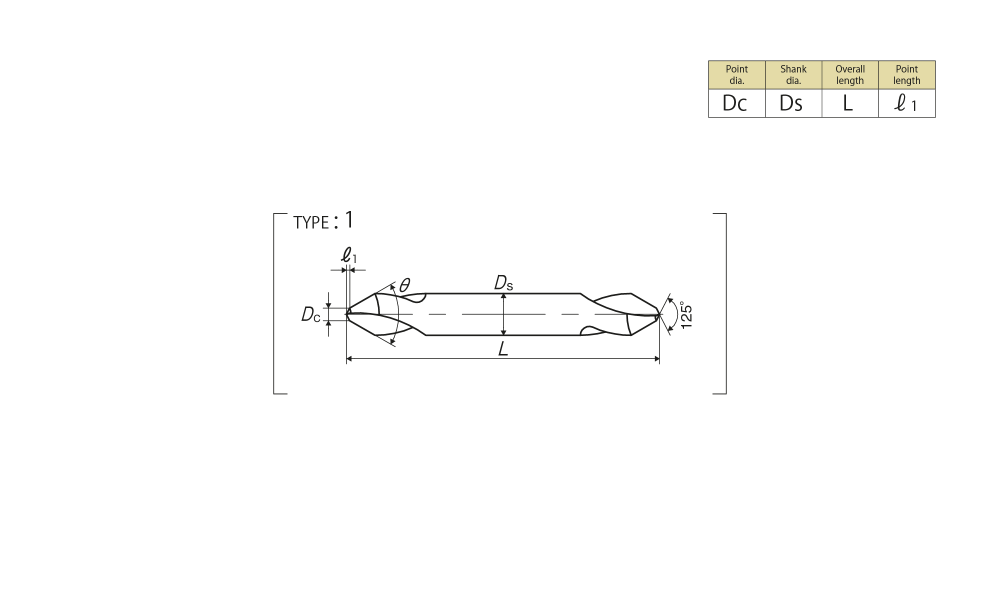

Size Ds ×Dc × θ |
Code |
Dc (mm) |
Ds (mm) |
L (mm) |
ℓ1 (mm) |
TYPE |
|
3 × 0.5 × 60゜ |
PE3.0S |
0.5 |
3 |
40 |
0.13 |
1 |
|
4 × 1 × 60゜ |
PE4.0S |
1 |
4 |
45 |
0.26 |
1 |
|
6 × 2 × 60゜ |
PE6.0S |
2 |
6 |
55 |
0.52 |
1 |
|
8 × 2.5 × 60゜ |
PE8.0S |
2.5 |
8 |
65 |
0.65 |
1 |
|
10 × 3 × 60゜ |
PE010S |
3 |
10 |
75 |
0.78 |
1 |
|
12 × 3.5 × 60゜ |
PE012S |
3.5 |
12 |
85 |
0.91 |
1 |
|
16 × 4 × 60゜ |
PE016S |
4 |
16 |
90 |
1.04 |
1 |
|
20 × 5 × 60゜ |
PE020S |
5 |
20 |
100 |
1.30 |
1 |
| แบรนด์สินค้า | YAMAWA |
|---|
