PE-S V 4X1X60º (VPE4.0S) | Point Drills 60°, Coated | YAMAWA
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 686.92
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
VPE4.0S
QTY:
5

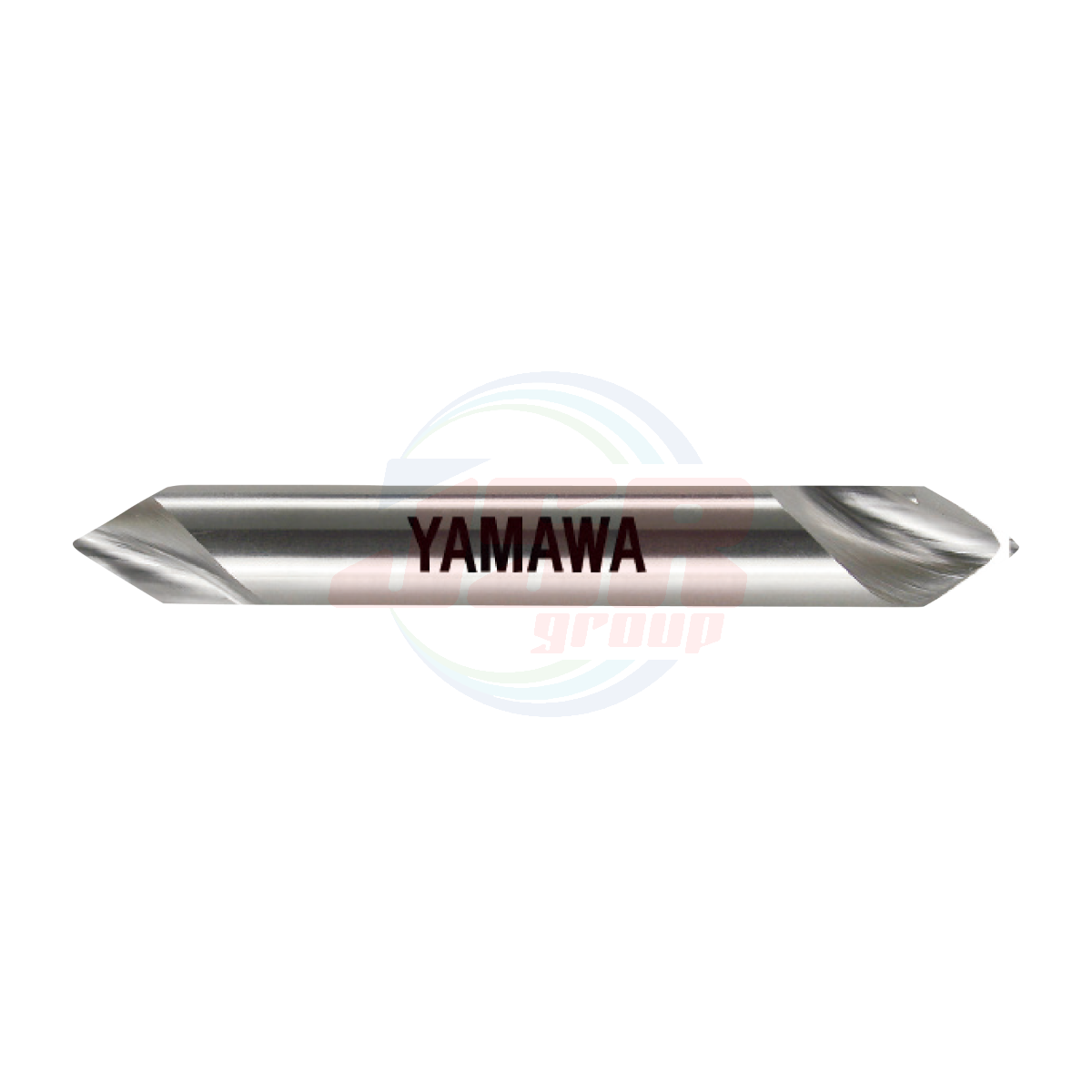

● PE-S V is the coated point drill enabling positioning (125° edge angle) and chamfering (60°) simultaneously. High cutting accuracy is available owing to a good cutting-start due to 2 step flat design. Optimum coating suitable for the cutting condition.
Specification
Cutting Speed depending on Materials
25〜35HRC
Segment：56
|
Size Ds ×Dc × θ |
Code |
Dc (mm) |
Ds (mm) |
L (mm) |
ℓ1 (mm) |
TYPE |
|
3 × 0.5 ×60゜ |
VPE3.0S |
0.5 |
3 |
40 |
0.13 |
1 |
|
4 × 1 ×60゜ |
VPE4.0S |
1 |
4 |
45 |
0.26 |
1 |
|
6 × 2 ×60゜ |
VPE6.0S |
2 |
6 |
55 |
0.52 |
1 |
|
8 × 2.5 ×60゜ |
VPE8.0S |
2.5 |
8 |
65 |
0.65 |
1 |
|
10 × 3 ×60゜ |
VPE010S |
3 |
10 |
75 |
0.78 |
1 |
|
12 × 3.5 ×60゜ |
VPE012S |
3.5 |
12 |
85 |
0.91 |
1 |
|
16 × 4 ×60゜ |
VPE016S |
4 |
16 |
90 |
1.04 |
1 |
|
20 × 5 ×60゜ |
VPE020S |
5 |
20 |
100 |
1.30 |
1 |
| แบรนด์สินค้า | YAMAWA |
|---|---|
| Order No. | 4X1X60º (VPE4.0S) |
| Model | PE-S V |
| Size | 4×1×60° |
| Overall length (L) | 45 |
| Shank dia. (Ds) | 4 |
