PE-SL V | Long Shank Point Drills 60°, Coated | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 1,732.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
PE-SL V
● PE-SL V is the point drill enabling positioning (125°edge angle) and chamfering (60°) simultaneously. High cutting accuracy is available owing to a good cutting-start due to 2 step flat design. Optimum coating suitable for the cutting condition.
Specification
Cutting Speed depending on Materials
25〜35HRC
Segment：56
|

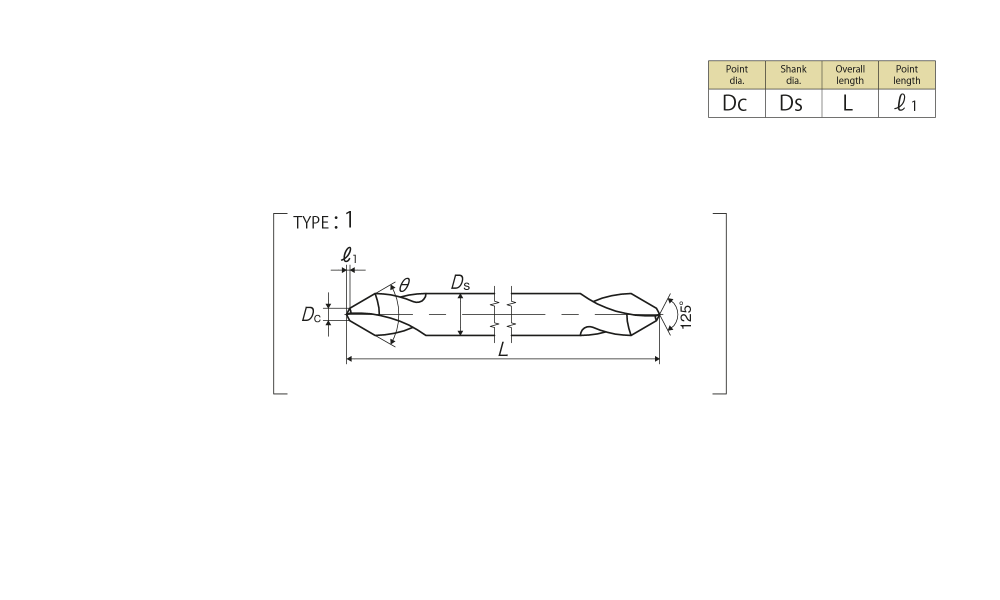

Size Ds ×Dc × θ |
Code |
Dc (mm) |
Ds (mm) |
L (mm) |
ℓ1 (mm) |
TYPE |
|
4 × 1 × 60º |
VPEL4.0S |
1 |
4 |
100 |
0.26 |
1 |
|
6 × 2 × 60º |
VPEL6.0S |
2 |
6 |
100 |
0.52 |
1 |
|
8 × 2.5 × 60º |
VPEL8.0S |
2.5 |
8 |
100 |
0.65 |
1 |
|
8 × 2.5 × 60º |
VPEM8.0S |
2.5 |
8 |
150 |
0.65 |
1 |
|
10 × 3 × 60º |
VPEL010S |
3 |
10 |
100 |
0.78 |
1 |
|
10 × 3 × 60º |
VPEM010S |
3 |
10 |
150 |
0.78 |
1 |
|
12 × 3.5 × 60º |
VPEL012S |
3.5 |
12 |
100 |
0.91 |
1 |
|
12 × 3.5 × 60º |
VPEM012S |
3.5 |
12 |
150 |
0.91 |
1 |
|
16 × 4 × 60º |
VPEM016S |
4 |
16 |
150 |
1.04 |
1 |
| แบรนด์สินค้า | YAMAWA |
|---|
