PF (Pipe Threads)

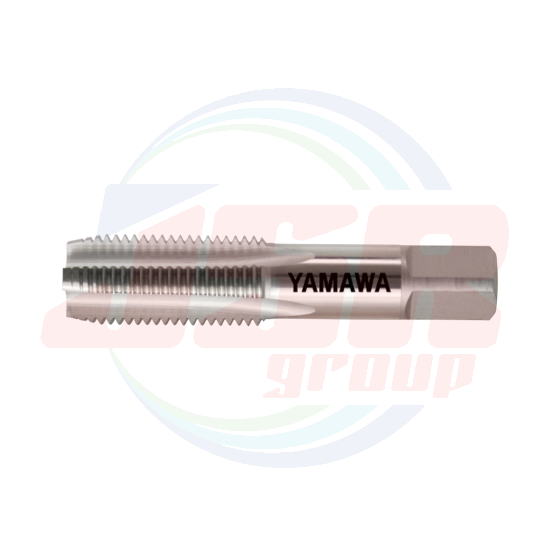

- The PF tap is a hand tap for parallel pipe threads and is used for products whose main purpose is to connect mechanical parts such as pipe parts. The PF internal thread is used for fitting with the PF external thread.

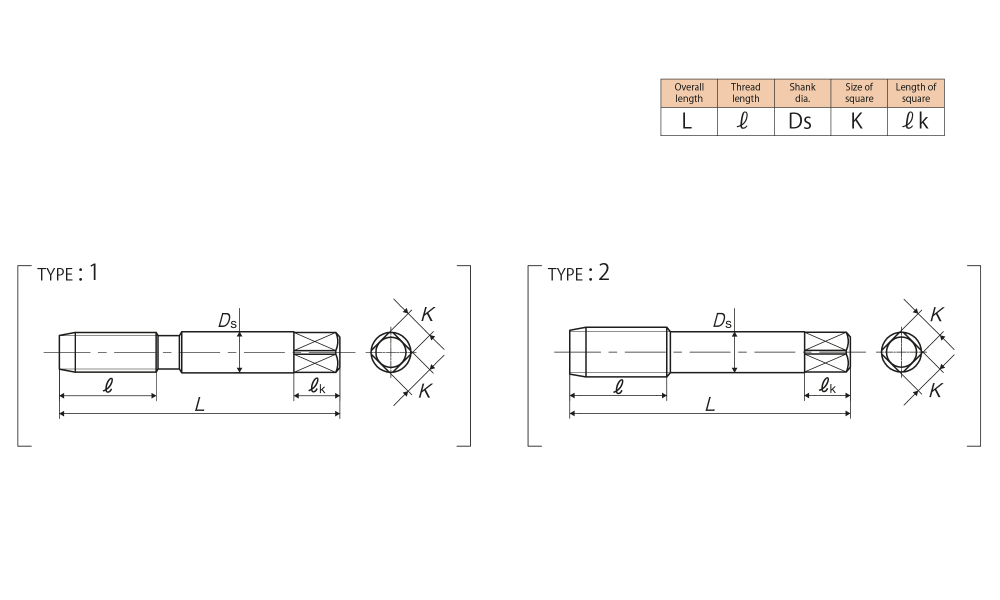

Specification
Tapping Speeds depending on Materials
Segment：1G
|
Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Pipe Threads |
|||||||||||
|
PF 1/16-28 |
Ⅱ |
TH2F01K-8 |
3.5P |
7.723 |
55 |
19 |
8 |
6 |
9 |
4 |
1 |
|
PF 1/8-28 |
Ⅱ |
TH2F02K |
3.5P |
9.728 |
55 |
19 |
8 |
6 |
9 |
4 |
2 |
|
PF 1/8-28 |
Ⅱ |
TH2F02K1 |
1.5P |
9.728 |
55 |
19 |
8 |
6 |
9 |
4 |
2 |
|
PF 1/4-19 |
Ⅱ |
TH2F04- |
3.5P |
13.157 |
62 |
28 |
11 |
9 |
12 |
4 |
2 |
|
PF 1/4-19 |
Ⅱ |
TH2F04-1 |
1.5P |
13.157 |
62 |
28 |
11 |
9 |
12 |
4 |
2 |
|
PF 3/8-19 |
Ⅱ |
TH2F06- |
3.5P |
16.662 |
65 |
28 |
14 |
11 |
14 |
4 |
2 |
|
PF 3/8-19 |
Ⅱ |
TH2F06-1 |
1.5P |
16.662 |
65 |
28 |
14 |
11 |
14 |
4 |
2 |
|
PF 1/2-14 |
Ⅱ |
TH2F08Q |
3.5P |
20.955 |
80 |
35 |
18 |
14 |
17 |
4 |
2 |
|
PF 1/2-14 |
Ⅱ |
TH2F08Q1 |
1.5P |
20.955 |
80 |
35 |
18 |
14 |
17 |
4 |
2 |
|
PF 5/8-14 |
Ⅱ |
TH2F10Q |
3.5P |
22.911 |
82 |
35 |
19 |
15 |
18 |
4 |
2 |
|
PF 3/4-14 |
Ⅱ |
TH2F12Q |
3.5P |
26.441 |
85 |
35 |
23 |
17 |
20 |
4 |
2 |
|
PF 3/4-14 |
Ⅱ |
TH2F12Q1 |
1.5P |
26.441 |
85 |
35 |
23 |
17 |
20 |
4 |
2 |
|
PF 7/8-14 |
Ⅱ |
TH2F14Q |
3.5P |
30.201 |
90 |
40 |
24 |
19 |
22 |
4 |
2 |
|
PF 1 -11 |
Ⅱ |
TH2F16U |
3.5P |
33.249 |
95 |
45 |
26 |
21 |
24 |
4 |
2 |
|
PF 1 -11 |
Ⅱ |
TH2F16U1 |
1.5P |
33.249 |
95 |
45 |
26 |
21 |
24 |
4 |
2 |
|
PF 1 1/8-11 |
Ⅱ |
TH2F18U |
3.5P |
37.897 |
100 |
45 |
28 |
21 |
24 |
4 |
2 |
|
PF 1 1/4-11 |
Ⅱ |
TH2F20U |
3.5P |
41.910 |
105 |
45 |
32 |
26 |
30 |
4 |
2 |
|
PF 1 1/4-11 |
Ⅱ |
TH2F20U1 |
1.5P |
41.910 |
105 |
45 |
32 |
26 |
30 |
4 |
2 |
|
PF 1 1/2-11 |
Ⅱ |
TH2F24U |
3.5P |
47.803 |
110 |
45 |
38 |
29 |
32 |
6 |
2 |
|
PF 1 1/2-11 |
Ⅱ |
TH2F24U1 |
1.5P |
47.803 |
110 |
45 |
38 |
29 |
32 |
6 |
2 |
|
PF 1 3/4-11 |
Ⅱ |
TH2F28U |
3.5P |
53.746 |
115 |
45 |
42 |
32 |
35 |
6 |
2 |
|
PF 1 3/4-11 |
Ⅱ |
TH2F28U1 |
1.5P |
53.746 |
115 |
45 |
42 |
32 |
35 |
6 |
2 |
|
PF 2 -11 |
Ⅱ |
TH2F32U |
3.5P |
59.614 |
120 |
50 |
46 |
35 |
38 |
6 |
2 |
|
PF 2 -11 |
Ⅱ |
TH2F32U1 |
1.5P |
59.614 |
120 |
50 |
46 |
35 |
38 |
6 |
2 |
|
PF 2 1/2-11 |
Ⅱ |
TH2F40U |
3.5P |
75.184 |
145 |
65 |
55 |
41 |
44 |
8 |
2 |
|
PF 3 -11 |
Ⅱ |
TH2F48U |
3.5P |
87.884 |
155 |
65 |
65 |
50 |
52 |
8 |
2 |
|
PF 3 -11 |
Ⅱ |
TH2F48U1 |
1.5P |
87.884 |
155 |
65 |
65 |
50 |
52 |
8 |
2 |
|
PF 3 1/2-11 |
Ⅱ |
TH2F56U |
3.5P |
100.330 |
165 |
68 |
70 |
54 |
58 |
8 |
2 |
|
PF 4 -11 |
Ⅱ |
TH2F64U |
3.5P |
113.030 |
170 |
70 |
75 |
58 |
62 |
10 |
2 |
| แบรนด์สินค้า | YAMAWA |
|---|
