PH5000 | PH Mini Holder | NOGA
THB 0.00
พร้อมส่ง
SKU
PH5000
PH Mini Holder – PH5000
– 20kg (44lbs) round permanent magnetic base.
– Universal Swivel Clamp for all dial and test indicators.
– Strong arm lock by using the unique 3-point system.
– Easy to set up gauges into required position- Black finished arms.

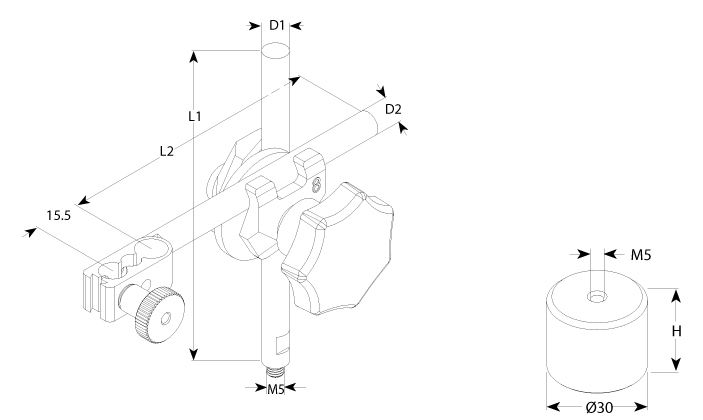

| Order No. | Weight (kg) |
Arm length and diameter | Magnet | 3 points clamp Post Order No. |
|||
| Post Order No. Dia. (D1) x length (L1) |
Arm Dia. (D2) x length (L2) |
Force (N) |
Dimension | ||||
| ø | H | ||||||
| PH5000 | 0.360 | ø8 x 110 | ø8 x 110 | 200 | 30 | 25 | PH1307 |
| แบรนด์สินค้า | NOGA |
|---|
