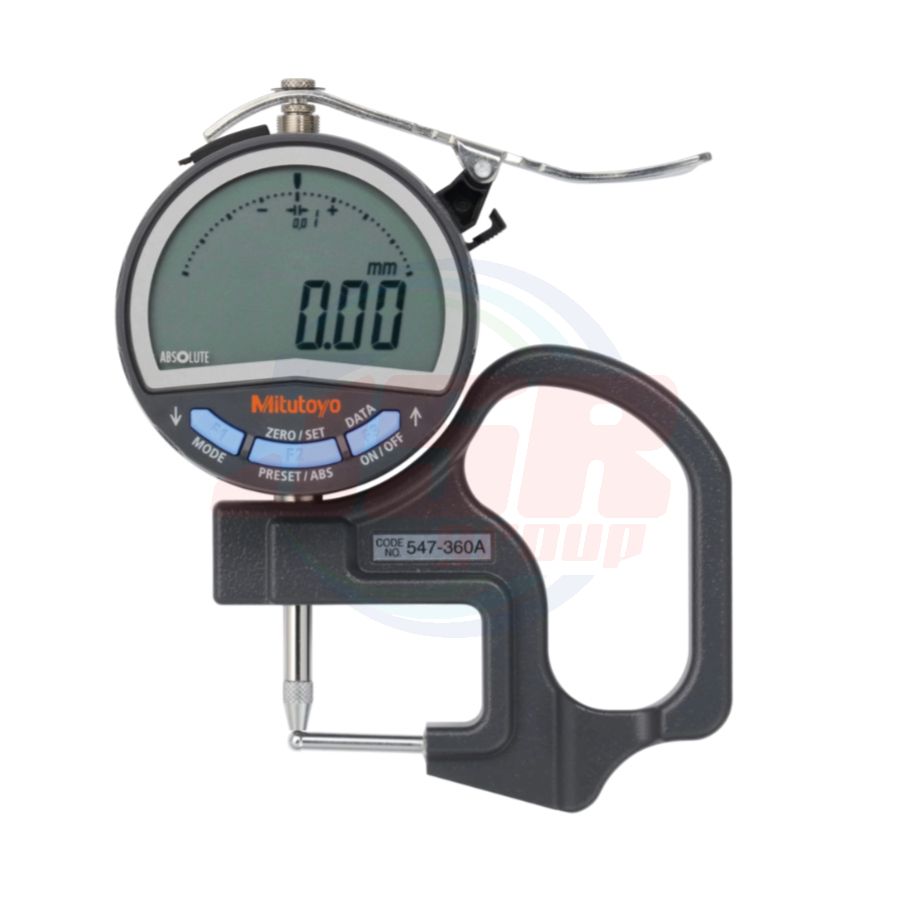

Pipe gage measurement
• Pipe wall thickness, thickness of curved boards can be measured. (Contact point, Anvil: hardened steel)
Metric
| Order No. | Resolution (mm) |
Range (mm) |
Measuring depth (mm) |
Contact point, Anvil (mm) |
Accuracy (μm) |
Measuring force (N) |
Mass (g) |
Remarks |

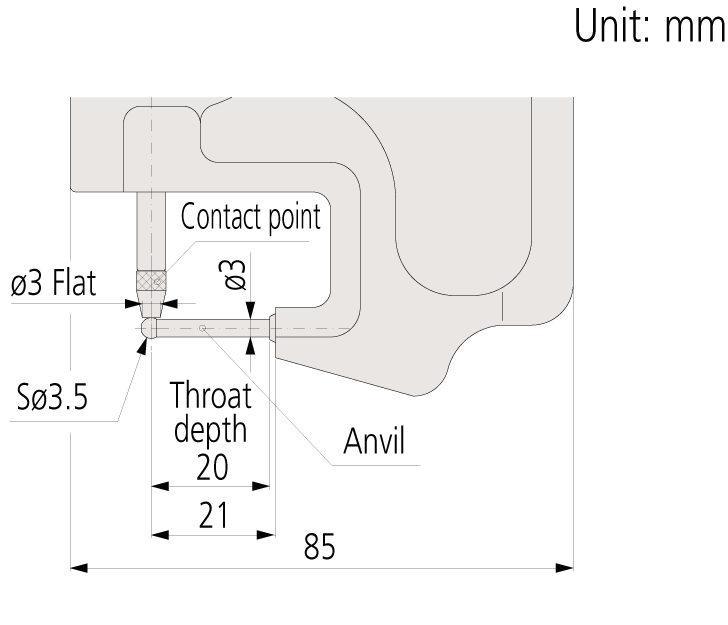

| 547-360A | 0.01 | 0 - 10 | 20 | ø3 Flat (Contact point) ø3.5 Ball (Anvil) |
±20 | 1.5 or less | 230 | Pipe gage |
Inch / Metric
| Order No. | Resolution |
Range |
Measuring depth | Contact point, Anvil (mm) |
Accuracy | Measuring force (N) |
Mass (g) |
Remarks |
| 547-361A | 0.0005 in/0.01 mm | 0 - 0.4 | 20 mm (0.79 in) | ø3 mm (ø0.12 in) Flat (Contact point) ø3.5 mm (ø0.14 in) Ball (Anvil) |
±0.001 in/±20 μm | 1.5 or less | 230 | Pipe gage |
| 547-561S | 0.0005 in/0.01 mm | 0 - 0.47* | 20 mm (0.79 in) | ø3 mm (ø0.12 in) Flat (Contact point) ø3.5 mm (ø0.14 in) Ball (Anvil) |
±0.001 in/±20 μm | 1.5 or less | 215 | Pipe gage\* Using ID-SX Digimatic indicator. |
* Using ID-SX Digimatic indicator.
