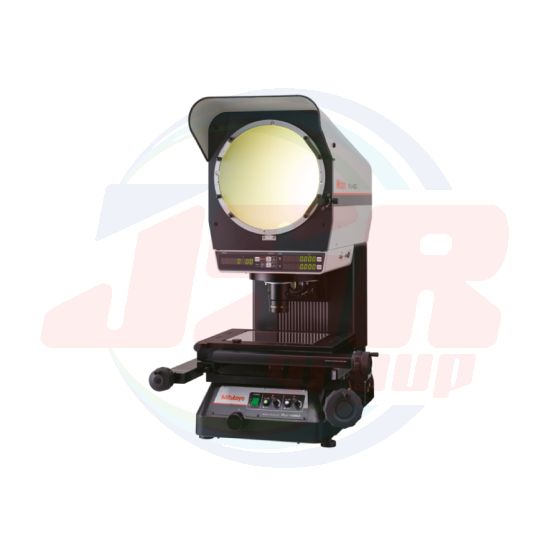

High-end model of the profile projector series that realizes the ultimate in bright, sharp projected images. High-rigidity main unit equipped with a linear scale for realizing high-accuracy measurements.
Bayonet mount (registered utility model), 3-mount turret
Magnification accuracy*¹
Contour illumination
±0.1 % or less of nominal magnification
Surface illumination
±0.15 % or less of nominal magnification
Maximum workpiece height
Refer to the projection lenses L1 right
Contour illumination
24 V, 150 W 50h Halogen bulb (512305) Zoom Telecentric, Heat-absorbing filter Cooling fan, Non-stepped brightness adjustment Soft lighting function (reduced inrush current) Lamp mount switching system
Surface illumination
24 V, 150 W, 50h Halogen bulb (512305) Vertical / oblique illumination with an adjustable condenser lens Heat-absorbing filter, cooling fan, non-stepped brightness adjustment, soft lighting function
Focusing
Projection screen head driving
Resolution for X/Y counter
0.001 mm or 0.0001 in/0.001 mm* * You can specify 0.5 μm or 0.1 μm resolution. (Available on request.)
Power supply
ON/OFF switch, 100 to 240 V AC (unneeded switching voltage), GND terminal, 50/60 Hz
Mass
176 to 212 kg
Power consumption
Approx. 420 W
*1 Our magnification accuracy standard only checks contour illumination (that it is ±0.1 % or less). (If the magnification accuracy under contour illumination is a permissible value, that under surface illumination will also be guaranteed to be within ±0.15 % of our standard.)
Stages
XY range
100×100 mm
200×100 mm
200×170 mm
300×170 mm
PJ-H30 main unit
Model

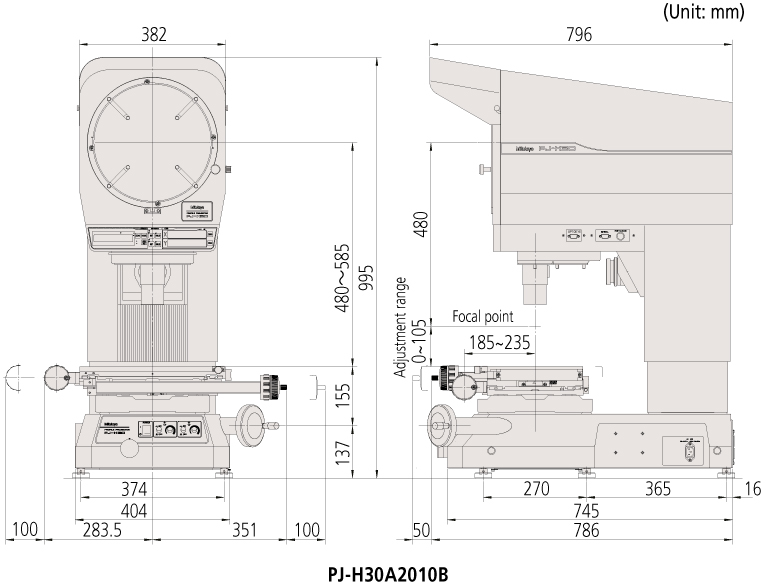

PJ-H30A1010B
PJ-H30A2010B
PJ-H30A2017B
PJ-H30A3017B
Order No.
303-716-13A
303-717-13A
303-718-13A
303-719-13A
Unit system for the counter unit
mm/in
mm/in
mm/in
mm/in
Measuring unit
High-accuracy digital scale
Quick-release mechanism
X and Y axes standard
Stage size (WxD)
300×240 mm
350×280 mm
410×342 mm
510×342 mm
Effective size of stage glass (WxD)
180×150 mm
250×150 mm
270×240 mm
370×240 mm
Stage glass thickness
6 mm
6 mm
8 mm
8 mm
Stage glass
380412
382762
12BAD363
12BAD330
Swivel adjustment range
±3 ˚ (right)
±5 ˚ (left)
Maximum loading
10 kg
20 kg
Measuring accuracy
± (3+0.02L) µm L: Measured length (mm) Note: The measurement method conforms to JIS B 7184.
