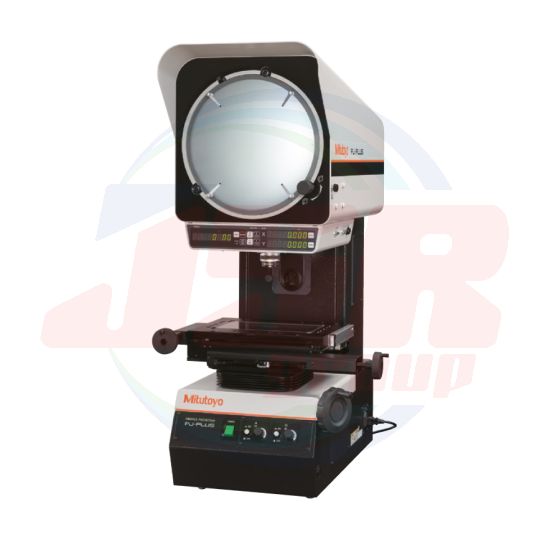

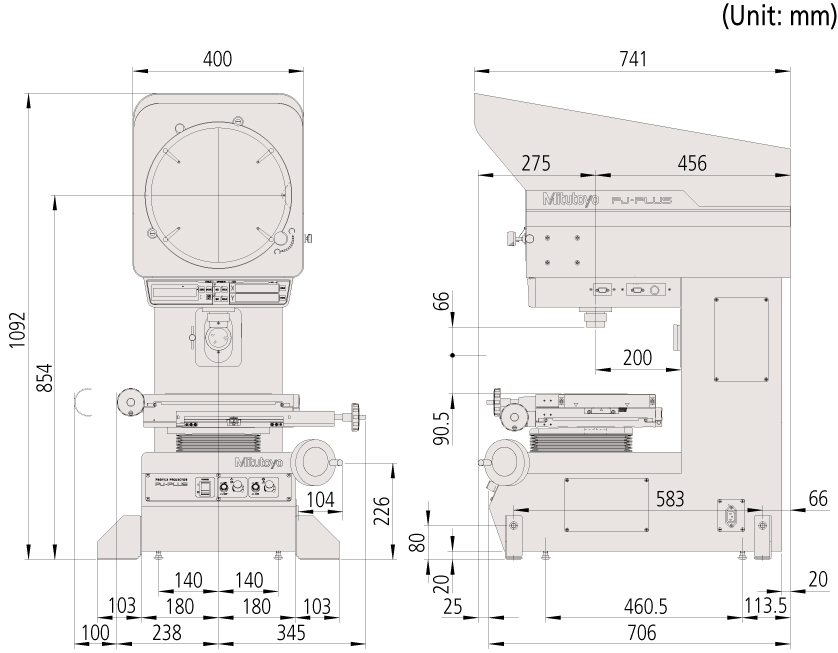

The profile projector that “can be operated intuitively” and also has excellent durability and energy saving performance thanks to the adoption of an “LED illumination source” and “fan-less cooling system”.
Provides stable dimension and angle measurements in harsher environments, such as manufacturing and processing lines, than can be handled by conventional models.
Digital counter (ABS / INC mode switching), Zero Set
Resolution
1° or 0.01° (switchable)
Cross-hairs
90° solid lines
Projection lens
Magnification
10X (Standard accessory), 20X, 50X, 100X
Lens mount
External half-reflecting mirror for surface illumination (only for 10X, 20X)
Magnification accuracy*
Contour illumination
±0.1 % or less of nominal magnification
Surface illumination
±0.15 % or less of nominal magnification
Maximum workpiece height
Refer to the projection lenses L1 right
Contour illumination
White LED light source, Telecentric, Variable brightness adjustment
Surface illumination
White LED light source, With an adjustable condenser lens, Variable brightness adjustment
Resolution for X / Y counter
0.001 mm or 0.0001 in / 0.001 mm
Power supply
Switching power supply 100 V to 240 V AC, 50 / 60 Hz
Mass
114 kg (PJ-P1010A), 118 kg (PJ-P2010A)
Power consumption
60 W
* Our magnification accuracy standard only checks contour illumination (that it is ±0.1 % or less). (If the magnification accuracy under contour illumination is a permissible value, that under surface illumination is also guaranteed to be within ±0.15 % of our standard.)
