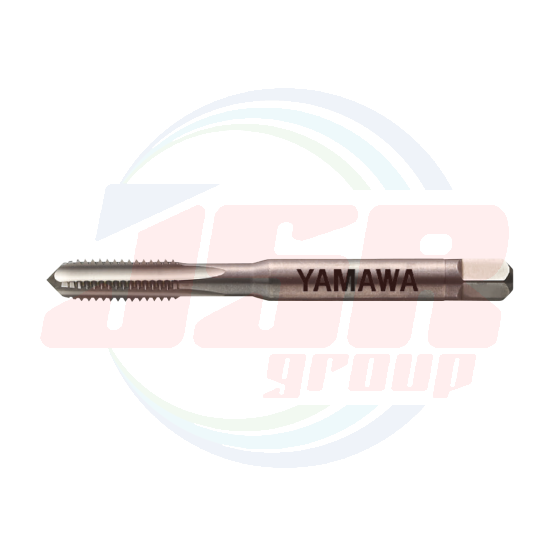

PL1 | Hand Taps for Thermosetting | YAMAWA
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 469.73
พร้อมส่ง
SKU
PL1
Product Features
- The PL1 is a tap for threading thermosetting resin that is exceptionally difficult to machine among the synthetic resin.
These plastics have low thermal conductivity and concentrate the heat at the cutting edge. Tool abrasion is severe. The material
tends to shrink when cutting an internal thread. The PL1 tap is designed to cut slightly oversize to allow for the shrinkage.
A nitriding treatment is applied for better tool life.

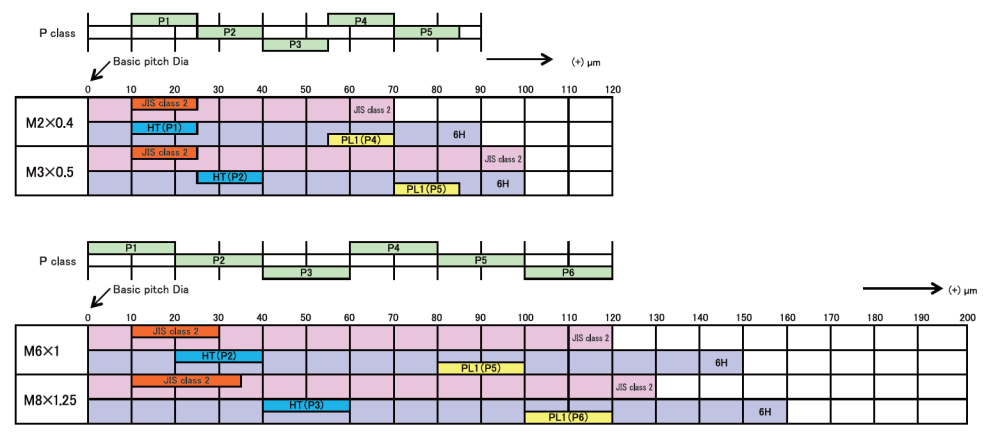

Comparison of accuracy between a HT and a PL1

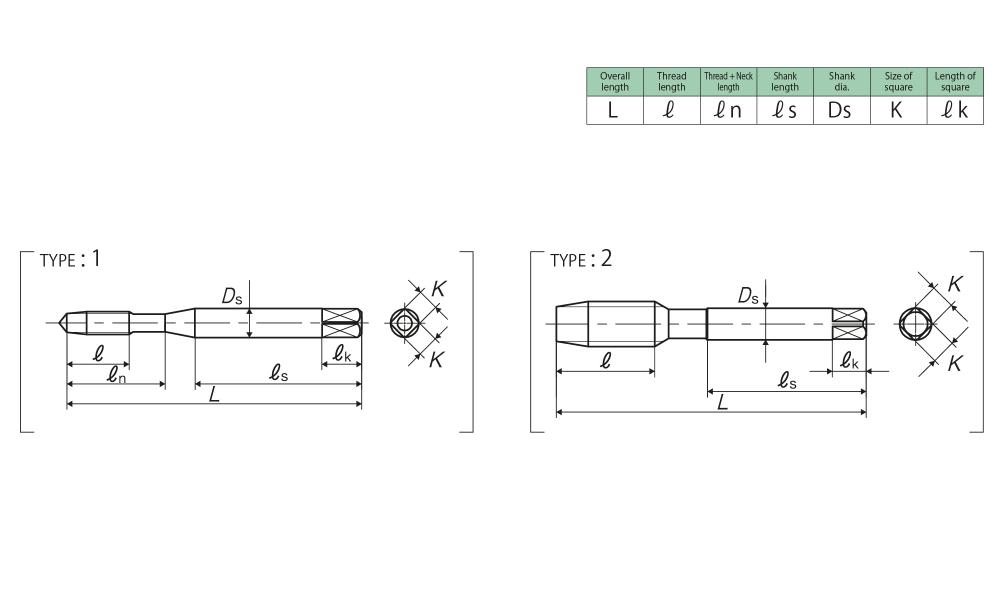

Specification
Tapping Speeds depending on Materials
Segment：1A
|
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Metric Threads |
||||||||||||
|
M2×0.4 |
P4 |
TPLM2.0E3 |
3P |
42 |
7.2 |
12 |
27 |
3 |
2.5 |
5 |
3 |
1 |
|
M2.3×0.4 |
P4 |
TPLM2.3E3 |
3P |
42 |
7.2 |
12 |
27 |
3 |
2.5 |
5 |
3 |
1 |
|
M2.5×0.45 |
P4 |
TPLM2.5F3 |
3P |
46 |
8.1 |
14 |
29 |
3 |
2.5 |
5 |
3 |
1 |
|
M2.6×0.45 |
P4 |
TPLM2.6F3 |
3P |
46 |
8.1 |
14 |
29 |
3 |
2.5 |
5 |
3 |
1 |
|
M3×0.5 |
P5 |
TPLM3.0G3 |
3P |
46 |
9 |
14 |
26 |
4 |
3.2 |
6 |
4 |
1 |
|
M3.5×0.6 |
P5 |
TPLM3.5H3 |
3P |
52 |
11 |
16 |
29 |
5 |
4 |
7 |
4 |
1 |
|
M4×0.7 |
P5 |
TPLM4.0I3 |
3P |
52 |
11 |
17 |
29 |
5 |
4 |
7 |
4 |
1 |
|
M5×0.8 |
P5 |
TPLM5.0K3 |
3P |
60 |
13 |
22 |
33 |
5.5 |
4.5 |
7 |
4 |
1 |
|
M6×1 |
P5 |
TPLM6.0M3 |
3P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
4 |
1 |
|
M8×1.25 |
P6 |
TPLM8.0N3 |
3P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
4 |
2 |
| แบรนด์สินค้า | YAMAWA |
|---|
